    Cat 6 SF/UTP 24AWG 4P/8P

    i

    Applications

    These Cat6 SF/UTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class E applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 250MHz.

    Standards

    EN 50288

    ISO 11801

    IEC 61156-5

    IEC 60332-1

    IEC 60754-1/2

    IEC 61034

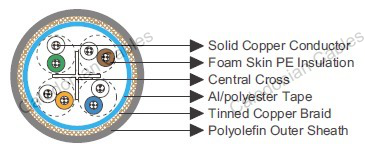

    Construction

    Central Cross

    Conductors : Solid bare copper conductor.

    Insulation : Foam skin PE.

    Twinning : Two coloured insulated conductors twisted together to form a pair.

    Overall Screen1 : Al/polyester tape.

    Overall screen2 : Tinned copper wire braid.

    Outer Sheath : Polyolefin.

    Core Identification

    Pair 1 White, Blue
    Pair 2 White Orange
    Pair 3 White, Green
    Pair 4 White, Brown

    Electrical Properties

    Minimum Insulation Resistance MΩ.km 1000
    Mutual Capacitance nF/km 56
    Characteristic Impedance @1-100MHz Ω 100 ± 15
    Nominal Velocity of Propagation % 67
    Maximum Propagation Delay ns/100 m 537.6
    Maximum Delay Skew ns/100 m 45
    Coupling Attenuation @30MHz dB 75

    Nominal Transmission Characteristics @20℃

    F Attenuation NEXT PS-NEXT ACR ELFEXT PS-ELFEXT Return Loss
    MHz dB/100m dB dB dB/100m dB/100m dB/100m dB
    1 2.1 80.3 77.3 78.2 71.0 68.0 21.5
    4 3.8 71.3 68.3 67.4 59.0 56.0 24.5
    10 6.0 65.3 62.3 59.3 51.0 48.0 26.5
    16 7.6 62.2 59.2 54.6 46.9 43.9 26.5
    20 8.5 60.8 57.8 52.3 45.0 42.0 26.5
    31.25 10.7 57.9 54.9 47.1 41.1 38.1 25.1
    62.50 15.5 53.4 50.4 37.9 35.1 32.1 23.0
    100 19.9 50.3 47.3 30.4 31.0 28.0 21.6
    155 25.3 47.4 44.4 22.1 27.2 24.2 20.3
    200 29.1 45.8 42.8 16.6 25.0 22.0 19.5
    250 33.0 44.3 41.3 11.3 23.0 20.0 18.8

    Mechanical and Thermal Properties

    Bending Radius : 8×OD (during installation); 4×OD (fixed installed)

    Temperature Range : -20℃ ~ +60℃

    Dimensions and Weight

    Part No. Construction No. of elements × No. of cores in element × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MLN-SF/UTPCAT64P24 4×2×24AWG 0.31 1.2 7.6 60
    MLN-SF/UTPCAT68P24 2×(4×2×24AWG) 0.31 1.2 15.2×7.6 120
