    CAN BUS CABLES 120Ω

    Application

    These cables are dedicated to the shipbuilding industry.

    Standards

    IEC 60092-350/352/353/360/370/376

    IEC 60332-1-2

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

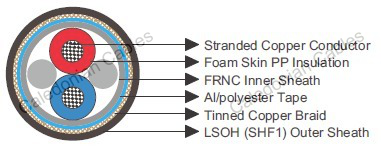

    Construction

    Conductors : Stranded tinned copper 21AWG.

    Insulation : Foam skin PP.

    Inner Sheath : Thermoplastic copolymer (FRNC).

    Overall Screen1 : Aluminium/polyester tape.

    Overall Screen2 : Tinned copper braid.

    Outer Sheath : LSOH (SHF1).

    Core Identification

    Pair 1 : Blue, Red

    Pair 2 : Brown, Green

    Electrical Characteristics

    Characteristic Impedance Ω 120 ± 18
    Mutual Capacitance @1KHz nF/km 36
    Insulation Resistance GΩ.km 5
        1 pair 2 pair
    Attenuation @0.1MHz dB/100m 0.65 0.3
    Attenuation @1MHz dB/100m 1.9 1.1
    Attenuation @5MHz dB/100m 4.3 2.8
    Attenuation @10MHz dB/100m 8.1 3.9
    Attenuation @20MHz dB/100m 10.5 5.7

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 10×OD

    Temperature Range : -30℃ ~ +80℃

    Dimensions and Weight

    Part No. Construction No. of elements × No. of cores in element × Cross section Core Diameter Nominal Overall Diameter Nominal Weight
      mm² mm mm kg/km
    MLN-09YSH(ST)CH-1×2×21A 1×2×21 AWG 2.4 7.7 79
    MLN-09YSH(ST)CH-2×2×21A 2×2×21 AWG 2.2 8.4 90
