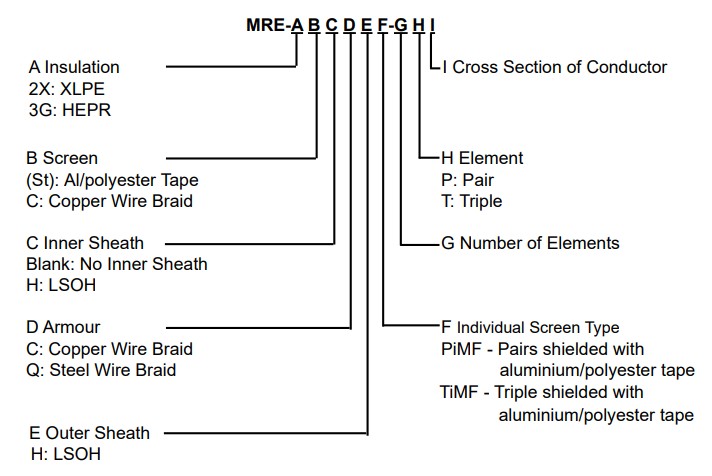

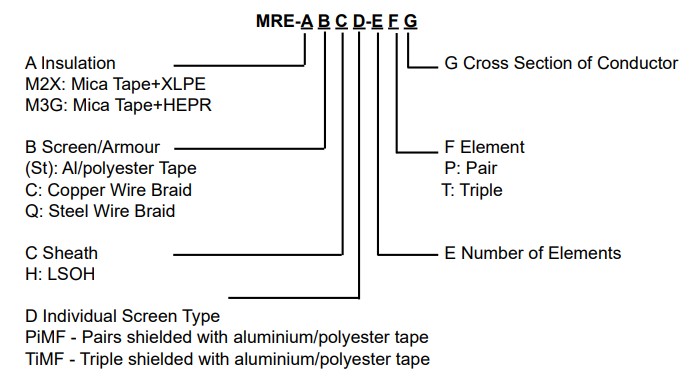

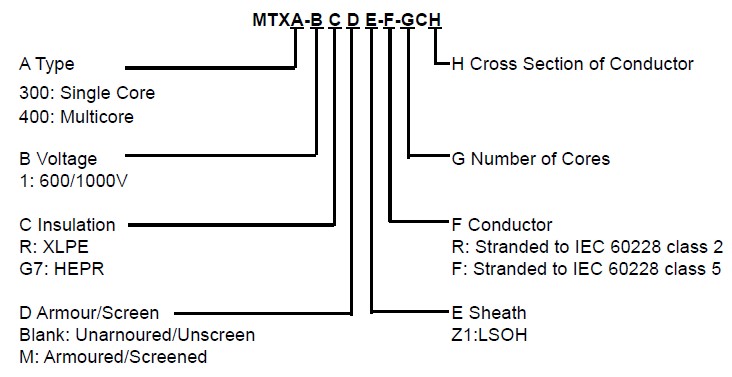

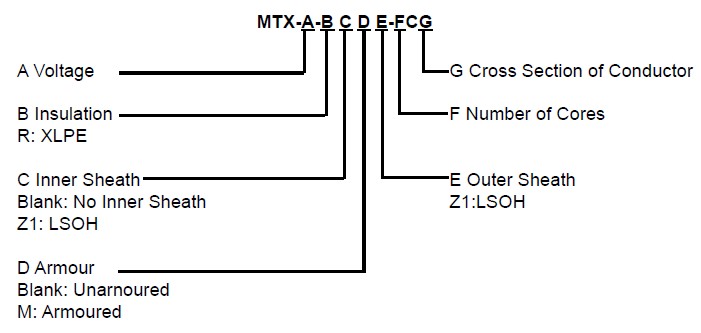

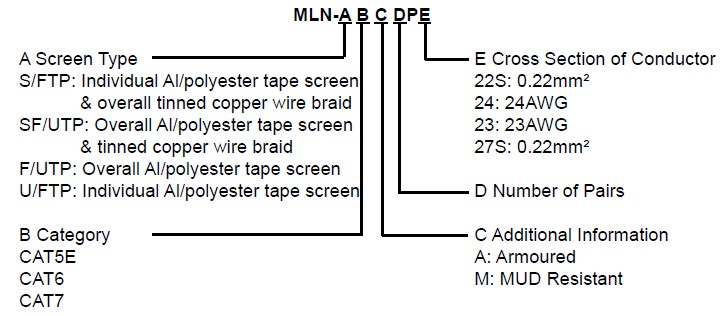

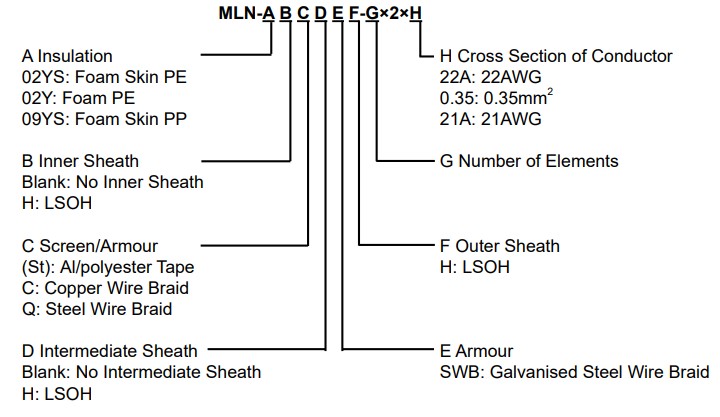

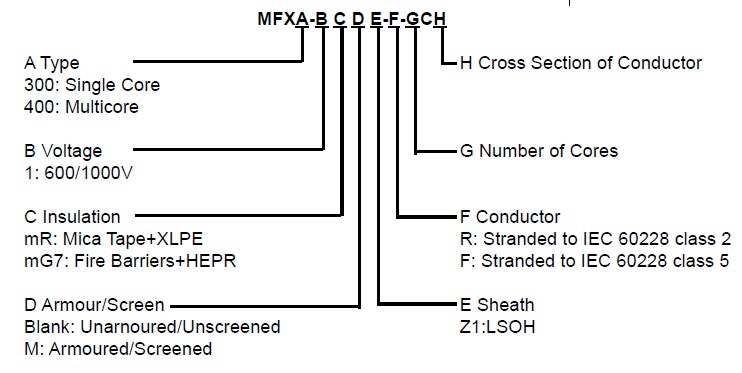

Caledonian Order Code

MariTox Marine Flame Retardant Medium Voltage Cables

MariTox Marine Flame Retardant Power & Control Cables

MariFlex Marine Fire Resistant Power & Control Cables

MariSig Flame Retardant Instrumentation & Control Cables

MariSig Fire Resistant Instrumentation & Control Cables

MariLan Marine Lan Data & Communication Cables

LAN CABLE

COAXIAL CABLE

BUS CABLE

OPTICAL FIBER CABLE

MLN-BTA-X-N-H-F-H-CD-A

Semi-tight buffered (CD) breakout cable (BT) with halogen free & flame-retardant subcable sheath (H), FRP central member (F), SHF1 sheath (H) and aramid strain relief elements.

MLN-MTA-X-N-H-F-H-CD/VT-A

Semi tight buffered (CD) or tight buffered (VT) distribution cable (MT) with halogen free& flame-retardant subcable sheath (H), FRP central member (F), SHF1 sheath (H) and aramid strain relief elements.

MLN-MTA-X-N-H-VT-G

Tight buffered (VT) distribution cable (MT) with LSOH & FR compound sheath (H) and fiberglass yarn reinforcing elements (G).

MLN-CLA-X-N-H-J-G

Central loose tube cable (CL) with water blocking gel in tubes (J), LSOH & FR compound sheath (H) and fiberglass yarn reinforcing elements (G).

MLN-FCLA-X-N-H-J

Fire resistant (F) central loose tube cable (CL) with water blocking gel in tubes (J) and SHF1 sheath (H).

X : Fiber type

0=Fiber and copper conductors in cable 4=50/125 multi-mode fiber (OM3)

5=50/125 multi-mode fiber (OM2)

6=50/125 multi-mode fiber (OM1)

7=NZDS SM fiber per G.656.

8=NZDS SM fiber per G.655.

9=Standard SM fiber per G.652.D).

N : No. of Fibers.
