UKOOA TYPE KH/TYPE KK 150/250V Flame retardant Cables

Application and Description

These cables are designed for fixed installation for control and lighting in both and safe areas, emergency and critical offshore applications where cable protection is required.

Standards

• BS 6883/BS 7917/UKOOA
• IEC 60332-3-22 CAT. A
• IEC 60332-1
• IEC 60754-1 & IEC 60754-2
• IEC 61034-1 & IEC 61034-2

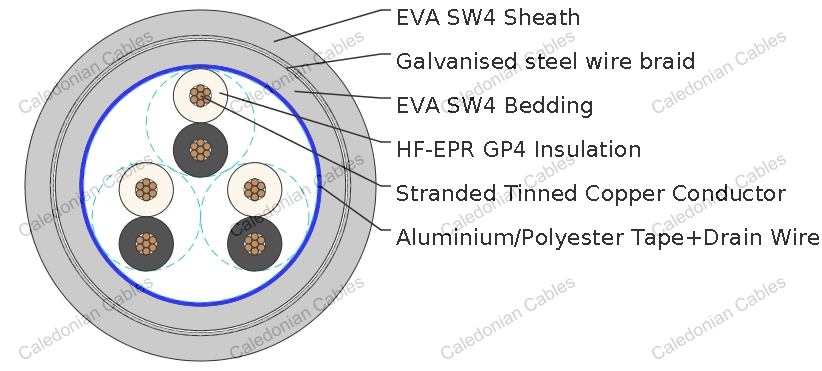

Construction

• Conductor: Stranded class 2 or flexible class 5 tinned annealed copper conductors to BS 6360/IEC 60228.
• Insulation: EPR complying with BS7655 GP4.
• Drain Wire: Tinned copper drain wire.
• Collective Screen: Aluminium mylar tape screen.
• Bedding: EVA - SW4 compound complying with BS 7655.
• Armour: Galvanised steel wire braid to BS 6883.
• Outer Sheath: EVA - SW4 compound complying with BS 7655 (TYPE KG: Blue; TYPE KJ: Grey).

Dimensions and Weight
