These cables are designed for fixed installation for control and lighting in both and safe areas, emergency and critical offshore applications where cable protection is required.
BS 6883/BS 7917/UKOOA
IEC 60331-21
IEC 60332-3-22 CAT. A
IEC 60332-1
IEC 60754-1 & IEC 60754-2
IEC 61034-1 & IEC 61034-2

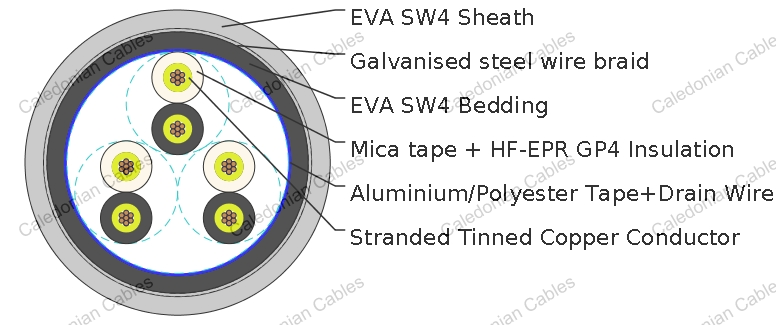

Conductor : Stranded class 2 or flexible class 5 tinned annealed copper conductors to BS 6360/IEC 60228.
Fire Protection : Mica glass tape.
Insulation : EPR complying with BS7655 GP4.
Drain Wire : Tinned copper drain wire.
Collective Screen : Aluminium mylar tape screen.
Bedding : EVA - SW4 compound complying with BS 7655.
Armour : Galvanised steel wire braid to BS 6883.
Outer Sheath : EVA - SW4 compound complying with BS 7655 (TYPE GL: Blue; TYPE GN: Grey).
| Construction No. of cores × Cross section(mm²) | Nominal Insulation Thickness | Nominal Thickness of Inner Sheath | Nominal Thickness of Outer Sheath | Nominal Overall Diameter | Approx. Weight |
|---|---|---|---|---|---|
| mm | mm | mm | mm | kg/km | |
| 3×2×0.75 | 0.8 | 1.2 | 1.4 | 17.8 | 520 |
| 7×2×0.75 | 0.8 | 1.4 | 1.5 | 22.0 | 780 |
| 12×2×0.75 | 0.8 | 1.6 | 1.7 | 27.6 | 1150 |
| 20×2×0.75 | 0.8 | 1.8 | 2.0 | 35.3 | 1900 |
| 3×3×0.75 | 0.8 | 1.3 | 1.5 | 20.0 | 520 |
| 7×3×0.75 | 0.8 | 1.5 | 1.7 | 25.3 | 870 |
| 12×3×0.75 | 0.8 | 1.8 | 2.0 | 33.6 | 1500 |
| 1×4×0.75 | 0.8 | 1.2 | 1.2 | 17.1 | 390 |
| 1×2×1.0 | 0.8 | 1.0 | 1.0 | 14.0 | 180 |
| 1×3×1.0 | 0.8 | 1.0 | 1.0 | 14.3 | 300 |
| 1×4×1.0 | 0.8 | 1.1 | 1.2 | 15.3 | 430 |
| 1×2×1.5 | 0.8 | 1.2 | 1.3 | 14.4 | 320 |
| 3×2×1.5 | 0.8 | 1.3 | 1.4 | 23.4 | 771 |
| 7×2×1.5 | 0.8 | 1.4 | 1.6 | 29.2 | 1189 |
| 12×2×1.5 | 0.8 | 1.7 | 1.9 | 37.3 | 1869 |
| 3×3×1.5 | 0.8 | 1.3 | 1.3 | 27.7 | 979 |
| 7×3×1.5 | 0.8 | 1.5 | 1.5 | 35.1 | 1594 |
| 12×3×1.5 | 0.8 | 1.8 | 1.8 | 46.3 | 2647 |
| 1×4×1.5 | 0.8 | 1.2 | 1.4 | 19.2 | 600 |
