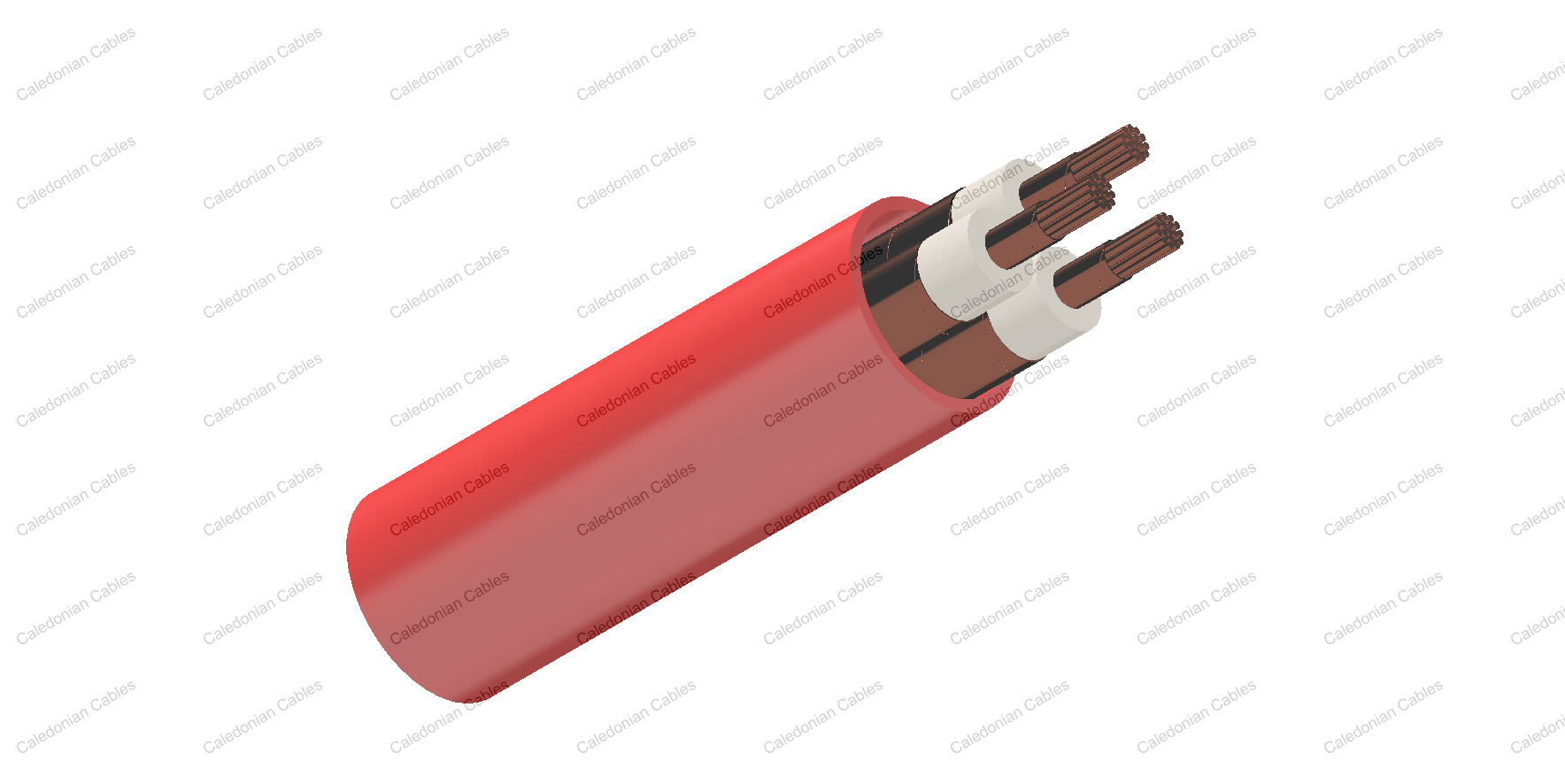

These medium voltage elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in power and control applications.
BS 6883
IEC 60332-3A Flame retardant
IEC 60754-1; IEC 60754- 2 Corrosivity
IEC 61034-2 Smoke density
Cold bend and impact (-40°C) (on request)
CSA C22.2 No. 38-95 (on request)

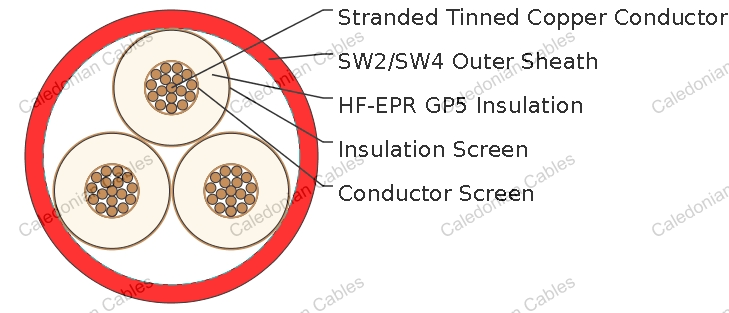

Conductor : Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228.
Conductor Screen : Semiconducting layer or tape.
Insulation : HF-EPR GP5 according to BS 7655 1.2.
Insulation Screen : Semiconducting layer or tape +Tinned copper tape.
Outer Sheath : Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.
Minimum Internal Bending Radius : 15×OD (single core); 20×OD (three core)
Temperature Range : -40℃ ~ +90℃
| Construction No. of cores×Cross section | Nominal Insulation Thickness | Nominal Outer Sheath Thickness | Minimum Overall Diameter | Maximum Overall Diameter | Approx. Weight |
|---|---|---|---|---|---|
| mm² | mm | mm | mm | mm | kg/km |
| 1×16 | 3.0 | 1.3 | 16.0 | 18.0 | 492 |
| 1×25 | 3.0 | 1.3 | 17.6 | 19.7 | 658 |
| 1×35 | 3.0 | 1.4 | 18.7 | 20.8 | 776 |
| 1×50 | 3.0 | 1.4 | 19.9 | 22.3 | 942 |
| 1×70 | 3.0 | 1.5 | 21.8 | 24.3 | 1229 |
| 1×95 | 3.0 | 1.6 | 23.7 | 26.3 | 1546 |
| 1×120 | 3.0 | 1.6 | 25.4 | 28.0 | 1890 |
| 1×150 | 3.0 | 1.7 | 27.0 | 29.8 | 2242 |
| 1×185 | 3.0 | 1.8 | 29.0 | 32.1 | 2713 |
| 1×240 | 3.0 | 1.9 | 31.7 | 35.0 | 3427 |
| 1×300 | 3.0 | 2.0 | 34.3 | 37.6 | 4177 |
| 1×400 | 3.0 | 2.1 | 37.6 | 41.1 | 5145 |
| 1×500 | 3.2 | 2.3 | 41.4 | 45.5 | 6408 |
| 1×630 | 3.2 | 2.4 | 45.1 | 49.2 | 8134 |
| 3×16 | 3.0 | 1.8 | 32.7 | 36.0 | 1482 |
| 3×25 | 3.0 | 2.0 | 36.5 | 39.9 | 2031 |
| 3×35 | 3.0 | 2.0 | 38.4 | 41.9 | 2359 |
| 3×50c | 3.0 | 2.2 | 41.3 | 45.3 | 2918 |
| 3×70 | 3.0 | 2.3 | 45.3 | 49.4 | 3788 |
| 3×95 | 3.0 | 2.5 | 49.3 | 53.9 | 4776 |
| 3×120 | 3.0 | 2.6 | 53.1 | 57.8 | 5868 |
| 3×150 | 3.0 | 2.7 | 56.5 | 61.4 | 6933 |
| 3×185 | 3.0 | 2.9 | 60.8 | 66.1 | 8401 |
| 3×240 | 3.0 | 3.1 | 66.6 | 72.2 | 10616 |
| Construction No. of cores×Cross section | Nominal Insulation Thickness | Nominal Outer Sheath Thickness | Minimum Overall Diameter | Maximum Overall Diameter | Approx. Weight |
|---|---|---|---|---|---|
| mm² | mm | mm | mm | mm | kg/km |
| 1×16 | 3.4 | 1.3 | 16.8 | 18.8 | 524 |
| 1×25 | 3.4 | 1.4 | 18.6 | 20.7 | 704 |
| 1×35 | 3.4 | 1.4 | 19.4 | 21.9 | 813 |
| 1×50 | 3.4 | 1.5 | 20.8 | 23.3 | 994 |
| 1×70 | 3.4 | 1.5 | 22.6 | 25.1 | 1272 |
| 1×95 | 3.4 | 1.6 | 24.4 | 27.1 | 1592 |
| 1×120 | 3.4 | 1.7 | 26.3 | 29.0 | 1956 |
| 1×150 | 3.4 | 1.7 | 27.8 | 30.6 | 2294 |
| 1×185 | 3.4 | 1.8 | 29.8 | 32.9 | 2769 |
| 1×240 | 3.4 | 1.9 | 32.5 | 35.8 | 3487 |
| 1×300 | 3.4 | 2.0 | 35.0 | 38.4 | 4242 |
| 1×400 | 3.4 | 2.1 | 38.4 | 41.9 | 5208 |
| 1×500 | 3.4 | 2.3 | 41.8 | 45.8 | 6442 |
| 1×630 | 3.4 | 2.4 | 45.5 | 49.6 | 8176 |
| 3×16 | 3.4 | 1.9 | 34.5 | 37.9 | 1601 |
| 3×25 | 3.4 | 2.0 | 38.2 | 41.6 | 2139 |
| 3×35 | 3.4 | 2.1 | 40.2 | 44.1 | 2497 |
| 3×50 | 3.4 | 2.2 | 43.0 | 47.0 | 3040 |
| 3×70 | 3.4 | 2.4 | 47.1 | 51.3 | 3949 |
| 3×95 | 3.4 | 2.5 | 51.0 | 55.6 | 4919 |
| 3×120 | 3.4 | 2.7 | 55.0 | 59.8 | 6055 |
| 3×150 | 3.4 | 2.8 | 58.4 | 63.3 | 7132 |
| 3×185 | 3.4 | 3.0 | 62.7 | 68.1 | 8613 |
| 3×240 | 3.4 | 3.2 | 68.5 | 74.1 | 10848 |
| Construction No. of cores×Cross section | Nominal Insulation Thickness | Nominal Outer Sheath Thickness | Minimum Overall Diameter | Maximum Overall Diameter | Approx. Weight |
|---|---|---|---|---|---|
| mm² | mm | mm | mm | mm | kg/km |
| 1×25 | 4.5 | 1.5 | 20.9 | 23.4 | 808 |
| 1×35 | 4.5 | 1.5 | 21.7 | 24.3 | 921 |
| 1×50 | 4.5 | 1.5 | 22.9 | 25.5 | 1110 |
| 1×70 | 4.5 | 1.6 | 24.9 | 27.5 | 1396 |
| 1×95 | 4.5 | 1.7 | 26.7 | 29.5 | 1726 |
| 1×120 | 4.5 | 1.8 | 28.6 | 31.4 | 2099 |
| 1×150 | 4.5 | 1.8 | 30.1 | 33.3 | 2445 |
| 1×185 | 4.5 | 1.9 | 32.1 | 35.3 | 2929 |
| 1×240 | 4.5 | 2.0 | 34.8 | 38.2 | 3661 |
| 1×300 | 4.5 | 2.1 | 37.3 | 40.8 | 4429 |
| 1×400 | 4.5 | 2.2 | 40.7 | 44.6 | 5390 |
| 1×500 | 4.5 | 2.4 | 44.1 | 48.2 | 6638 |
| 1×630 | 4.5 | 2.5 | 47.8 | 52.0 | 8415 |
| 3×25 | 4.5 | 2.2 | 43.1 | 47.1 | 2458 |
| 3×35 | 4.5 | 2.3 | 45.2 | 49.2 | 2832 |
| 3×50 | 4.5 | 2.4 | 47.9 | 52.1 | 3395 |
| 3×70 | 4.5 | 2.6 | 52.1 | 56.7 | 4336 |
| 3×95 | 4.5 | 2.7 | 55.9 | 60.7 | 5334 |
| 3×120 | 4.5 | 2.9 | 59.9 | 64.9 | 6500 |
| 3×150 | 4.5 | 3.0 | 63.3 | 68.7 | 7602 |
| 3×185 | 4.5 | 3.2 | 67.6 | 73.2 | 9116 |
