    2YSLCY-JB+3/2YSLCYK-JB+3

    Application

    These cables are double shielded, large gauge size, PVC motor supply cables. Polyethylene insulation over very fine stranded copper provides a low-loss transfer of power, excellent low capacitance performance and superior flexibility when compared to conventional PVC cables. The applications include frequency converters, motor runs, connections with high electromagnetic interference. Found in the automotive, paper and food industry, environmental technology, packaging industry, machine tools and handling equipment. The overall foil and braid shield offer excellent protection against electromagnetic and electrical interferences. This version substitutes the common single green/yellow ground wire for three symmetrical green/yellow ground wires for improved EMC characteristics. For medium mechanical stresses found indoors in dry, moist and wet areas. For 2YSLCYK-JB+3, the black UV-resistant jacket allows for outdoor use and for direct burial applications.

    Standard

    VDE 0250 & 0281, EMC to EN 55011, EMC to VDE-0875 part-11, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

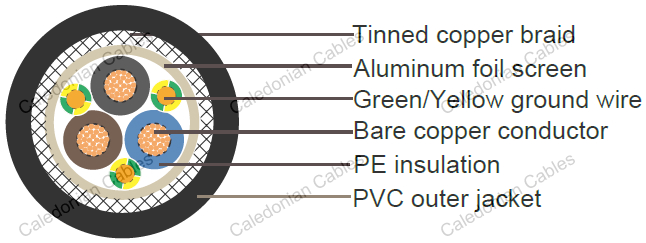

    Cable construction

    Stranded bare copper conductor according to DIN VDE 0295, IEC60228 cl. 5

    Polyethylene(PE) insulation

    Colours according to HD 308 S2(VDE 0293- 308)

    Three symmetrical green/yellow ground wires

    Special aluminum foil screening

    Tinned copper braiding, coverage approx. 80%

    For 2YSLCY-JB+3 orange PVC sheath made of PVC compound YM2 acc. VDE 0207 -5, leadfree, flame retardant & self-extinguishing.

    For 2YSLCYK-JB+3 black PVC sheath made of cold-flexible PVC compound DMV5 acc. VDE 0276-603, leadfree, UV resistant, outdoor and direct burial use, flame retardant & self-extinguishing, IEC 60332.1 EEU directives cables conforms to EEC 79/29 directive ( Low Voltage Directive)

    Technical Characteristics

    Working voltage : 600/1000 volts

    Test voltage : 4000 volts

    Minimum bending radius : 20 x Ø

    Flexing temperature : -5º C to +70º C

    Fixed installation temperature : - 40º C to +70º C

    Flame retardant : IEC 60332.1

    Insulation resistance : >20 GΩ x km

    Coupling resistance max. 250 Ω/km

    Radiation resistance up to 80 x106 cJ/kg (up to 80 Mrad)

    Mutual capacitance : core/core 70 to 250 nF/km ; core/braiding 110 to 410 nF/km

    Cable Parameter

    Conductor Ground Wire No. of Cores x Nominal Cross-Section Nominal Overall Diameter Mutual capacitance core/core approx. Mutual capacitance core/screen approx. Copper weight Approx. cable weight
    AWG AWG mm² mm nF/km nF/km kg/km kg/km
    16(30/30) 24 3x1.5+3G0.25 10.2 70 110 91 212
    14(50/30) 22 3x2.5+3G0.5 11.9 80 130 152 276
    12(56/28) 20 3x4+3G0.75 13.7 90 150 224 446
    10(84/28) 18 3x6+3G1 15.3 110 170 298 582
    8(80/26) 16 3x10+3G1.5 19.2 120 190 491 794
    6(128/26) 14 3x16+3G2.5 22.3 130 220 723 1188
    4(200/26) 12 3x25+3G4 27.3 145 230 1138 1713
    2(280/26) 10 3x35+3G6 29.4 150 260 1535 2402
    1(400/26) 8 3x50+3G10 35 175 290 2208 2718
    2/0(356/24) 8 3x70+3G10 40.6 180 300 2871 3636
    3/0(485/24) 6 3x95+3G16 44 195 320 3953 4978
    4/0(614/24) 6 3x120+3G16 49.5 215 340 4836 6175
    300 MCM (765/24) 4 3x150+3G25 55.2 230 360 5421 6579
    350 MCM (944/24) 2 3x185+3G35 58.2 240 380 7041 8518
    500 MCM (1225/24) 1 3x240+3G50 66 250 410 9148 11611
