NTSCGERLWOEU 3.6/6kV Flexible Submersible Cable

Applications

These cables are used for permanent operation inwater where the cable is required to have additionalmechanical protection.

Standards

VDE 0250 Part 813

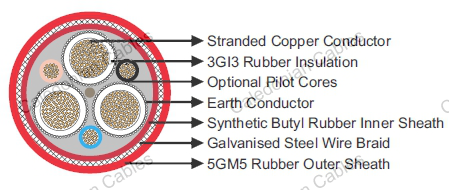

Construction

Conductors:

Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.  Inner Conductor Layer:

Special rubber compound, conductive. Insulation:

Rubbertype 3GI3. Outer Conductor Layer:

Special rubber, conductive, easy strippable. Pilot Cores (optional):

Copper conductor with EPR insulation.  Earth Conductor:

Spiral of tinned annealed copper wires. InnerSheath:

Waterproof synthetic butyl rubber. Armouring:

Braid of galvanised steel strands. Outer Sheath:

Rubber type 5GM5.

Dimensions and Weight
