Thesecables are used as HV feeder cables in fixed conditions.
AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808

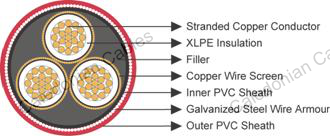

Conductors: Stranded plain copper conductor.
Insulation: XLPE.
Individual Screen (earth conductor): Copper wire.
Inner Sheath: PVC sheath.
Armour: Galvanized steel wire armour.
Outer Sheath: PVC sheathto AS/NZS 1429.1.
|
Nominal Conductor Area |
Nominal Conductor Diameter |
Insulation Thickness |
Core screen |
Armour Wire Diameter |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
|
|
Strand Size |
Area |
|||||||
|
mm² |
mm |
mm |
mm |
mm² |
mm |
mm |
mm |
kg/100m |
6.35/11kV |
||||||||
|
4.8 |
3.4 |
10/0.85 |
5.7 |
2.00 |
2.4 |
46.6 |
330 |
|
|
5.8 |
3.4 |
10/0.85 |
5.7 |
2.50 |
2.5 |
50.1 |
415 |
|
|
6.8 |
3.4 |
11/0.85 |
6.2 |
2.50 |
2.6 |
52.8 |
475 |
|
|
8.0 |
3.4 |
15/0.85 |
8.5 |
2.50 |
2.7 |
55.7 |
540 |
|
|
9.6 |
3.4 |
21/0.85 |
11.9 |
2.50 |
2.8 |
59.6 |
645 |
|
|
11.5 |
3.4 |
29/0.85 |
16.5 |
2.50 |
2.9 |
63.9 |
775 |
|
|
13.1 |
3.4 |
36/0.85 |
20.4 |
2.50 |
3.1 |
67.9 |
905 |
|
|
14.5 |
3.4 |
44/0.85 |
25.0 |
2.50 |
3.2 |
71.5 |
1030 |
|
|
16.1 |
3.4 |
22/1.35 |
31.5 |
3.15 |
3.3 |
78.6 |
1280 |
|
|
18.5 |
3.4 |
29/1.35 |
41.5 |
3.15 |
3.5 |
84.7 |
1550 |
|
|
20.7 |
3.4 |
37/1.35 |
53.0 |
3.15 |
3.7 |
90.4 |
1820 |
|
|
23.6 |
3.4 |
47/1.35 |
67.3 |
3.15 |
4.0 |
97.9 |
2230 |
|
12.7/22kV |
||||||||
|
6.8 |
5.5 |
14/0.85 |
7.9 |
2.5 |
2.9 |
63.2 |
600 |
|
|
8.0 |
5.5 |
15/0.85 |
8.5 |
2.5 |
3.0 |
66.0 |
665 |
|
|
9.6 |
5.5 |
21/0.85 |
11.9 |
2.5 |
3.1 |
69.9 |
775 |
|
|
11.5 |
5.5 |
29/0.85 |
16.5 |
2.5 |
3.3 |
74.4 |
920 |
|
|
13.1 |
5.5 |
36/0.85 |
20.4 |
3.15 |
3.4 |
79.5 |
1140 |
|
|
14.5 |
5.5 |
44/0.85 |
25.0 |
3.15 |
3.5 |
83.1 |
1280 |
|
|
16.1 |
5.5 |
22/1.35 |
31.5 |
3.15 |
3.7 |
89.1 |
1450 |
|
|
18.5 |
5.5 |
29/1.35 |
41.5 |
3.15 |
3.9 |
95.0 |
1720 |
|
|
20.7 |
5.5 |
37/1.35 |
53.0 |
3.15 |
4.1 |
101.1 |
2010 |
|
|
23.6 |
5.5 |
47/1.35 |
67.3 |
3.15 |
4.3 |
108.2 |
2420 |
|
