    Type 1 1.1/1.1KV Collectively Screened

    Applications

    These individuallycopper screened cables are used for wiring of machines, or between machines and equipment where PVC is suitable.

    Standards

    AS/NZS 1972:2006

    AS/NZS 1125

    AS/NZS 3808

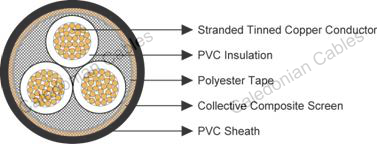

    Construction

    Conductors: Stranded copper conductor.

    Insulation: PVC.

    Bedding: Polyester tape.

    Collective Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester yarn.

    Sheath: PVC sheath.

    Dimensions and Weight

    Number of Cores

    Nominal Conductor Area

    Strand Size

    Insulation Thickness

    Core screen

    Thickness of Sheath

    Nominal Overall Diameter

    Nominal Weight

    Strand Size

    Area
    of Screen



    mm²

    No/mm

    mm

    mm

    mm²

    mm

    mm

    kg/100m

    Type 1 – Collectively Screened

    2

    1.5

    30/0.25

    0.8

    0.20

    2.3

    0.8

    9.2

    12

    3

    1.5

    30/0.25

    0.8

    0.20

    2.5

    0.8

    9.7

    15

    4

    1.5

    30/0.25

    0.8

    0.20

    2.6

    0.8

    10.5

    18

    6

    1.5

    30/0.25

    0.8

    0.20

    3.4

    0.8

    12.6

    25

    16

    1.5

    30/0.25

    0.8

    0.20

    5.1

    1.0

    18.7

    55

    30

    1.5

    30/0.25

    0.8

    0.25

    8.8

    1.3

    24.6

    96
