These cablesare used as 1.1kV cables to distribute power within themine,suitable for use in underground coal mines. For Type A cables,optional 3 pilots can be selected.
AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808

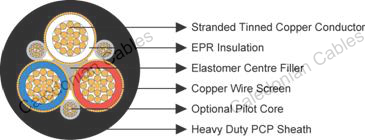

Conductors: Stranded tinned annealed copper conductor.
Insulation: EPR.
Filling: Elastomer centre filler.
Optional Pilot Core (Type A only): CPE compositeinsulated and covered pilot conductor.
Screen (earth conductor): Copper wire.
Sheath: Heavy duty PCP sheath.
|
Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Core screen |
Pilot Conductor |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
||
|
Strand Size |
Area of Screen |
Strand Size |
Thickness of Covering |
||||||
|
mm² |
No/mm |
mm |
mm |
mm² |
No/mm |
mm |
mm |
mm |
kg/100m |
|
Type A & B |
|||||||||
|
7/1.70 |
1.4 |
48/0.40 |
6.0 |
24/0.20 |
1.6 |
2.5 |
24.6 |
120 |
|
|
19/1.35 |
1.4 |
57/0.40 |
7.2 |
32/0.20 |
1.8 |
2.5 |
28.0 |
170 |
|
| 35 |
19/1.53 |
1.5 |
63/0.40 |
7.9 |
30/0.25 |
1.8 |
2.5 |
30.4 |
205 |
|
19/1.78 |
1.7 |
72/0.40 |
9.0 |
50/0.25 |
2.0 |
3.0 |
34.9 |
270 |
|
|
19/2.14 |
1.8 |
67/0.50 |
13.2 |
80/0.25 |
2.0 |
3.3 |
40.2 |
370 |
|
|
19/2.52 |
2.0 |
77/0.50 |
15.1 |
80/0.25 |
2.0 |
3.8 |
46.1 |
490 |
|
|
37/2.03 |
2.2 |
65/0.67 |
22.9 |
80/0.25 |
2.0 |
3.8 |
51.1 |
615 |
|
|
37/2.25 |
2.3 |
70/0.67 |
24.7 |
80/0.25 |
2.0 |
4.4 |
56.0 |
740 |
|
|
37/2.52 |
2.5 |
78/0.67 |
27.5 |
80/0.25 |
2.0 |
5.1 |
62.3 |
915 |
|
|
61/2.25 |
2.7 |
45/1.35 |
64.4 |
80/0.25 |
2.0 |
5.7 |
72.9 |
1290 |
|
