These individually copper screened cables are used for wiring of machines or between machines and equipment wherea rubber cable is desired. These cables are also used for longwall lighting circuits, and may contain pilot and controlcores or twisted pair and screened cores.
AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808

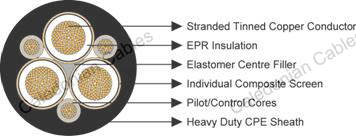

Conductors : Stranded tinned annealed copper conductor.
Insulation : EPR.
Filling : Elastomer centre filler.
Pilot/Control Cores : EPR covered and composite screened flexible stranded tinned copper conductor.
IndividualComposite Screen (earth conductor) : Tinned annealed copper braiding interwove with polyester yarn.
Sheath : Heavy duty CPE sheath.
| Number of Core | Nominal Conductor Area | Strand Size | Insulation Thickness | Core screen | Pilot Conductor | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Strand Size | Area of Screen | Number of Pilots | Strand Size | Thickness of Covering | |||||||
| mm² | No/mm | mm | mm | mm² | No/mm | mm | mm | mm | kg/100m | ||
| Type 2S 1.1/1kV Individually Screened | |||||||||||
| 3 | 10 | 77/0.40 | 1.2 | 0.2 | 7.9 | 3 | – | – | 1.8 | 22.1 | 69 |
| 4 | 10 | 77/0.40 | 1.2 | 0.2 | 7.9 | 4 | – | – | 1.8 | 23.0 | 93 |
| 2 | 16 | 126/0.40 | 1.2 | 0.2 | 9.0 | 2 | – | – | 1.8 | 22.0 | 81 |
| 3 | 16 | 126/0.40 | 1.2 | 0.2 | 9.0 | 3 | – | – | 1.8 | 23.4 | 100 |
| 4 | 16 | 126/0.40 | 1.2 | 0.2 | 9.0 | 4 | – | – | 1.8 | 26.8 | 135 |
| 3 | 10 | 77/0.40 | 1.2 | 0.2 | 7.9 | 3 | 30/0.20 | 1.0 | 1.8 | 22.5 | 87 |
| 2 | 16 | 126/0.40 | 1.2 | 0.2 | 9.0 | 2 | 30/0.20 | 1.0 | 1.8 | 22.7 | 88 |
| 3 | 16 | 126/0.40 | 1.2 | 0.2 | 9.0 | 3 | 30/0.20 | 1.0 | 1.8 | 27.7 | 130 |
| 3 | 25 | 209/0.40 | 1.4 | 0.2 | 11.3 | 3 | 30/0.20 | 1.0 | 1.8 | 29.2 | 165 |
| 3 | 35 | 285/0.40 | 1.4 | 0.2 | 12.4 | 3 | 30/0.20 | 1.0 | 1.8 | 31.6 | 200 |
| 3 | 50 | 380/0.40 | 1.6 | 0.25 | 17.5 | 3 | 30/0.20 | 1.0 | 1.9 | 36.1 | 260 |
| Type 2S 1.1/1kV Individually and Collectively Screened | |||||||||||
| 30 | 1.5 | 30/0.25 | 1.0 | 0.3 | 14.0 | – | – | – | 1.9 | 32.6 | 170 |
| Type 2S 3.3/3.3Kv Individually Screened | |||||||||||
| 3 | 10 | 77/0.40 | 3.0 | 0.2 | 11.3 | 3 | 30/0.25 | 1.0 | 1.8 | 28.9 | 130 |
| 3 | 16 | 126/0.40 | 3.0 | 0.2 | 12.4 | 3 | 30/0.25 | 1.0 | 1.8 | 31.3 | 160 |
| 3 | 25 | 209/0.40 | 3.0 | 0.2 | 13.6 | 3 | 30/0.25 | 1.0 | 1.9 | 34.8 | 210 |
| 3 | 35 | 285/0.40 | 3.0 | 0.2 | 15.3 | 3 | 30/0.25 | 1.0 | 2.0 | 37.8 | 250 |
| 3 | 50 | 380/0.40 | 3.0 | 0.2 | 17.0 | 3 | 30/0.25 | 1.0 | 2.1 | 41.3 | 305 |
| 3 | 70 | 203/0.67 | 3.0 | 0.3 | 30.5 | 3 | 30/0.25 | 1.0 | 2.2 | 46.8 | 415 |
| 3 | 95 | 259/0.67 | 3.0 | 0.3 | 30.5 | 3 | 30/0.25 | 1.0 | 2.3 | 49.6 | 490 |
| 3 | 120 | 336/0.67 | 3.0 | 0.4 | 47.5 | 3 | 30/0.25 | 1.0 | 2.5 | 55.0 | 620 |
