    Mining Cable Type 275 1.1/1.1KV

    Type 275 1.1/1.1KV

    Applications

    These cables are mainly used as a flexible feeder for shuttle cars and pump. Earth cores designed to reduce instances of wire breaks during reeling while under tension.

    Standards

    AS/NZS 1802:2003

    AS/NZS 1125

    AS/NZS 3808

    AS/NZS 5000.1

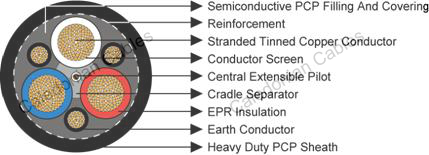

    Construction

    3×Conductors: Flexible stranded tinned annealed copper conductor.

    Conductor Screen:Polyester barrier tape.

    Insulation: EPR.

    Cradle Separator: Semiconductive PCP.

    Overall Core Screen: SemiconductivePCP filling andcovering.

    3×Interstitial Earth Conductor: Semiconductive PCP insulated flexible stranded tinned copper conductor.

    1×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.

    Textile Reinforcement: Open-weave braid reinforcement.

    Sheath: Heavy duty PCP sheath.

    Dimensions and Weight

    Nominal Conductor Area

    Strand Size

    Insulation Thickness

    Earth Conductor

    Pilot Conductor

    Thickness of SheathIncluding

    SC PCP

    Layer

    Nominal Overall Diameter

    Nominal Weight

    Strand Size

    Thickness of Covering

    Strand Size

    Thickness of Covering

    mm²

    No/mm

    mm

    No/mm

    mm

    No/mm

    mm

    mm

    mm

    kg/100m

    Type 275



















    16

    126/0.40

    1.6

    60/0.30

    1.0

    24/0.20

    0.8

    3.8

    30.2

    145

    25

    209/0.40

    1.6

    100/0.30

    1.0

    24/0.20

    0.8

    4.0

    33.9

    204

    35

    285/0.40

    1.6

    140/0.30

    1.0

    24/0.20

    0.8

    4.3

    37.9

    270

    50

    380/0.40

    1.7

    99/0.40

    1.0

    40/0.20

    0.8

    4.7

    41.6

    333
