    Type 241 1.1 to 11KV

    Applications

    These cables are designed for various uses, including main feeder cable for continuous miners, pump cable, and power supply cable. Overall semiconductive screen provides protective earth contact for any object breaching the sheath prior to contact with power conductors.

    Standards

    AS/NZS 1802:2003

    AS/NZS 1125

    AS/NZS 3808

    AS/NZS 5000.1

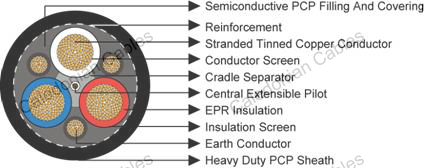

    Construction

    3×Conductors: Flexible stranded tinned annealed copper conductor.

    Conductor Screen: 1.1/1.1kV - polyester barrier tape, 3.3/3.3kV andabove - polyester barrier tape and extruded semiconductive tape.

    Insulation: EPR.

    Insulation Screen:Semiconductive tape.

    Cradle Separator: Semiconductive PCP.

    Overall Core Screen: Semiconductive PCP filling and covering.

    3×Interstitial Earth Conductor: Semiconductive PCP insulated flexible stranded tinned copper conductor.

    1×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.

    Textile Reinforcement: Open-weave braid reinforcement.

    Sheath: Heavy duty PCP sheath.

    Dimensions and Weight

    Nominal Conductor Area

    Strand Size

    Insulation Thickness

    Earth Conductor

    Pilot Conductor

    Thickness of Sheath Including

    SC PCP

    Layer

    Nominal Overall Diameter

    Nominal Weight

    Strand Size

    Thickness of Covering

    Strand Size

    Thickness of Covering

    mm²

    No/mm

    mm

    No/mm

    mm

    No/mm

    mm

    mm

    mm

    kg/100m

    Type 241.1

    6

    84/0.30

    1.5

    18/0.30

    1.0

    24/0.20

    0.8

    3.8

    28.5

    106

    10

    77/0.40

    1.5

    27/0.30

    1.0

    24/0.20

    0.8

    3.8

    31.1

    127

    16

    126/0.40

    1.6

    42/0.30

    1.0

    24/0.20

    0.8

    3.9

    34.1

    164

    25

    209/0.40

    1.6

    66/0.30

    1.0

    24/0.20

    0.8

    4.2

    37.9

    208

    35

    285/0.40

    1.6

    90/0.30

    1.0

    24/0.20

    0.8

    4.4

    41.2

    254

    50

    380/0.40

    1.7

    120/0.30

    1.0

    40/0.20

    0.8

    4.9

    45.9

    328

    70

    203/0.67

    1.8

    39/0.67

    1.0

    40/0.20

    0.8

    5.3

    52.2

    480

    95

    259/0.67

    2.0

    39/0.67

    1.0

    40/0.20

    0.8

    5.8

    56.7

    600

    120

    336/0.67

    2.1

    42/0.67

    1.2

    40/0.20

    0.8

    6.3

    62.7

    710

    150

    427/0.67

    2.3

    54/0.67

    1.2

    40/0.20

    0.8

    6.7

    68.3

    865

    185

    518/0.67

    2.5

    63/0.67

    1.4

    40/0.20

    0.8

    7.3

    74.9

    1030

    240

    672/0.67

    2.8

    77/0.67

    1.4

    40/0.20

    0.8

    8.0

    83.3

    1300

    300

    854/0.67

    3.0

    98/0.67

    1.4

    40/0.20

    0.8

    8.7

    91.2

    1600

    Type 241.3

    16

    126/0.40

    3.0

    42/0.30

    1.0

    24/0.20

    0.8

    5.0

    43.8

    249

    25

    209/0.40

    3.0

    66/0.30

    1.0

    24/0.20

    0.8

    5.3

    47.7

    315

    35

    285/0.40

    3.0

    90/0.30

    1.0

    24/0.20

    0.8

    5.6

    51.1

    376

    50

    380/0.40

    3.0

    120/0.30

    1.2

    40/0.20

    0.8

    6.0

    55.2

    450

    70

    203/0.67

    3.0

    39/0.67

    1.2

    40/0.20

    0.8

    6.4

    60.3

    576

    95

    259/0.67

    3.0

    48/0.67

    1.2

    40/0.20

    0.8

    6.8

    63.8

    675

    120

    336/0.67

    3.0

    60/0.67

    1.2

    40/0.20

    0.8

    7.2

    69.1

    810

    150

    427/0.67

    3.0

    77/0.67

    1.2

    40/0.20

    0.8

    7.6

    73.8

    952

    185

    518/0.67

    3.0

    91/0.67

    1.4

    40/0.20

    0.8

    8.0

    79.2

    1130

    240

    672/0.67

    3.0

    112/0.67

    1.4

    40/0.20

    0.8

    8.6

    86.0

    1380

    300

    854/0.67

    3.0

    144/0.67

    1.4

    40/0.20

    0.8

    9.1

    92.6

    1660

    Type 241.6

    16

    126/0.40

    5.0

    42/0.30

    1.4

    24/0.20

    0.8

    6.1

    54.9

    365

    25

    209/0.40

    5.0

    66/0.30

    1.4

    24/0.20

    0.8

    6.4

    58.8

    440

    35

    285/0.40

    5.0

    90/0.30

    1.4

    24/0.20

    0.8

    6.7

    62.2

    509

    50

    380/0.40

    5.0

    120/0.30

    1.4

    40/0.20

    0.8

    7.1

    66.2

    592

    70

    203/0.67

    5.0

    39/0.67

    1.4

    40/0.20

    0.8

    7.4

    71.2

    727

    95

    259/0.67

    5.0

    48/0.67

    1.4

    40/0.20

    0.8

    7.9

    74.8

    835

    120

    336/0.67

    5.0

    60/0.67

    1.4

    40/0.20

    0.8

    8.3

    80.2

    990

    150

    427/0.67

    5.0

    77/0.67

    1.4

    40/0.20

    0.8

    8.6

    84.6

    1140

    185

    518/0.67

    5.0

    91/0.67

    1.4

    40/0.20

    0.8

    9.0

    90.0

    1311

    240

    672/0.67

    5.0

    119/0.67

    1.4

    40/0.20

    0.8

    9.6

    96.8

    1576

    300

    854/0.67

    5.0

    156/0.67

    1.4

    40/0.20

    0.8

    10.2

    103.6

    1900

    Type 241.11

    25

    209/0.40

    7.6

    66/0.30

    1.8

    24/0.20

    0.8

    7.8

    73.2

    645

    35

    285/0.40

    7.6

    90/0.30

    1.8

    24/0.20

    0.8

    8.1

    76.6

    724

    50

    380/0.40

    7.6

    120/0.30

    1.8

    40/0.20

    0.8

    8.5

    80.6

    825

    70

    203/0.67

    7.6

    39/0.67

    1.8

    40/0.20

    0.8

    8.9

    85.7

    975

    95

    259/0.67

    7.6

    48/0.67

    1.8

    40/0.20

    0.8

    9.3

    89.1

    1088

    120

    336/0.67

    7.6

    60/0.67

    1.8

    40/0.20

    0.8

    9.7

    94.4

    1258

    150

    427/0.67

    7.6

    77/0.67

    1.8

    40/0.20

    0.8

    10.0

    98.9

    1423

    185

    518/0.67

    7.6

    91/0.67

    1.8

    40/0.20

    0.8

    10.4

    104.2

    1610
