These cablesare similar to Type 241 cables, except more flexible and have a smaller ‘natural’ bending radius, suitable for use as monorail cable where cable loops will be narrower, thus allowing more space for other equipmentand reducing opportunities for getting snagged.
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

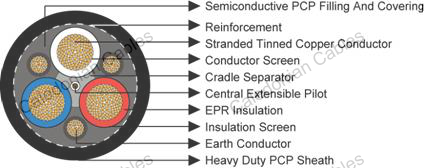

3×Conductors: Flexible stranded tinned annealed copper conductor.
Conductor Screen: 1.1/1.1kV - polyester barrier tape, 3.3/3.3kV andabove - polyester barrier tape and extruded semiconductive tape.
Insulation: EPR.
Insulation Screen:Semiconductive tape.
Cradle Separator: Semiconductive PCP.
Overall Core Screen: SemiconductivePCP filling andcovering.
3×Interstitial Earth Conductor: Semiconductive PCP insulated flexible stranded tinned copper conductor.
1×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.
Textile Reinforcement: Open-weave braid reinforcement.
Sheath: Heavy duty PCP sheath.
|
Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Earth Conductor |
Pilot Conductor |
Thickness of Sheath Including SC PCP Layer |
Nominal Overall Diameter |
Nominal Weight |
||
|
Strand Size |
Thickness of Covering |
Strand Size |
Thickness of Covering |
||||||
|
mm² |
No/mm |
mm |
No/mm |
mm |
No/mm |
mm |
mm |
mm |
kg/100m |
Type 241.1 |
|||||||||
|
361/0.50 |
1.8 |
110/0.40 |
1.0 |
40/0.20 |
0.8 |
5.3 |
53.0 |
485 |
|
|
475/0.50 |
2.0 |
85/0.40 |
1.0 |
40/0.20 |
0.8 |
5.8 |
58.8 |
595 |
|
|
608/0.50 |
2.1 |
110/0.40 |
1.2 |
40/0.20 |
0.8 |
6.3 |
62.5 |
715 |
|
|
740/0.50 |
2.3 |
135/0.40 |
1.2 |
40/0.20 |
0.8 |
6.7 |
67.0 |
840 |
|
|
925/0.50 |
2.5 |
165/0.40 |
1.4 |
40/0.20 |
0.8 |
7.3 |
75.1 |
1040 |
|
|
1221/0.50 |
2.8 |
216/0.40 |
1.4 |
40/0.20 |
0.8 |
8.0 |
85.7 |
1340 |
|
Type 241.3 |
|||||||||
|
361/0.50 |
3.0 |
110/0.40 |
1.2 |
40/0.20 |
0.8 |
6.4 |
61.2 |
590 |
|
|
475/0.50 |
3.0 |
135/0.40 |
1.2 |
40/0.20 |
0.8 |
6.8 |
65.9 |
710 |
|
|
608/0.50 |
3.0 |
165/0.40 |
1.2 |
40/0.20 |
0.8 |
7.2 |
68.9 |
820 |
|
|
740/0.50 |
3.0 |
216/0.40 |
1.2 |
40/0.20 |
0.8 |
7.6 |
72.5 |
940 |
|
|
925/0.50 |
3.0 |
252/0.40 |
1.4 |
40/0.20 |
0.8 |
8.0 |
79.4 |
1130 |
|
|
1221/0.50 |
3.0 |
324/0.40 |
1.4 |
40/0.20 |
0.8 |
8.6 |
88.3 |
1420 |
|
Type 241.6 |
|||||||||
|
361/0.50 |
5.0 |
110/0.40 |
1.4 |
40/0.20 |
0.8 |
7.4 |
72.1 |
750 |
|
|
475/0.50 |
5.0 |
135/0.40 |
1.4 |
40/0.20 |
0.8 |
7.9 |
77.0 |
885 |
|
|
608/0.50 |
5.0 |
165/0.40 |
1.4 |
40/0.20 |
0.8 |
8.3 |
79.9 |
1000 |
|
|
740/0.50 |
5.0 |
216/0.40 |
1.4 |
40/0.20 |
0.8 |
8.6 |
83.3 |
1130 |
|
|
925/0.50 |
5.0 |
252/0.40 |
1.4 |
40/0.20 |
0.8 |
9.0 |
90.2 |
1330 |
|
|
1221/0.50 |
5.0 |
324/0.40 |
1.4 |
40/0.20 |
0.8 |
9.6 |
99.1 |
1640 |
|
