Type 210 1.1/1.1KV

Applications

These cables are mainly used for hand-held boring machines and drills.

Standards

AS/NZS 1802:2003

AS/NZS 1125

AS/NZS 3808

AS/NZS 5000.1

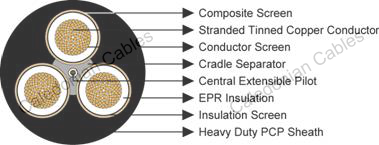

Construction

3×Conductors: Flexible stranded tinned annealed copper conductor.

Conductor Screen:Polyester barrier tape.

Insulation: EPR.

Insulation Screen:Semiconductive tape.

Composite Screen (earth conductor):Tinned annealed copper braiding interwove with polyester yarn.

Cradle Separator: Semiconductive PCP.

1×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.

Sheath: Heavy duty PCP sheath.

Dimensions and Weight
