    PAS 5308 Cable Part 2 Type 1 PVC-IS-OS-PVC

    • PAS 5308 Cable Part 2 Type 1 PVC-IS-OS-PVC
    • PAS 5308 Cable Part 2 Type 1 PVC-IS-OS-PVC

    Application

    These cables are designed to connect electrical instrumentation and communication systems in and around process plants and similar applications, Generally used to transmit analogue or digital signals in measurement and process control where chemicals may be present. The individual screening of each pair limits the consequence of crosstalk.

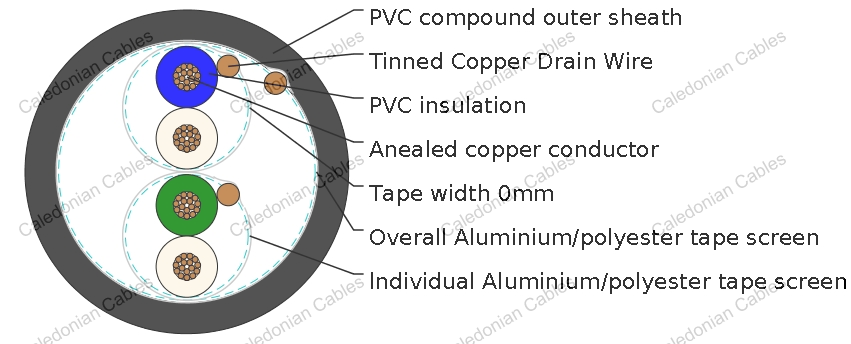

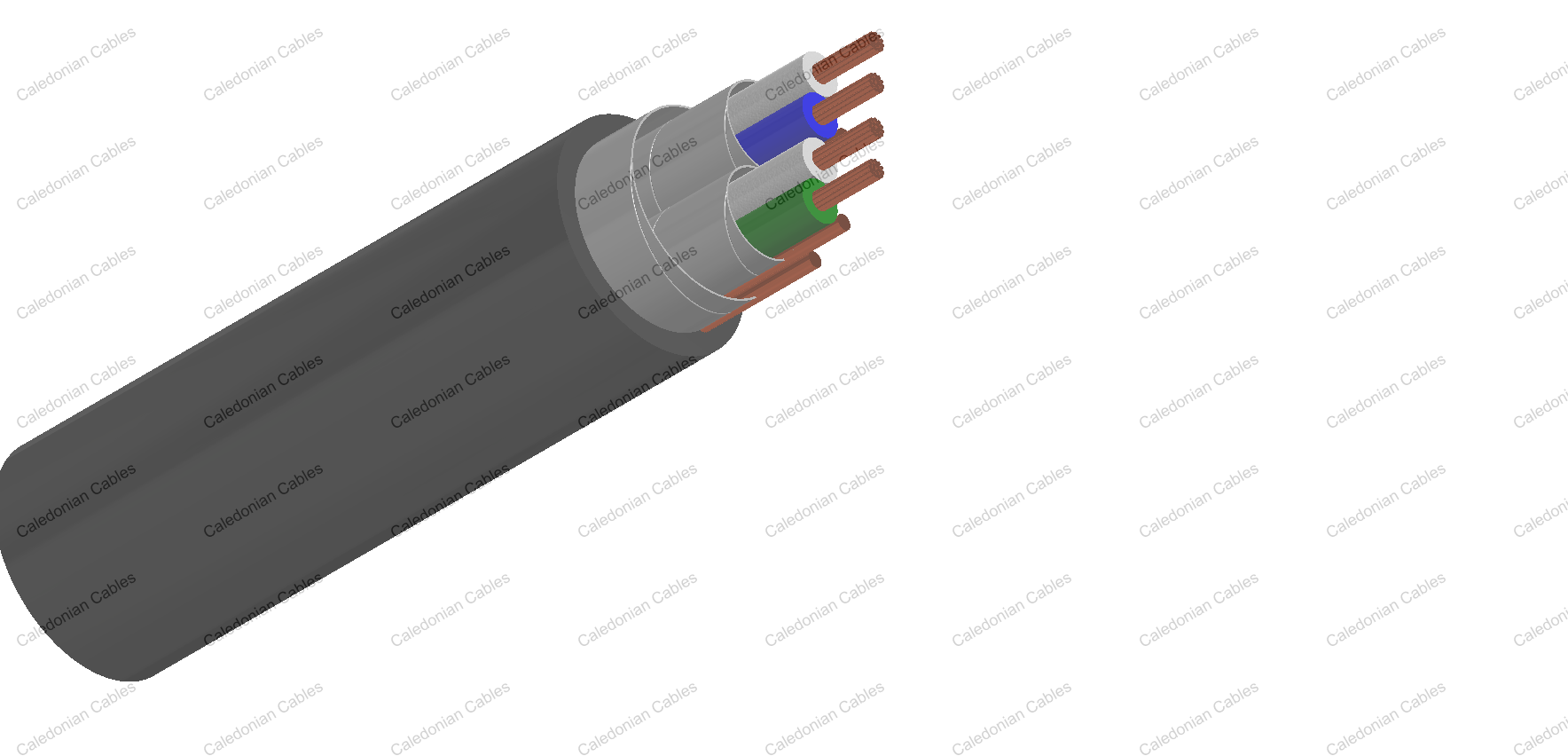

    Construction

    Conductor Annealed copper, sizes: 0.5mm^2 mulitistranded(Class 5), 0.5 mm^2 and 1.0 mm^2 solid(Class 1), 1.5mm^2 or 2.5 multistranded(Class 2) to BS EN 60228
    Insulation PVC to BS EN 50290-2-21:2002, grade TI51
    Pairing Two insulated conductors uniformly twisted together with a lay not exceeding 100mm, Two-pair cables without individual pair screens (quads) shall have four cores laid in quad formation round a central dummy
    Colour code See technical information
    Individual screen Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm^2
    Binder tape Non-hygroscopic binder tape of minimum thickness 0.023 mm
    Collective screen Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm^2
    Outer sheath Extruded sheath of a PVC compound conforming to BS EN 50290-2-22:2002, grade TM51
    Sheath colour Generally black

    Electrical Properties

    Temperature range above 0C( fixed installation)
      -15C to +65C(during operation )



    Conductor Area Size mm^2 0.5 0.5 1.0 1.5 2.5
    Conductor Stranding No. x mm 1 x 0.8 16 x 0.2 1 x 1.13 7 x 0.53 7 x 0.67
    Conductor resistance max ohm/km 36.8 39.7 18.4 12.3 7.6
    Insulation resistance min Individual conductor Gohm/km 5 5 5 5 5
      individual screen Mohm/km 1 1 1   1
    Capacitance unbalance at 1kHz(pair to pair screen) pF/250m 250
    Max. Mutual Capacitance @ 1kHz for Non OS or OS cables (except one-pair and two-pairs) pF/m 75 75 75 85 105
    Max. Mutual Capacitance @ 1kHz IS/OS cables (include 1 pairand 2 pair) pF/m 115 115 115 120 140
    Max. L/R Ratio for adjacentcores(Inductance/Resistance) μH/ohm 25 25 25 40 60
    Test voltage V 2000 2000 2000 2000 2000
    Rated voltage V 300/500 300/500 300/500 300/500 300/500

    Parameter

    Number of Pairs Number and Diameter of Wires Nominal Conductor Cross-Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Diameter of Cable
    no./mm mm^2 mm mm mm
    stranded conductor 0.5 mm^2 (16/0.20mm)
    2 16/0.2 0.5 0.6 0.9 9.7
    5 16/0.2 0.5 0.6 1 12.6
    10 16/0.2 0.5 0.6 1.2 18
    15 16/0.2 0.5 0.6 1.3 20.9
    20 16/0.2 0.5 0.6 1.4 23.6
    30 16/0.2 0.5 0.6 1.6 28.2
    50 16/0.2 0.5 0.6 1.8 36.1
    stranded conductor 0.75 mm^2 (24/0.20mm)
    2 24/0.2 0.75 0.6 0.9 10.4
    5 24/0.2 0.75 0.6 1 13.5
    10 24/0.2 0.75 0.6 1.2 19.4
    15 24/0.2 0.75 0.6 1.4 22.8
    20 24/0.2 0.75 0.6 1.5 25.8
    30 24/0.2 0.75 0.6 1.6 30.5
    50 24/0.2 0.75 0.6 1.9 39.3
    stranded conductor 1.5 mm^2 (7/0.53mm)
    2 7/0.53 1.5 0.6 1 12.1
    5 7/0.53 1.5 0.6 1.1 15.8
    10 7/0.53 1.5 0.6 1.4 22.9
    15 7/0.53 1.5 0.6 1.5 26.6
    20 7/0.53 1.5 0.6 1.6 30.1
    30 7/0.53 1.5 0.6 1.8 35.8
    50 7/0.53 1.5 0.6 2.2 46.2
    stranded conductor 2.5 mm^2 (7/0.67mm)
    2 7/0.67 2.5 0.6 1 13.5
    5 7/0.67 2.5 0.6 1.2 17.9
    10 7/0.67 2.5 0.6 1.5 25.9
    15 7/0.67 2.5 0.6 1.6 30.1
    20 7/0.67 2.5 0.6 1.8 34.3
    30 7/0.67 2.5 0.6 2 40.8
    50 7/0.67 2.5 0.6 2.4 52.6
