    NF M 87-202 EGFA

    Application and Description

    These NF M 87-202 EGFA instrumentation cables are used to transmit analogue or digital signals in measurement and process control where chemicals may be present.

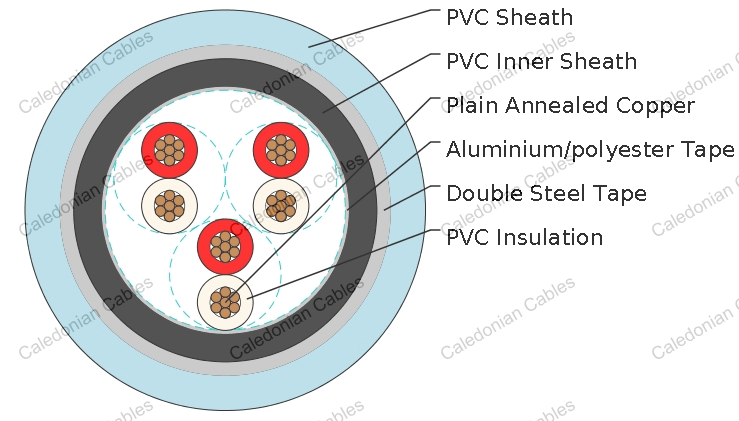

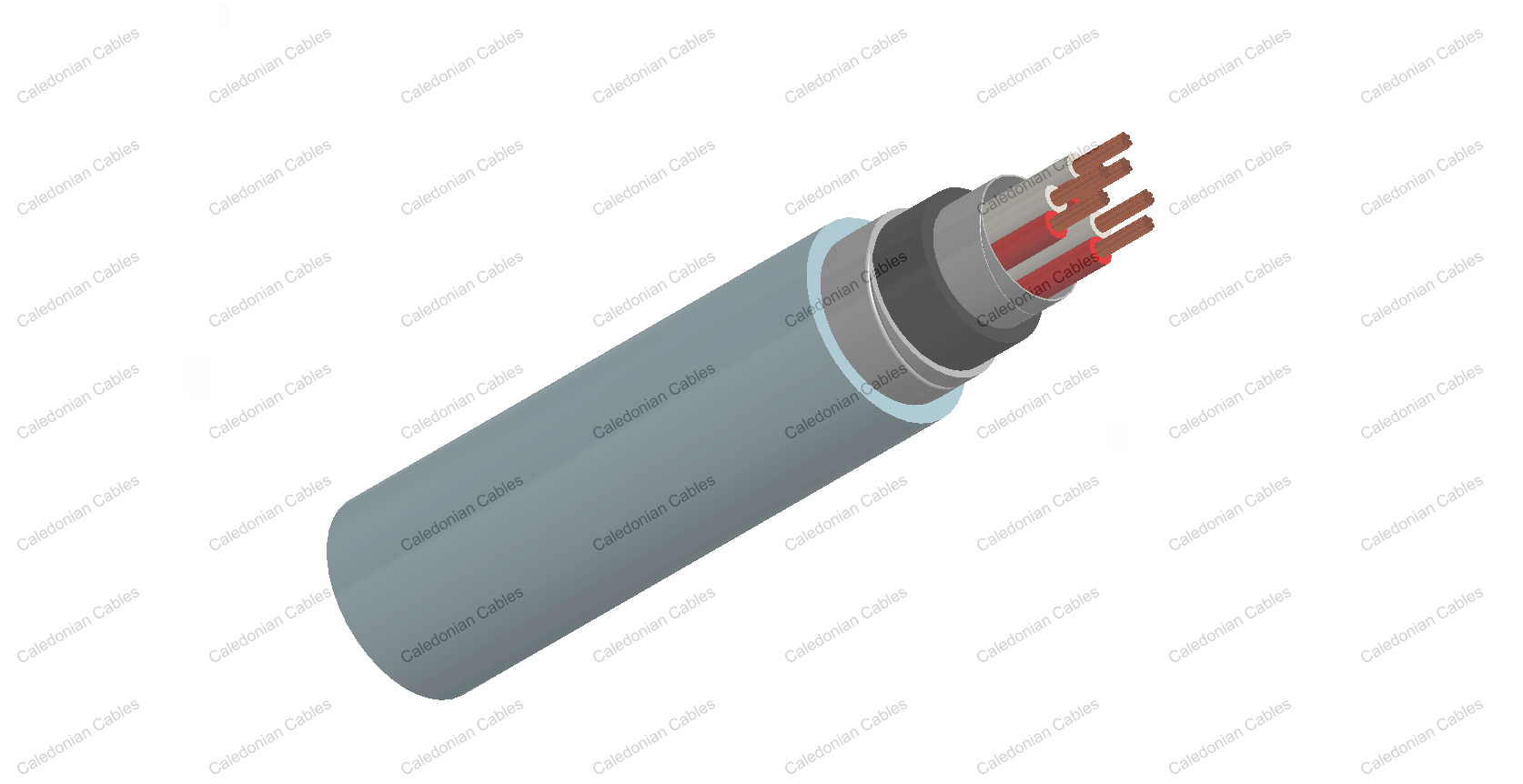

    Cable Construction

    Conductor Solid or Stranded copper conductor
    Insulation PVC (70 mm maximum pair length)
    Binder tape Polyster tape
    Collective Screen Aluminium/polyester tape
    Inner Sheath PVC
    Armouring Double Steel Tap
    Outer Sheath PVC (Flame retardant, sunlight, mineral oil and hydrocarton resistant)
    Outer Sheath Colour Light-blue

    Core identification

    Colours Natural Red Blue Yellow
    1 pair
    1 triple
    1 quad

    Natural cores printed with pair/triple number

    Standards References

    • NF M 87-202
    • UTE C 32-014
    • NF C 32-020
    • IEC 60332-1
    • IEC 60332-3-24

    Characteristics

    Voltage Rationg 300/500V
    Operating Temperature -40°C/+90°C
    Installation Temperature MAX+50°C
    Maximum Voltage 250V
    Voltage Test 2000V

    Maximum conductor d.c. Resistance

    Conductor Size Ohm/km at +20°C
    1/0.80mm(0.50 sqmm) 37.50
    7/0.40mm(0.88 sqmm) 21.40
    7/0.53mm(1.50 sqmm) 12.50

    Capacitance between cond. (nf/km)

    • 0.5 sqmm ≤ 145
    • 0.88 sqmm ≤ 160
    • 1.50 sqmm ≤ 180

    Type/codification

    1 Serie Number of pairs, triples or quads / 01 to 27
    2 Serie Lay up in pair(IP) ,triple (IT) , quads (IQ)
    3 Serie Core section 05 (0.5mm²) , 09 (0.88 mm²) or 15(1.5mm²)
    4 Serie Overall screen(EG) or individual screen + overall screen(EI)
    5 Serie Mechanical protection: without armour (SF), with armour (FA), with lead + armour(PF)

    Cable Parameter

    NF M 87-202 Number of beams x cross section Cond.
    mm²
    Outer Diameter(mm) Weight (kg/km)
          Min. Max
    03 IP 05 EGFA 3X2X0.5 0.50 10.90 12.50 215
    07 IP 05 EGFA 7X2X 0.5 0.50 13.60 15.60 320
    12 IP 05 EGFA 12X2X 0.5 0.50 16.60 19.10 465
    19 IP 05 EGFA 19X2X 0.5 0.50 20.00 22.90 640
    27 IP 05 EGFA 27X2X 0.5 0.50 22.60 25.90 610
    01 IQ 09 EGFA 1X4X0.88 0.88 10.00 11.40 195
    01 IP 09 EGFA 1X2X0.88 0.88 9.10 10.50 160
    03 IP 09 EGFA 3X2X0.88 0.88 13.50 15.50 310
    07 IP 09 EGFA 7X2X0.88 0.88 17.20 19.70 475
    12 IP 09 EGFA 12X2X0.88 0.88 21.30 24.40 720
    19 IP 09 EGFA 19X2X0.88 0.88 25.70 29.40 1000
    27 IP 09 EGFA 27X2X0.88 0.88 29.60 34.00 1300
    07 IT 05 EGFA 7X3X0.50 0.50 15.10 17.30 405
    12 IT 05 EGFA 12X3X0.50 0.50 18.40 21.10 580
    01 IT 09 EGFA 1X3X0.88 0.88 9.40 10.80 175
    07 IT 09 EGFA 7X3X0.88 0.88 19.20 22.00 625
    12 IT 09 EGFA 12X3X0.88 0.88 23.70 27.10 955
    01 IT 15 EGFA 1X3X1.50 1.50 10.50 12.00 220
