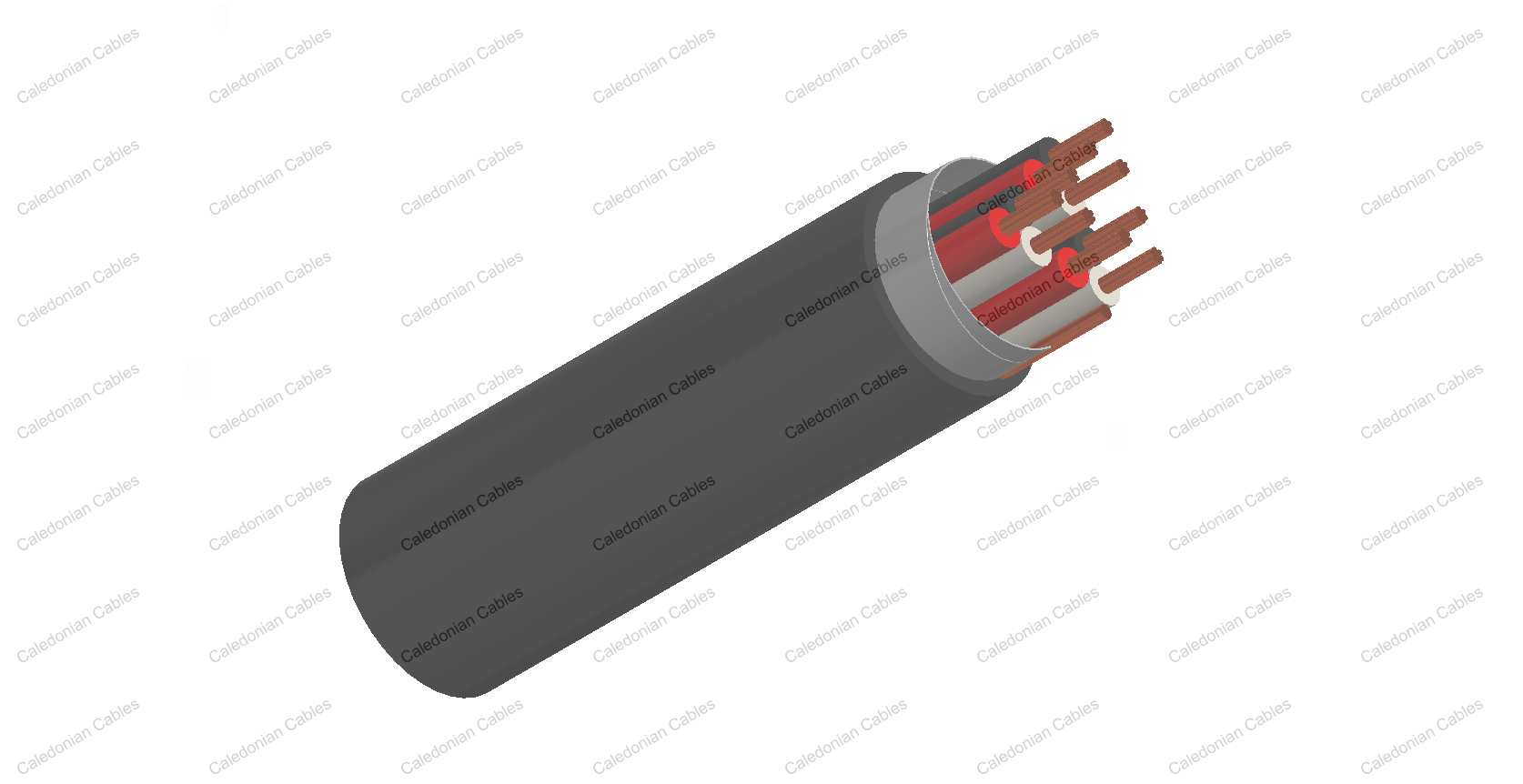

    XLPE Insulated, PVC Sheathed & Overall Screened Instrumentation Cables (Multitriple)

    APPLICATION

    For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

    STANDARDS

    Basic design to EN 50288-7

    FIRE PERFORMANCE

    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
    Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)*** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
    Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
    Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
    No Toxic gases NES 02-713; NF C 20-454

    Note: Asterisk * denotes superseded standard, *** denotes optional.

    VOLTAGE RATING

    300V

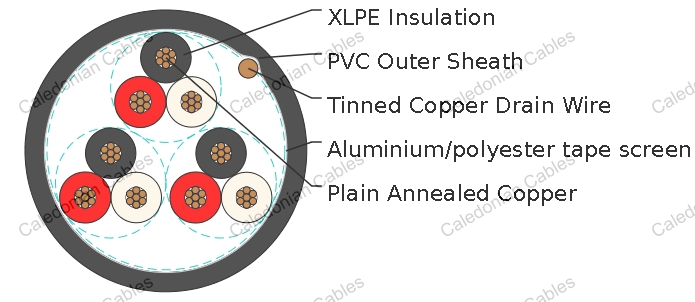

    CABLE CONSTRUCTION

    • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
    • Insulation: Extruded cross-linked XLPE compound as per EN 50290-2-29.
    • Triple: Three conductors twisted to form a triple
    • Lay-up: Triples laid up in layers of optimum pitch
    • Separator: Polyester tape
    • Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
    • Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

    COLOUR CODE

    • Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
    • Outer Sheath: Black or blue for intrinsically safe systems

    PHYSICAL and THERMAL PROPERTIES

    • Temperature Range During Operation (Fixed State): -30°C – +90°C
    • Temperature Range During Installation (Mobile State): -5°C – +50°C
    • Minimum Bending Radius: 7.5 X Overall Diameter
    • Sunlight Resistance: UL 1581 section 1200
    • Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

    ELECTRICAL ROPERTIES

    CONDUCTORAREASIZE 2 0.5 0.75 1.0 1.3 1.5
    INSULATIONTHICKNESS(NOMINAL) MM 0.35 0.38 0.4 0.45 0.45
    CONDUCTORRESISTANCE(20°C) Ω/KM 36.7 25.0 18.5 14.2 12.3
    INSULATIONRESISTANCE(20°C) MΩ.KM(MIN.) 5000
    MUTUALCAPACITANCE(1KHZ) UPTO4TRPLESPF/M(MAX.) 90 90 90 102 102
    ? ? ABOVE4TRPLESPF/M(MAX.) 75 75 75 85 85
    INDUCTANCE MH/KM(MAX.) 1
    L/R(RATIO)(MAX.) ΜH/Ω 25 25 25 40 40
    OPERATINGVOLTAGE V 300
    TESTVOLTAGEURMS CORETOCORE V 1500
    CORETOSCREEN V 1500

    CONSTRUCTION PARAMETERS

    CALEDONIAN CABLE CODE RE-2X(ST)Y
    NO. OF TRIPLES X3XCROSS SECTION NOMINAL INSULATION THICKNESS NOMINAL OUTER SHEATH THICKNESS NOMINAL OVERALL DIAMETER

    APPROX. WEIGHT

    ? NO.X3XMM2 MM MM MM KG/KM
    0.5mm2?, Multi-striple
    RE-2X(St)Y 2T0.5 2x3x0,50 0.35 0.9 8.4 91
    RE-2X(St)Y 4T0.5 4x3x0,50 0.35 1.0 9.8 123
    RE-2X(St)Y 5T0.5 5x3x0,50 0.35 1.0 10.8 155
    RE-2X(St)Y 6T0.5 6x3x0,50 0.35 1.0 12.1 185
    RE-2X(St)Y 8T0.5 8x3x0,50 0.35 1.1 13.1 221
    RE-2X(St)Y 10T0.5 10x3x0,50 0.35 1.1 14.7 275
    RE-2X(St)Y 12T0.5 12x3x0,50 0.35 1.1 15.2 316
    RE-2X(St)Y 16T0.5 16x3x0,50 0.35 1.2 17.4 414
    RE-2X(St)Y 20T0.5 20x3x0,50 0.35 1.2 19.1 508
    RE-2X(St)Y 24T0.5 24x3x0,50 0.35 1.3 20.9 594
    0.75mm2?, Multi-striple
    RE-2X(St)Y 2T0.75 2x3x0,75 0.38 0.9 9.3 114
    RE-2X(St)Y 4T0.75 4x3x0,75 0.38 1.0 10.9 163
    RE-2X(St)Y 5T0.75 5x3x0,75 0.38 1.0 12.0 199
    RE-2X(St)Y 6T0.75 6x3x0,75 0.38 1.1 13.7 245
    RE-2X(St)Y 8T0.75 8x3x0,75 0.38 1.1 14.7 296
    RE-2X(St)Y 10T0.75 10x3x0,75 0.38 1.2 16.7 366
    RE-2X(St)Y 12T0.75 12x3x0,75 0.38 1.2 17.3 423
    RE-2X(St)Y 16T0.75 16x3x0,75 0.38 1.3 19.7 555
    RE-2X(St)Y 20T0.75 20x3x0,75 0.38 1.3 21.7 681
    RE-2X(St)Y 24T0.75 24x3x0,75 0.38 1.4 23.7 802
    1.0mm2?, Multi-striple
    RE-2X(St)Y 2T1.0 2x3x1 0.4 1.0 10.4 135
    RE-2X(St)Y 4T1.0 4x3x1 0.4 1.0 11.9 202
    RE-2X(St)Y 5T1.0 5x3x1 0.4 1.0 13.2 251
    RE-2X(St)Y 6T1.0 6x3x1 0.4 1.1 15.0 303
    RE-2X(St)Y 8T1.0 8x3x1 0.4 1.1 16.1 379
    RE-2X(St)Y 10T1.0 10x3x1 0.4 1.2 18.4 461
    RE-2X(St)Y 12T1.0 12x3x1 0.4 1.2 19.0 544
    RE-2X(St)Y 16T1.0 16x3x1 0.4 1.3 21.7 717
    RE-2X(St)Y 20T1.0 20x3x1 0.4 1.4 24.1 880
    RE-2X(St)Y 24T1.0 24x3x1 0.4 1.4 26.1 1048
    1.3mm2?, Multi-striple
    RE-2X(St)Y 2T1.3 2x3x1,3 0.45 1.0 11.5 175
    RE-2X(St)Y 4T1.3 4x3x1,3 0.45 1.1 13.4 258
    RE-2X(St)Y 5T1.3 5x3x1,3 0.45 1.1 14.8 318
    RE-2X(St)Y 6T1.3 6x3x1,3 0.45 1.2 16.9 387
    RE-2X(St)Y 8T1.3 8x3x1,3 0.45 1.2 18.1 474
    RE-2X(St)Y 10T1.3 10x3x1,3 0.45 1.3 20.7 589
    RE-2X(St)Y 12T1.3 12x3x1,3 0.45 1.3 21.4 695
    RE-2X(St)Y 16T1.3 16x3x1,3 0.45 1.4 24.4 918
    RE-2X(St)Y 20T1.3 20x3x1,3 0.45 1.5 27.1 1124
    RE-2X(St)Y 24T1.3 24x3x1,3 0.45 1.6 29.6 1336
    1.5mm2?, Multi-striple
    RE-2X(St)Y 2T1.5 2x3x1,5 0.45 1.0 11.9 191
    RE-2X(St)Y 4T1.5 4x3x1,5 0.45 1.1 14.0 287
    RE-2X(St)Y 5T1.5 5x3x1,5 0.45 1.1 15.4 355
    RE-2X(St)Y 6T1.5 6x3x1,5 0.45 1.2 17.6 432
    RE-2X(St)Y 8T1.5 8x3x1,5 0.45 1.3 19.1 540
    RE-2X(St)Y 10T1.5 10x3x1,5 0.45 1.3 21.6 672
    RE-2X(St)Y 12T1.5 12x3x1,5 0.45 1.4 22.5 779
    RE-2X(St)Y 16T1.5 16x3x1,5 0.45 1.5 25.7 1031
    RE-2X(St)Y 20T1.5 20x3x1,5 0.45 1.6 28.6 1265
    RE-2X(St)Y 24T1.5 24x3x1,5 0.45 1.7 31.1 1508

    Note : Other conductor sizes & core configurations are available upon request.
