    XLPE Insulated, PVC Sheathed, Individual and Overall Screened & Double Steel Tape Armoured Instrumentation Cables (Multipair)

    APPLICATION

    For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

    STANDARDS

    Basic design to EN 50288-7

    FIRE PERFORMANCE

    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
    Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)*** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
    Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
    Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
    No Toxic gases NES 02-713; NF C 20-454

    Note: Asterisk * denotes superseded standard, *** denotes optional.

    VOLTAGE RATING

    300V

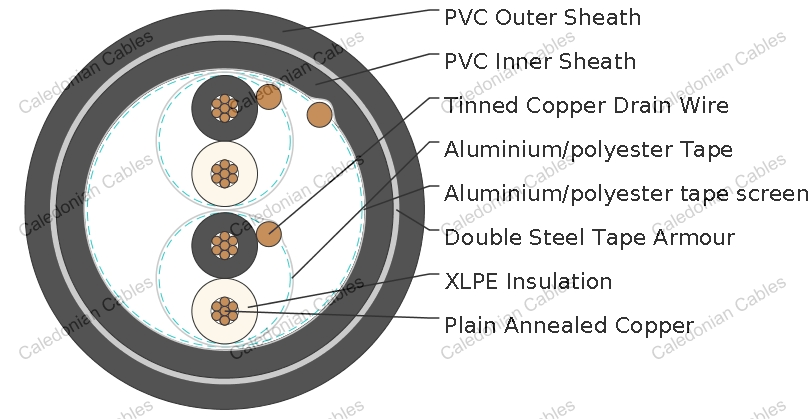

    CABLE CONSTRUCTION

    • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
    • Insulation: Extruded cross-linked XLPE compound as per EN 50290-2-29.
    • Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
    • Binder tape: Polyester (PEPT) Tape
    • Individual Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2, covered with extruded PVC.
    • Binder tape: Polyester (PEPT) Tape
    • Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2
    • Inner Sheath: PVC compound as per EN 50290-2-22.
    • Amouring: Double steel tape armour
    • Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

    COLOUR CODE

    • Insulation: Red / White
    • Outer Sheath: Gray

    PHYSICAL and THERMAL PROPERTIES

    • Temperature Range During Operation (Fixed State): -30°C – +70°C
    • Temperature Range During Installation (Mobile State): -5°C – +50°C
    • Minimum Bending Radius: 10 X Overall Diameter
    • Sunlight Resistance: UL 1581 section 1200
    • Oil Resistance: ASTM No: 2 (7 HRS 90°C)

    ELECTRICAL ROPERTIES

    CONDUCTOR AREA SIZE MM2 0.5 0.75 1.0 1.3 1.5
    INSULATION THICKNESS (NOMINAL) MM 0.4 0.4 0.4 0.45 0.45
    CONDUCTOR RESISTANCE (20°C) Ω/KM 36.7 25 18.5 14.2 12.3
    INSULATION RESISTANCE (20°C) MΩ.KM(MIN.) 5000
      INDIVIDUAL CONDUCTORS 1G
      INDIVIDUAL SCREENS 1M
    MUTUAL CAPACITANCE (1 KHZ) PF/M(MAX.) <150
    INDUCTANCE MH/KM (MAX.) 1
    L / R (RATIO) (MAX.) ΜH/Ω 25 25 25 40 40
    TEST VOLTAGE V (1MIN)
    AC 2000
    DC 3000

    CONSTRUCTION PARAMETERS

    CALEDONIAN CABLE CODE RE-2X(ST)YDSTAY PIMF
    NO. OF PAIRS X2XCROSS SECTION NOMINAL INSULATION THICK-NESS NOMINAL INNER SHEATH THICK-NESS NOMINAL OVERALL DIAMETER OVER INNER SHEATH NOMINAL
    ARMOUR
    STEEL
    TAPE
    THICK
    -NESS
    NOMINAL
    OVERALL
    DIAMETER
    OVER
    ARMOUR
    NOMINAL OUTER SHEATH THICK-NESS NOMINAL OVERALL DIAMETER APPROX. WEIGHT
      NO.X2XMM2 MM MM MM MM MM MM MM KG/KM
    RE-2X(St)YDSTAY
    PiMF 2P1.5
    2x2x1.5 0.6 1.2 14.0 0.2 14.8 1.5 17.8 390
