    XLPE Insulated, PVC Sheathed, Individual and Overall Screened & Armoured Instrumentation Cables (Multipair)

    RE-2X(St)YSWAY PIMF 90°C / 300V

    APPLICATION

    For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

    STANDARDS

    Basic design to EN 50288-7

    FIRE PERFORMANCE

    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
    Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)*** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
    Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
    Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
    No Toxic gases NES 02-713; NF C 20-454

    Note: Asterisk * denotes superseded standard, *** denotes optional.

    VOLTAGE RATING

    300V

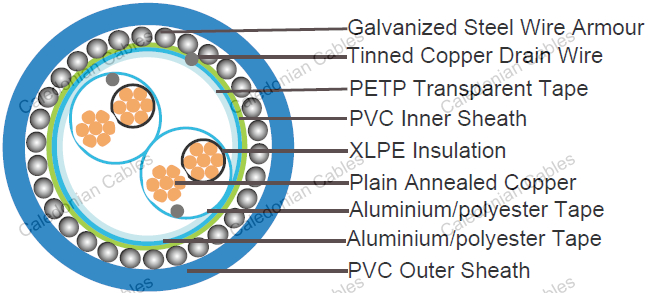

    CABLE CONSTRUCTION

    • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
    • Insulation: Extruded cross-linked XLPE compound as per EN 50290-2-29.
    • Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
    • Individual Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2
    • Binder tape: PETP transparent tape
    • Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2
    • Inner Sheath: PVC compound as per EN 50290-2-22.
    • Amouring: Galvanized steel wire armour
    • Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

    COLOUR CODE

    • Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
    • Outer Sheath: Black or blue for intrinsically safe systems

    PHYSICAL and THERMAL PROPERTIES

    • Temperature Range During Operation (Fixed State): -30°C – +90°C
    • Temperature Range During Installation (Mobile State): -5°C – +50°C
    • Minimum Bending Radius: 10 X Overall Diameter
    • Sunlight Resistance: UL 1581 section 1200
    • Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

    ELECTRICAL ROPERTIES

    CONDUCTOR AREA SIZE MM2 0.5 0.75 1.0 1.3 1.5
    INSULATION THICKNESS (NOMINAL) MM 0.4 0.4 0.4 0.45 0.45
    CONDUCTOR RESISTANCE (20°C) Ω/KM 36.7 25 18.5 14.2 12.3
    INSULATION RESISTANCE (20°C) MΩ.KM(MIN.) 5000
    MUTUAL CAPACITANCE (1 KHZ) PF/M(MAX.) 115
    INDUCTANCE MH/KM (MAX.) 1
    L / R (RATIO) (MAX.) ΜH/Ω 25 25 25 40 40
    OPERATING VOLTAGE URMS V 300

    TEST VOLTAGE

    CORE TO CORE V 1500
    CORE TO SCREEN V 1500

    CONSTRUCTION PARAMETERS

    CALEDONIAN CABLE CODE RE-2X(ST)YSWAY PIMF
    NO. OF PAIRS X2XCROSS SECTION

    NOMINAL INSULATION THICK-NESS

    NOMINAL INNER SHEATH THICK-NESS NOMINALOVERALL DIAMETER OVER INNER SHEATH

    NOMINAL ARMOUR WIRE DIAMETER

    NOMINAL OUTER SHEATH THICK-NESS NOMINAL OVERALL DIAMETER APPROX. WEIGHT
      NO.X2XMM2 MM MM MM MM MM MM KG/KM
    0.5MM2, MULTIPAIR
    RE-2X(St)YSWAY PiMF 2P0.5 2x2x0.5 0.35 0.9 8.7 0.9 1.4 13.3 311
    RE-2X(St)YSWAY PiMF 4P0.5 4x2x0.5 0.35 1.0 10.2 0.9 1.4 14.8 373
    RE-2X(St)YSWAY PiMF 5P0.5 5x2x0.5 0.35 1.0 11.2 0.9 1.4 15.8 451
    RE-2X(St)YSWAY PiMF 6P0.5 6x2x0.5 0.35 1.0 12.1 0.9 1.6 16.9 483
    RE-2X(St)YSWAY PiMF 8P0.5 8x2x0.5 0.35 1.1 13.1 0.9 1.6 17.9 537
    RE-2X(St)YSWAY PiMF 10P0.5 10x2x0.5 0.35 1.2 15.1 0.9 1.5 19.9 781
    RE-2X(St)YSWAY PiMF 12P0.5 12x2x0.5 0.35 1.2 15.7 0.9 1.5 20.5 804
    RE-2X(St)YSWAY PiMF 16P0.5 16x2x0.5 0.35 1.2 17.8 1.25 1.6 23.5 968
    RE-2X(St)YSWAY PiMF 20P0.5 20x2x0.5 0.35 1.3 19.7 1.25 1.7 25.6 1143
    RE-2X(St)YSWAY PiMF 24P0.5 24x2x0.5 0.35 1.4 21.5 1.25 1.7 27.4 1264
    0.75mm2, Multipair
    RE-2X(St)YSWAY PiMF 2P0.75 2x2x0.75 0.38 1.0 9.7 0.9 1.4 14.3 342
    RE-2X(St)YSWAY PiMF 4P0.75 3x2x0.75 0.38 1.0 11.2 0.9 1.4 15.8 439
    RE-2X(St)YSWAY PiMF 5P0.75 4x2x0.75 0.38 1.1 12.5 0.9 1.5 17.3 496
    RE-2X(St)YSWAY PiMF 6P0.75 5x2x0.75 0.38 1.1 13.6 0.9 1.5 18.4 578
    RE-2X(St)YSWAY PiMF 8P0.75 8x2x0.75 0.38 1.1 14.4 0.9 1.5 19.2 664
    RE-2X(St)YSWAY PiMF 10P0.75 10x2x0.75 0.38 1.2 16.6 1.25 1.6 22.3 876
    RE-2X(St)YSWAY PiMF 12P0.75 12x2x0.75 0.38 1.2 17.4 1.25 1.6 23.1 942
    RE-2X(St)YSWAY PiMF 16P0.75 16x2x0.75 0.38 1.3 19.8 1.25 1.7 25.7 1130
    RE-2X(St)YSWAY PiMF 20P0.75 20x2x0.75 0.38 1.4 22.0 1.25 1.7 27.9 1325
    RE-2X(St)YSWAY PiMF 24P0.75 24x2x0.75 0.38 1.5 24.0 1.25 1.8 30.1 1490
    1.0mm2, Multipair
    RE-2X(St)YSWAY PiMF 2P1.0 2x2x1.0 0.4 1.0 10.4 0.9 1.4 15.0 382
    RE-2X(St)YSWAY PiMF 4P1.0 3x2x1.0 0.4 1.0 12.1 0.9 1.4 16.7 487
    RE-2X(St)YSWAY PiMF 5P1.0 4x2x1.0 0.4 1.1 13.5 0.9 1.5 18.3 566
    RE-2X(St)YSWAY PiMF 6P1.0 5x2x1.0 0.4 1.1 14.7 0.9 1.5 19.5 641
    RE-2X(St)YSWAY PiMF 8P1.0 8x2x1.0 0.4 1.2 15.8 0.9 1.5 20.6 718
    RE-2X(St)YSWAY PiMF 10P1.0 10x2x1.0 0.4 1.2 18.0 1.25 1.6 23.7 994
    RE-2X(St)YSWAY PiMF 12P1.0 12x2x1.0 0.4 1.3 19.0 1.25 1.7 24.7 1083
    RE-2X(St)YSWAY PiMF 16P1.0 16x2x1.0 0.4 1.3 21.5 1.25 1.7 27.4 1361
    RE-2X(St)YSWAY PiMF 20P1.0 20x2x1.0 0.4 1.4 23.9 1.25 1.7 29.8 1510
    RE-2X(St)YSWAY PiMF 24P1.0 24x2x1.0 0.4 1.5 26.1 1.25 1.8 32.2 1902
    1.3mm2, Multipair
    RE-2X(St)YSWAY PiMF 2P1.3 2x2x1.3 0.45 1.0 11.4 0.9 1.4 16.0 452
    RE-2X(St)YSWAY PiMF 4P1.3 3x2x1.3 0.45 1.1 13.4 0.9 1.5 18.2 576
    RE-2X(St)YSWAY PiMF 5P1.3 4x2x1.3 0.45 1.1 14.8 0.9 1.5 19.6 647
    RE-2X(St)YSWAY PiMF 6P1.3 5x2x1.3 0.45 1.2 16.3 0.9 1.6 21.3 857
    RE-2X(St)YSWAY PiMF 8P1.3 8x2x1.3 0.45 1.3 17.6 1.25 1.6 23.3 980
    RE-2X(St)YSWAY PiMF 10P1.3 10x2x1.3 0.45 1.3 20.0 1.25 1.7 25.9 1195
    RE-2X(St)YSWAY PiMF 12P1.3 12x2x1.3 0.45 1.4 21.1 1.25 1.7 27.0 1256
    RE-2X(St)YSWAY PiMF 16P1.3 16x2x1.3 0.45 1.5 24.1 1.25 1.8 30.2 1562
    RE-2X(St)YSWAY PiMF 20P1.3 20x2x1.3 0.45 1.6 26.8 1.25 1.9 33.1 1958
    RE-2X(St)YSWAY PiMF 24P1.3 24x2x1.3 0.45 1.7 29.2 1.25 2.0 36.4 2251
    1.5mm2, Multipair
    RE-2X(St)YSWAY PiMF 2P1.5 2x2x1.5 0.45 1.0 11.8 0.9 1.5 16.6 475
    RE-2X(St)YSWAY PiMF 4P1.5 3x2x1.5 0.45 1.1 13.9 0.9 1.5 18.7 599
    RE-2X(St)YSWAY PiMF 5P1.5 4x2x1.5 0.45 1.2 15.5 0.9 1.5 20.3 818
    RE-2X(St)YSWAY PiMF 6P1.5 5x2x1.5 0.45 1.2 16.9 1.25 1.6 22.6 940
    RE-2X(St)YSWAY PiMF 8P1.5 8x2x1.5 0.45 1.3 18.2 1.25 1.7 24.1 1037
    RE-2X(St)YSWAY PiMF 10P1.5 10x2x1.5 0.45 1.4 21.0 1.25 1.7 26.9 1273
    RE-2X(St)YSWAY PiMF 12P1.5 12x2x1.5 0.45 1.4 21.9 1.25 1.7 27.8 1353
    RE-2X(St)YSWAY PiMF 16P1.5 16x2x1.5 0.45 1.5 25.1 1.25 1.8 31.2 1932
    RE-2X(St)YSWAY PiMF 20P1.5 20x2x1.5 0.45 1.6 27.8 1.25 1.9 34.8 2224
    RE-2X(St)YSWAY PiMF 24P1.5 24x2x1.5 0.45 1.7 30.4 1.25 2.0 37.6 2541

    Note: Other conductor sizes & core configurations are available upon request.
