XLPE Insulated, LSZH Sheathed & Overall Screened Instrumentation Cables (Multicore)

RE-2X(St)H 90°C / 500V

Application

The LSZH sheathed cables are generally use for indoor installation and suitable for wet and damp areas. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services.Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

Standards

Basic design to EN 50288-7

Fire Performance

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation(Vertically-mounted bundled wires & cable test)***	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454
Sunlight Resistance	UL 1581 section 1200
Oil Resistance**	ICEA S-73-532

Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

Voltage Rating

500V

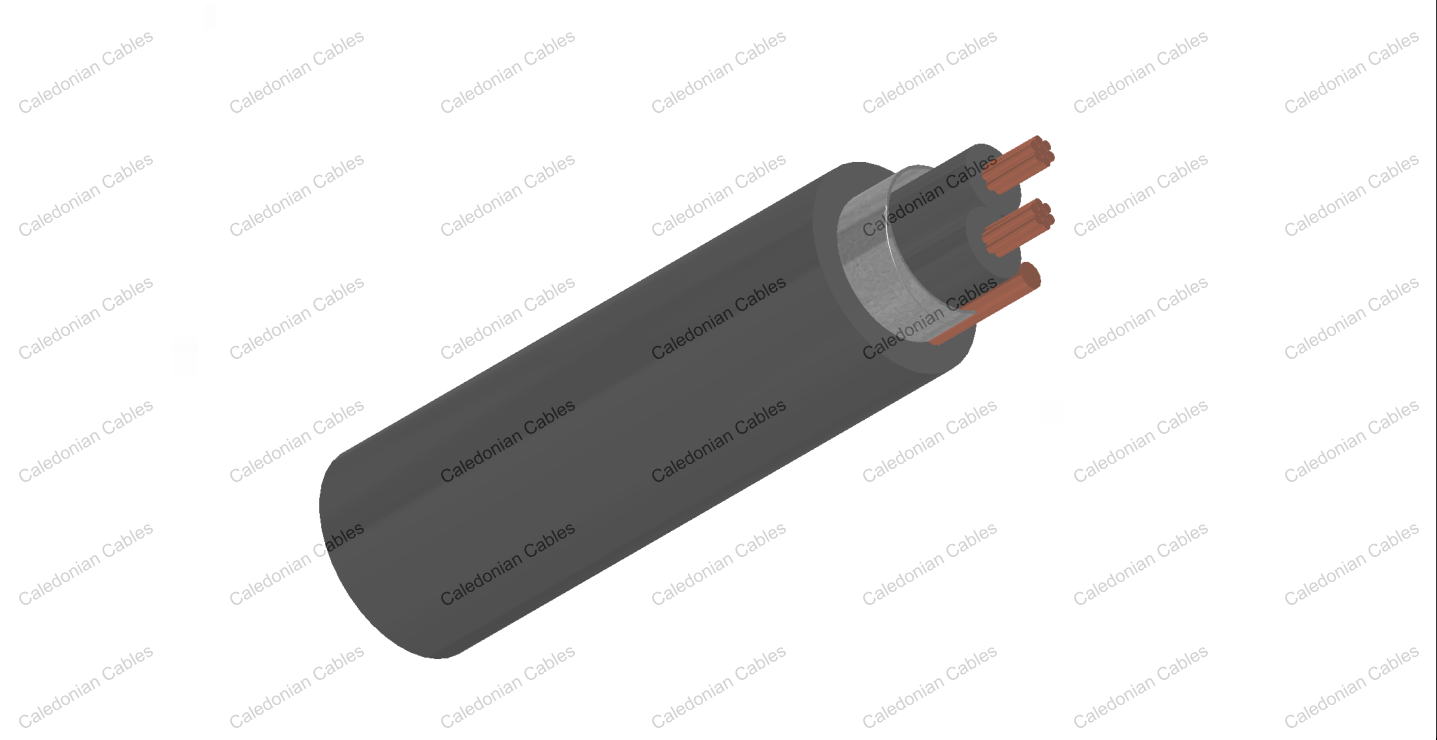

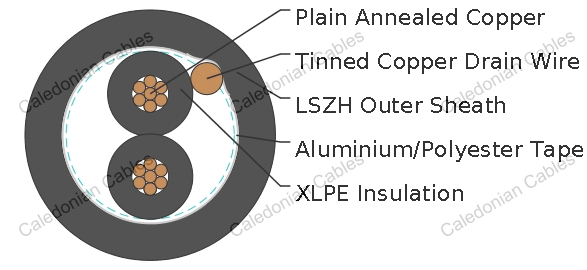

Cable Construction

Conductor : Annealed copper solid or plain copper stranded to IEC 60228 Class 2.

Insulation : Extruded cross-linked XLPE compound, EN 50290. 2-29.

Overall Screen : Aluminium/polyester tape with tinned copper drain wire, 0.5mm²

Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound typeSW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

Colour Code

Insulation : Black numbered

Outer Sheath : Black, blue for intrinsically safe systems

Physical and Thermal Properties

Temperature Range During Operation (Fixed State) : -30°C – +90°C

Temperature Range During Installation (Mobile State) : -5°C – +50°C

Minimum Bending Radius : 7.5 × Overall Diameter

Electrical Roperties

Conductor Area Size		mm²	0.5	0.75	1.0	1.3	1.5	2.5
Insulation thickness (nominal)		mm	0.55	0.55	0.55	0.6	0.6	0.7
Conductor resistance (20°C)		Ω/km	36.7	25.0	18.5	14.2	12.3	7.4
Insulation resistance (20°C)		MΩ.km(Min.)	5000
Mutual Capacitance (1 kHz)		pF/m(Max.)	115
Capacitance unbalance(1 kHz)		pF/500 m (Max.)	500
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40	60
Operating voltage		V	500
Test Voltage Urms	Core to Core	V	2000
Test Voltage Urms	Core to Screen	V	2000

Construction Parameterst

Caledonian Cable Code	RE-2X(St)H
	No. of Core x1xCross Section	Nominal Insulation Thickness	Nominal Sheath Thickness	NominalOverall Diameter	Approx. Weight
	No.×1×mm²	mm	mm	mm	kg/km
0.5mm², Multicore
RE-2X(St)H 2C0.5	2x1x0.5	0.55	0.9	6.2	47
RE-2X(St)H 3C0.5	3x1x0.5	0.55	0.9	6.5	50
RE-2X(St)H 4C0.5	4x1x0.5	0.55	0.9	7.0	60
RE-2X(St)H 5C0.5	5x1x0.5	0.55	0.9	7.6	71
RE-2X(St)H 8C0.5	8x1x0.5	0.55	1.0	9.1	95
RE-2X(St)H 10C0.5	10x1x0.5	0.55	1.0	10.4	127
RE-2X(St)H 12C0.5	12x1x0.5	0.55	1.0	10.7	151
RE-2X(St)H 14C0.5	14x1x0.5	0.55	1.0	11.3	162
RE-2X(St)H 16C0.5	16x1x0.5	0.55	1.1	11.8	180
RE-2X(St)H 20C0.5	20x1x0.5	0.55	1.1	13.3	222
RE-2X(St)H 24C0.5	24x1x0.5	0.55	1.1	14.7	274
RE-2X(St)H 27C0.5	27x1x0.5	0.55	1.2	15.0	282
RE-2X(St)H 30C0.5	30x1x0.5	0.55	1.2	15.7	318
RE-2X(St)H 37C0.5	37x1x0.5	0.55	1.2	16.9	372
RE-2X(St)H 40C0.5	40x1x0.5	0.55	1.2	17.6	372
0.75mm², Multicore
RE-2X(St)H 2C0.75	2x1x0.75	0.55	0.9	6.5	51
RE-2X(St)H 3C0.75	3x1x0.75	0.55	0.9	6.9	62
RE-2X(St)H 4C0.75	4x1x0.75	0.55	0.9	7.4	74
RE-2X(St)H 5C0.75	5x1x0.75	0.55	0.9	8.1	96
RE-2X(St)H 8C0.75	8x1x0.75	0.55	1.0	9.7	126
RE-2X(St)H 10C0.75	10x1x0.75	0.55	1.0	11.1	156
RE-2X(St)H 12C0.75	12x1x0.75	0.55	1.0	11.5	183
RE-2X(St)H 14C0.75	14x1x0.75	0.55	1.1	12.2	200
RE-2X(St)H 16C0.75	16x1x0.75	0.55	1.1	12.9	224
RE-2X(St)H 20C0.75	20x1x0.75	0.55	1.1	14.3	284
RE-2X(St)H 24C0.75	24x1x0.75	0.55	1.2	16.0	324
RE-2X(St)H 27C0.75	27x1x0.75	0.55	1.2	16.3	363
RE-2X(St)H 30C0.75	30x1x0.75	0.55	1.2	16.9	396
RE-2X(St)H 37C0.75	37x1x0.75	0.55	1.2	18.2	472
RE-2X(St)H 40C0.75	40x1x0.75	0.55	1.3	19.1	514
1.0mm², Multicore
RE-2X(St)H 2C1.0	2x1x1.0	0.55	0.9	6.9	61
RE-2X(St)H 3C1.0	3x1x1.0	0.55	0.9	7.3	70
RE-2X(St)H 4C1.0	4x1x1.0	0.55	0.9	7.9	85
RE-2X(St)H 5C1.0	5x1x1.0	0.55	0.9	8.6	109
RE-2X(St)H 8C1.0	8x1x1.0	0.55	1.0	10.3	157
RE-2X(St)H 10C1.0	10x1x1.0	0.55	1.0	11.9	193
RE-2X(St)H 12C1.0	12x1x1.0	0.55	1.0	12.2	214
RE-2X(St)H 14C1.0	14x1x1.0	0.55	1.1	13.0	243
RE-2X(St)H 16C1.0	16x1x1.0	0.55	1.1	13.7	280
RE-2X(St)H 20C1.0	20x1x1.0	0.55	1.1	15.2	336
RE-2X(St)H 24C1.0	24x1x1.0	0.55	1.2	17.0	414
RE-2X(St)H 27C1.0	27x1x1.0	0.55	1.2	17.4	443
RE-2X(St)H 30C1.0	30x1x1.0	0.55	1.2	18.0	484
RE-2X(St)H 37C1.0	37x1x1.0	0.55	1.2	19.6	590
RE-2X(St)H 40C1.0	40x1x1.0	0.55	1.3	20.4	631
1.3mm², Multicore
RE-2X(St)H 2C1.3	2x1x1.3	0.6	0.9	7.4	69
RE-2X(St)H 3C1.3	3x1x1.3	0.6	0.9	7.9	83
RE-2X(St)H 4C1.3	4x1x1.3	0.6	0.9	8.5	105
RE-2X(St)H 5C1.3	5x1x1.3	0.6	1.0	9.5	135
RE-2X(St)H 8C1.3	8x1x1.3	0.6	1.0	11.2	186
RE-2X(St)H 10C1.3	10x1x1.3	0.6	1.1	13.2	228
RE-2X(St)H 12C1.3	12x1x1.3	0.6	1.1	13.6	269
RE-2X(St)H 14C1.3	14x1x1.3	0.6	1.1	14.3	305
RE-2X(St)H 16C1.3	16x1x1.3	0.6	1.1	15.0	351
RE-2X(St)H 20C1.3	20x1x1.3	0.6	1.2	16.9	423
RE-2X(St)H 24C1.3	24x1x1.3	0.6	1.2	18.7	507
RE-2X(St)H 27C1.3	27x1x1.3	0.6	1.3	19.3	558
RE-2X(St)H 30C1.3	30x1x1.3	0.6	1.3	20.0	611
RE-2X(St)H 37C1.3	37x1x1.3	0.6	1.3	21.6	743
RE-2X(St)H 40C1.3	40x1x1.3	0.6	1.4	22.7	796
1.5mm², Multicore
RE-2X(St)H 2C1.5	2x1x1.5	0.6	0.9	7.7	78
RE-2X(St)H 3C1.5	3x1x1.5	0.6	0.9	8.1	98
RE-2X(St)H 4C1.5	4x1x1.5	0.6	0.9	8.8	120
RE-2X(St)H 5C1.5	5x1x1.5	0.6	1.0	9.8	153
RE-2X(St)H 8C1.5	8x1x1.5	0.6	1.0	11.6	218
RE-2X(St)H 10C1.5	10x1x1.5	0.6	1.1	13.7	268
RE-2X(St)H 12C1.5	12x1x1.5	0.6	1.1	14.1	315
RE-2X(St)H 14C1.5	14x1x1.5	0.6	1.1	14.8	341
RE-2X(St)H 16C1.5	16x1x1.5	0.6	1.1	15.6	392
RE-2X(St)H 20C1.5	20x1x1.5	0.6	1.2	17.6	484
RE-2X(St)H 24C1.5	24x1x1.5	0.6	1.3	19.6	579
RE-2X(St)H 27C1.5	27x1x1.5	0.6	1.3	20.1	626
RE-2X(St)H 30C1.5	30x1x1.5	0.6	1.3	20.8	685
RE-2X(St)H 37C1.5	37x1x1.5	0.6	1.4	22.6	834
RE-2X(St)H 40C1.5	40x1x1.5	0.6	1.4	23.6	898
2.5mm², Multicore
RE-2X(St)H 2C2.5	2x1x2.5	0.7	0.9	8.9	111
RE-2X(St)H 3C2.5	3x1x2.5	0.7	1.0	9.7	132
RE-2X(St)H 4C2.5	4x1x2.5	0.7	1.0	10.5	169
RE-2X(St)H 5C2.5	5x1x2.5	0.7	1.0	11.9	209
RE-2X(St)H 8C2.5	8x1x2.5	0.7	1.1	13.9	321
RE-2X(St)H 10C2.5	10x1x2.5	0.7	1.2	16.3	386
RE-2X(St)H 12C2.5	12x1x2.5	0.7	1.2	16.9	447
RE-2X(St)H 14C2.5	14x1x2.5	0.7	1.2	17.7	509
RE-2X(St)H 16C2.5	16x1x2.5	0.7	1.3	18.9	585
RE-2X(St)H 20C2.5	20x1x2.5	0.7	1.3	21.1	712
RE-2X(St)H 24C2.5	24x1x2.5	0.7	1.4	23.6	855
RE-2X(St)H 27C2.5	27x1x2.5	0.7	1.4	24.1	956
RE-2X(St)H 30C2.5	30x1x2.5	0.7	1.5	25.2	1049
RE-2X(St)H 37C2.5	37x1x2.5	0.7	1.5	27.2	1277
RE-2X(St)H 40C2.5	40x1x2.5	0.7	1.6	28.5	1370
