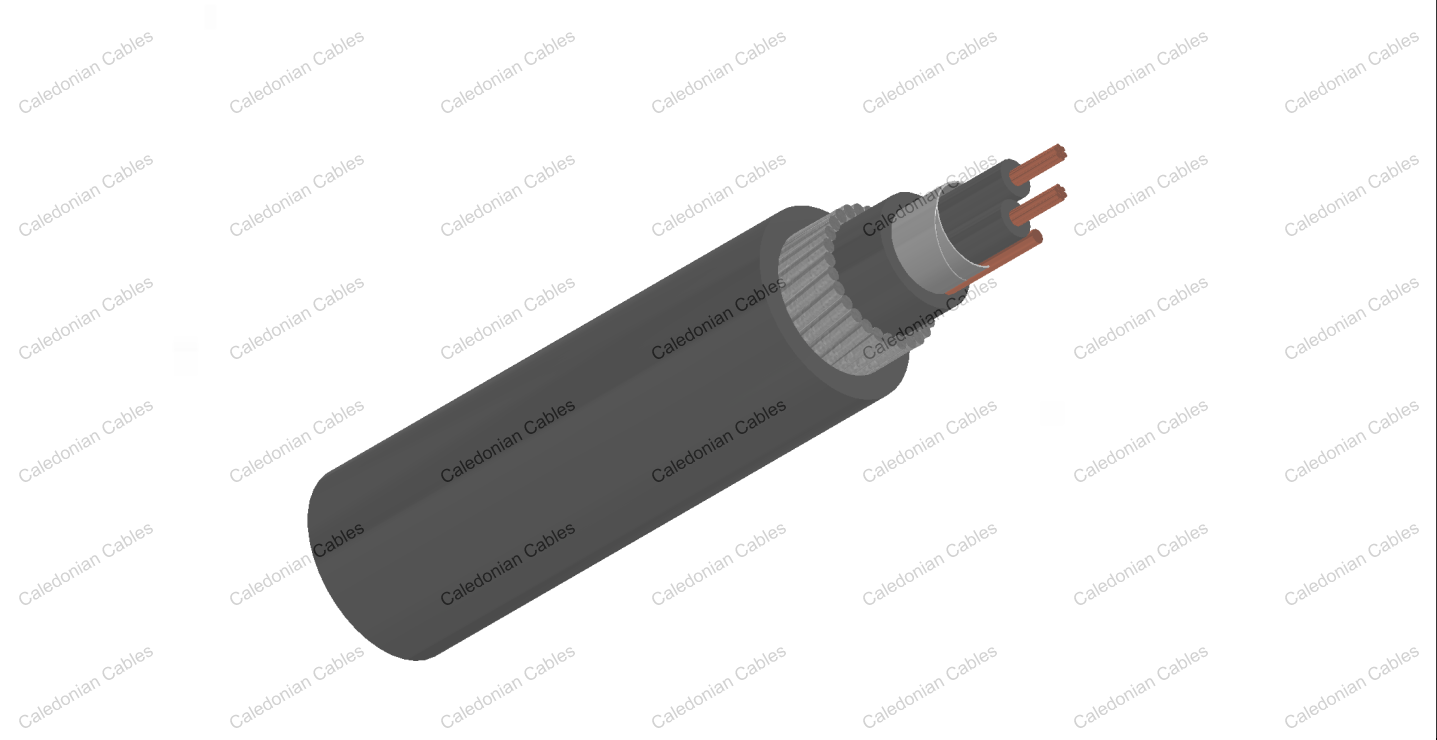

    XLPE Insulated, LSZH Sheathed, Overall Screened & Armoured Instrumentation Cables (Multicore)

    RE-2X(St)HSWAH 90°C / 500V

    Application

    The LSZH sheathed cables are generally use for indoor installation and suitable for wet and damp areas. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipmentand instruments, the LSZH sheath can reduce toxic smoke and fume emission.

    Standards

    Basic design to EN 50288-7

    Fire Performance

    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2);CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
    Reduced Fire Propagation(Vertically-mounted bundled wires & cable test)*** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
    Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;CEI 20-37/2-1 ; BS 6425-1*
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;CEI 20-37/2-2 ; BS 6425-2*
    Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
    No Toxic gases NES 02-713; NF C 20-454
    Sunlight Resistance UL 1581 section 1200
    Oil Resistance** ICEA S-73-532

    Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

    Voltage Rating

    500V

    Cable Construction

    Conductor : Annealed copper solid or plain copper stranded to IEC 60228 Class 2.

    Insulation : Extruded cross-linked XLPE compound, EN 50290. 2-29.

    Overall Screen : Aluminium/polyester tape with tinned copper drain wire, 0.5mm²

    Inner Sheath : LSZH compound

    Armouring : Galvanised steel wire

    Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound typeSW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

    Colour Code

    Insulation : Black numbered

    Outer Sheath : Black, blue for intrinsically safe systems

    Physical and Thermal Properties

    Temperature Range During Operation (Fixed State) : -30°C – +90°C

    Temperature Range During Installation (Mobile State) : -5°C – +50°C

    Minimum Bending Radius : 10 × Overall Diameter

    Electrical Roperties

    Conductor Area Size mm² 0.5 0.75 1.0 1.3 1.5 2.5
    Insulation thickness (nominal) mm 0.55 0.55 0.55 0.6 0.6 0.7
    Conductor resistance (20°C) Ω/km 36.7 25.0 18.5 14.2 12.3 7.4
    Insulation resistance (20°C) MΩ.km(Min.) 5000 5000 5000 5000 5000 5000
    Mutual Capacitance (1 kHz) pF/m(Max.) 115 115 115 115 115 115
    Capacitance unbalance(1 kHz) pF/500 m (Max.) 500 500 500 500 500 500
    Inductance mH/km(Max.) 1 1 1 1 1 1
    L / R (ratio) (max.) μH/Ω 25 25 25 40 40 40
    Operating voltage V 500 500 500 500 500 500
    Test Voltage Urms Core to Core V 2000 2000 2000 2000 2000 2000
    Core to Screen V 2000 2000 2000 2000 2000 2000

    Construction Parameterst

    Caledonian Cable Code RE-2X(St)HSWAH
    No. of Core x 1 x Cross Section Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Overall Diameter Over Inner Sheath Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Nominal Overall Diameter Approx. Weight
      No.x1xmm² mm mm mm mm mm mm kg/km
    0.5mm², Multicore
    RE-2X(St)HSWAH 2C0.5 2x1x0.5 0.55 0.9 6.2 0.9 1.3 10.6 210
    RE-2X(St)HSWAH 3C0.5 3x1x0.5 0.55 0.9 6.5 0.9 1.3 10.9 230
    RE-2X(St)HSWAH 4C0.5 4x1x0.5 0.55 0.9 7.0 0.9 1.3 11.4 253
    RE-2X(St)HSWAH 5C0.5 5x1x0.5 0.55 0.9 7.6 0.9 1.3 12.0 283
    RE-2X(St)HSWAH 8C0.5 8x1x0.5 0.55 1.0 9.1 0.9 1.4 13.7 344
    RE-2X(St)HSWAH 10C0.5 10x1x0.5 0.55 1.0 10.4 0.9 1.4 15.0 399
    RE-2X(St)HSWAH 12C0.5 12x1x0.5 0.55 1.0 10.7 0.9 1.4 15.3 442
    RE-2X(St)HSWAH 14C0.5 14x1x0.5 0.55 1.0 11.3 0.9 1.4 15.9 474
    RE-2X(St)HSWAH 16C0.5 16x1x0.5 0.55 1.1 11.8 0.9 1.4 16.4 505
    RE-2X(St)HSWAH 20C0.5 20x1x0.5 0.55 1.1 13.3 0.9 1.5 18.1 569
    RE-2X(St)HSWAH 24C0.5 24x1x0.5 0.55 1.1 14.7 0.9 1.5 19.5 642
    RE-2X(St)HSWAH 27C0.5 27x1x0.5 0.55 1.2 15.0 0.9 1.5 19.8 808
    RE-2X(St)HSWAH 30C0.5 30x1x0.5 0.55 1.2 15.7 0.9 1.5 20.5 848
    RE-2X(St)HSWAH 37C0.5 37x1x0.5 0.55 1.2 16.9 0.9 1.6 21.9 963
    RE-2X(St)HSWAH 40C0.5 40x1x0.5 0.55 1.2 17.6 1.25 1.6 23.3 1014
    0.75mm², Multicore
    RE-2X(St)HSWAH 2C0.75 2x1x0.75 0.55 0.9 6.5 0.9 1.3 10.9 230
    RE-2X(St)HSWAH 3C0.75 3x1x0.75 0.55 0.9 6.9 0.9 1.3 11.3 247
    RE-2X(St)HSWAH 4C0.75 4x1x0.75 0.55 0.9 7.4 0.9 1.3 11.8 278
    RE-2X(St)HSWAH 5C0.75 5x1x0.75 0.55 0.9 8.1 0.9 1.4 12.7 322
    RE-2X(St)HSWAH 8C0.75 8x1x0.75 0.55 1.0 9.7 0.9 1.4 14.3 383
    RE-2X(St)HSWAH 10C0.75 10x1x0.75 0.55 1.0 11.1 0.9 1.4 15.7 461
    RE-2X(St)HSWAH 12C0.75 12x1x0.75 0.55 1.0 11.5 0.9 1.4 16.1 477
    RE-2X(St)HSWAH 14C0.75 14x1x0.75 0.55 1.1 12.2 0.9 1.5 17.0 527
    RE-2X(St)HSWAH 16C0.75 16x1x0.75 0.55 1.1 12.9 0.9 1.5 17.7 572
    RE-2X(St)HSWAH 20C0.75 20x1x0.75 0.55 1.1 14.3 0.9 1.5 19.1 669
    RE-2X(St)HSWAH 24C0.75 24x1x0.75 0.55 1.2 16.0 0.9 1.5 20.8 877
    RE-2X(St)HSWAH 27C0.75 27x1x0.75 0.55 1.2 16.3 0.9 1.6 21.3 929
    RE-2X(St)HSWAH 30C0.75 30x1x0.75 0.55 1.2 16.9 0.9 1.6 21.9 986
    RE-2X(St)HSWAH 37C0.75 37x1x0.75 0.55 1.2 18.2 1.25 1.6 23.9 1102
    RE-2X(St)HSWAH 40C0.75 40x1x0.75 0.55 1.3 19.1 1.25 1.6 24.8 1181
    1.0mm², Multicore
    RE-2X(St)HSWAH 2C1.0 2x1x1.0 0.55 0.9 6.9 0.9 1.3 11.3 247
    RE-2X(St)HSWAH 3C1.0 3x1x1.0 0.55 0.9 7.3 0.9 1.3 11.7 270
    RE-2X(St)HSWAH 4C1.0 4x1x1.0 0.55 0.9 7.9 0.9 1.4 12.5 299
    RE-2X(St)HSWAH 5C1.0 5x1x1.0 0.55 0.9 8.6 0.9 1.4 13.2 342
    RE-2X(St)HSWAH 8C1.0 8x1x1.0 0.55 1.0 10.3 0.9 1.4 14.9 424
    RE-2X(St)HSWAH 10C1.0 10x1x1.0 0.55 1.0 11.9 0.9 1.4 16.5 514
    RE-2X(St)HSWAH 12C1.0 12x1x1.0 0.55 1.0 12.2 0.9 1.5 17.0 548
    RE-2X(St)HSWAH 14C1.0 14x1x1.0 0.55 1.1 13.0 0.9 1.5 17.8 590
    RE-2X(St)HSWAH 16C1.0 16x1x1.0 0.55 1.1 13.7 0.9 1.5 18.5 649
    RE-2X(St)HSWAH 20C1.0 20x1x1.0 0.55 1.1 15.2 0.9 1.5 20.0 864
    RE-2X(St)HSWAH 24C1.0 24x1x1.0 0.55 1.2 17.0 0.9 1.6 22.0 1005
    RE-2X(St)HSWAH 27C1.0 27x1x1.0 0.55 1.2 17.4 1.25 1.6 23.1 1058
    RE-2X(St)HSWAH 30C1.0 30x1x1.0 0.55 1.2 18.0 1.25 1.6 23.7 1113
    RE-2X(St)HSWAH 37C1.0 37x1x1.0 0.55 1.2 19.6 1.25 1.6 25.3 1271
    RE-2X(St)HSWAH 40C1.0 40x1x1.0 0.55 1.3 20.4 1.25 1.7 26.3 1351
    1.3mm², Multicore
    RE-2X(St)HSWAH 2C1.3 2x1x1.3 0.6 0.9 7.4 0.9 1.3 11.8 275
    RE-2X(St)HSWAH 3C1.3 3x1x1.3 0.6 0.9 7.9 0.9 1.3 12.3 ??
    RE-2X(St)HSWAH 4C1.3 4x1x1.3 0.6 0.9 8.5 0.9 1.4 13.1 340
    RE-2X(St)HSWAH 5C1.3 5x1x1.3 0.6 1.0 9.5 0.9 1.4 14.1 383
    RE-2X(St)HSWAH 8C1.3 8x1x1.3 0.6 1.0 11.2 0.9 1.4 15.8 483
    RE-2X(St)HSWAH 10C1.3 10x1x1.3 0.6 1.1 13.2 0.9 1.5 18.0 578
    RE-2X(St)HSWAH 12C1.3 12x1x1.3 0.6 1.1 13.6 0.9 1.5 18.4 633
    RE-2X(St)HSWAH 14C1.3 14x1x1.3 0.6 1.1 14.3 0.9 1.5 19.1 698
    RE-2X(St)HSWAH 16C1.3 16x1x1.3 0.6 1.1 15.0 0.9 1.5 19.8 870
    RE-2X(St)HSWAH 20C1.3 20x1x1.3 0.6 1.2 16.9 0.9 1.6 21.9 1014
    RE-2X(St)HSWAH 24C1.3 24x1x1.3 0.6 1.2 18.7 1.25 1.6 24.4 1163
    RE-2X(St)HSWAH 27C1.3 27x1x1.3 0.6 1.3 19.3 1.25 1.6 25.0 1227
    RE-2X(St)HSWAH 30C1.3 30x1x1.3 0.6 1.3 20.0 1.25 1.6 25.7 1305
    RE-2X(St)HSWAH 37C1.3 37x1x1.3 0.6 1.3 21.6 1.25 1.7 27.5 1504
    RE-2X(St)HSWAH 40C1.3 40x1x1.3 0.6 1.4 22.7 1.25 1.7 28.6 1584
    1.5mm², Multicore
    RE-2X(St)HSWAH 2C1.5 2x1x1.5 0.6 0.9 7.7 0.9 1.3 12.1 279
    RE-2X(St)HSWAH 3C1.5 3x1x1.5 0.6 0.9 8.1 0.9 1.4 12.7 322
    RE-2X(St)HSWAH 4C1.5 4x1x1.5 0.6 0.9 8.8 0.9 1.4 13.4 347
    RE-2X(St)HSWAH 5C1.5 5x1x1.5 0.6 1.0 9.8 0.9 1.4 14.4 392
    RE-2X(St)HSWAH 8C1.5 8x1x1.5 0.6 1.0 11.6 0.9 1.4 16.2 518
    RE-2X(St)HSWAH 10C1.5 10x1x1.5 0.6 1.1 13.7 0.9 1.5 18.5 614
    RE-2X(St)HSWAH 12C1.5 12x1x1.5 0.6 1.1 14.1 0.9 1.5 18.9 670
    RE-2X(St)HSWAH 14C1.5 14x1x1.5 0.6 1.1 14.8 0.9 1.5 19.6 742
    RE-2X(St)HSWAH 16C1.5 16x1x1.5 0.6 1.1 15.6 0.9 1.5 20.4 925
    RE-2X(St)HSWAH 20C1.5 20x1x1.5 0.6 1.2 17.6 1.25 1.6 23.3 1062
    RE-2X(St)HSWAH 24C1.5 24x1x1.5 0.6 1.3 19.6 1.25 1.6 25.3 1218
    RE-2X(St)HSWAH 27C1.5 27x1x1.5 0.6 1.3 20.1 1.25 1.6 25.8 1289
    RE-2X(St)HSWAH 30C1.5 30x1x1.5 0.6 1.3 20.8 1.25 1.7 26.7 1418
    RE-2X(St)HSWAH 37C1.5 37x1x1.5 0.6 1.4 22.6 1.25 1.7 28.5 1586
    RE-2X(St)HSWAH 40C1.5 40x1x1.5 0.6 1.4 23.6 1.25 1.7 29.5 1687
    2.52, Multicore
    RE-2X(St)HSWAH 2C2.5 2x1x2.5 0.7 0.9 8.9 0.9 1.4 13.5 364
    RE-2X(St)HSWAH 3C2.5 3x1x2.5 0.7 1.0 9.7 0.9 1.4 14.3 389
    RE-2X(St)HSWAH 4C2.5 4x1x2.5 0.7 1.0 10.5 0.9 1.4 15.1 430
    RE-2X(St)HSWAH 5C2.5 5x1x2.5 0.7 1.0 11.9 0.9 1.4 16.5 547
    RE-2X(St)HSWAH 8C2.5 8x1x2.5 0.7 1.1 13.9 0.9 1.5 18.7 684
    RE-2X(St)HSWAH 10C2.5 10x1x2.5 0.7 1.2 16.3 0.9 1.6 21.3 952
    RE-2X(St)HSWAH 12C2.5 12x1x2.5 0.7 1.2 16.9 0.9 1.6 21.9 1012
    RE-2X(St)HSWAH 14C2.5 14x1x2.5 0.7 1.2 17.7 1.25 1.6 23.4 1126
    RE-2X(St)HSWAH 16C2.5 16x1x2.5 0.7 1.3 18.9 1.25 1.6 24.6 1252
    RE-2X(St)HSWAH 20C2.5 20x1x2.5 0.7 1.3 21.1 1.25 1.7 27.0 1456
    RE-2X(St)HSWAH 24C2.5 24x1x2.5 0.7 1.4 23.6 1.25 1.7 29.5 1644
    RE-2X(St)HSWAH 27C2.5 27x1x2.5 0.7 1.4 24.1 1.25 1.8 30.2 1811
    RE-2X(St)HSWAH 30C2.5 30x1x2.5 0.7 1.5 25.2 1.25 1.8 31.3 2154
    RE-2X(St)HSWAH 37C2.5 37x1x2.5 0.7 1.5 27.2 1.25 1.8 33.3 2477
    RE-2X(St)HSWAH 40C2.5 40x1x2.5 0.7 1.6 28.5 1.25 1.9 34.8 2614
