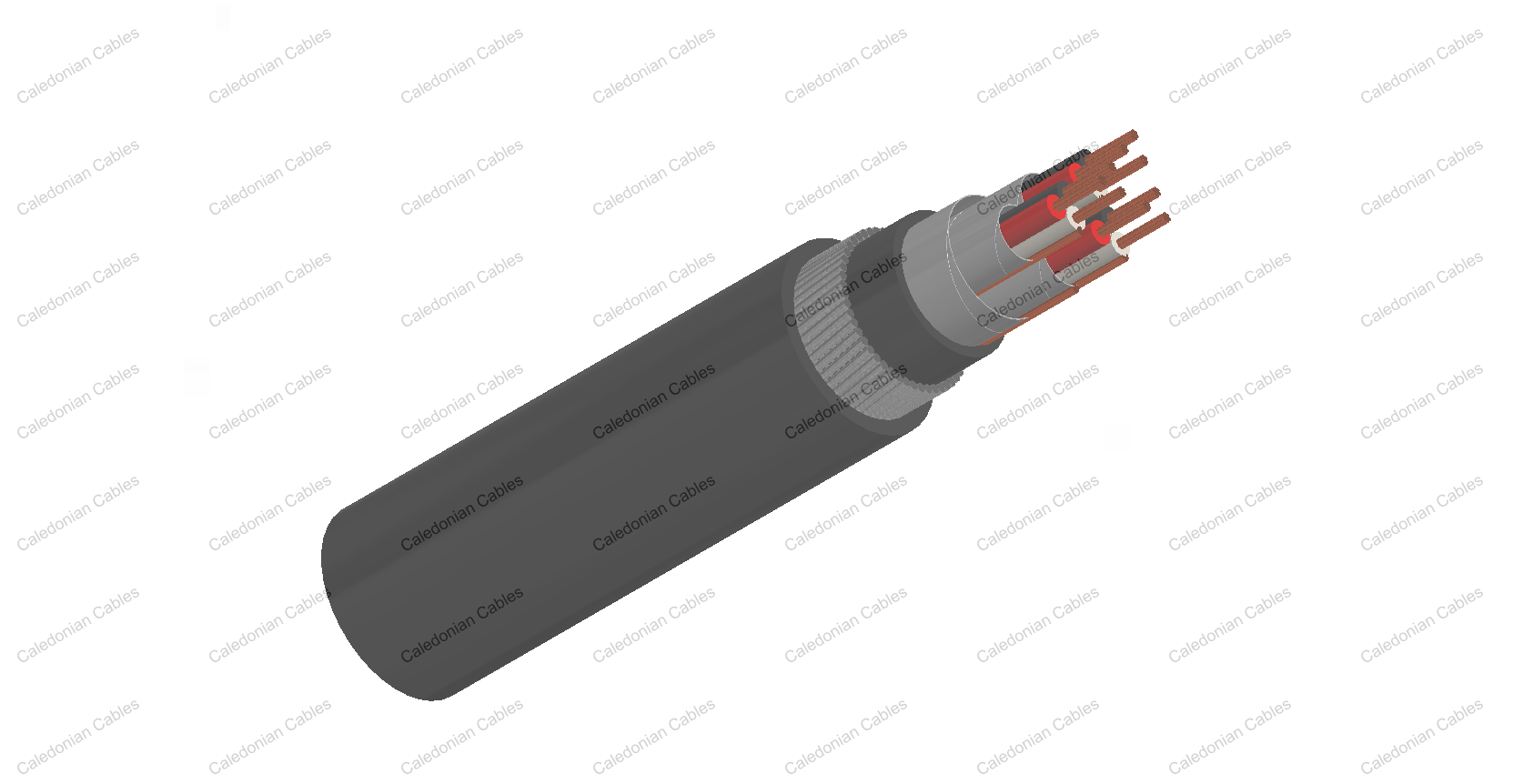

    XLPE Insulated, LSZH Sheathed, Individual and Overall Screened & Armoured Instrumentation Cables (Multi-triple)

    Application

    These cables are used for transmission of analoge and digital signals in instrument and control systems at chemistry and petrochemistry industry plants, power plants, natural gas and petroluem plants, etc. These cables are used in the environments which have no corrosive gases are emitted in the event of fire. In case of fire,these cables inhibit the propagation of the flames whereby the development of smoke is extremely low. Instrumentation cables are not allowed for direct connection to a low impedance sources, e.g. public mains electricity supply. With blue sheath it is suitable for intrinsically safe systems. These cables are not recommended for direct burial. They are for indoorand outdoor installation, in dry and wet l°Cations; on racks, trays, in conduits.

    Standards

    Basic design to EN 50288-7

    Fire Performance

    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
    Reduced Fire Propagation(Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
    Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
    Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
    No Toxic gases NES 02-713; NF C 20-454
    Sunlight Resistance UL 1581 section 1200
    Oil Resistance ICEA S-73-532**

    Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

    Voltage Rating

    300V

    Cable Construction

    Conductor : Annealed copper solid or plain copper stranded to IEC 60228 Class 2.

    Insulation : Extruded cross-linked XLPE compound, EN 50290. 2-29.

    Individual Screen : Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm2

    Pair : Two conductors twisted to form a pair

    Lay-up : Pairs laid up in layers of optimum pitch

    Separator : Polyester tape

    Overall Screen : Aluminium/polyester tape with tinned copper drain wire, 0.5mm²

    Inner sheath : HFFR compound, EN 50290-2-27

    Armour : Galvenized round steel wire, EN 10257-1

    Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option

    Colour Code

    Insulation : Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.

    Outer Sheath : Black or blue for intrinsically safe systems

    Physical and Thermal Properties

    Temperature Range During Operation (Fixed State) : -30°C – +70°C

    Temperature Range During Installation (Mobile State) : -5°C – +50°C

    Minimum Bending Radius : 7.5 × Overall Diameter

    Electrical Roperties

    Conductor Area Size mm² 0.5 0.75 1.0 1.3 1.5
    Insulation thickness (nominal) mm 0.4 0.4 0.4 0.45 0.45
    Conductor resistance (20°C) Ω/km 36.7 25 18.5 14.2 12.3
    Insulation resistance (20°C) MΩ.km(Min.) 5000
    Mutual Capacitance (1 kHz) pF/m(Max.) 115
    Inductance mH/km(Max.) 1
    Capacitance unbalance(1 kHz) pF/500 m (Max.) 500
    L / R (ratio) (max.) μH/Ω 25 25 25 40

    40

    Operating voltage Urms V 300
    Test Voltage Core to Core V 1500
    Core to Screen V 1500

    Construction Parameterst

    Caledonian Cable Code RE-2X(St)HSWAH-TiMF
    No. of Triples × 3 × Cross Section Nominal Insulation Thickness Nominal Inner Sheath Thickness NominalOverall Diameter Over Inner Sheath NominalArmour Wire Diameter Nominal Outer Sheath Thickness NominalOverall Diameter Approx. Weight
      No. × 3 × mm² mm mm mm mm mm mm kg/km
    0.5mm², Multi-striple
    RE-2X(St)HSWAH-TiMF 2T0.5 2x3x0.5 0.35 1.0 9.7 0.9 1.4 14.3 363
    RE-2X(St)HSWAH-TiMF 4T0.5 4x3x0.5 0.35 1.0 11.1 0.9 1.4 15.7 456
    RE-2X(St)HSWAH-TiMF 5T0.5 5x3x0.5 0.35 1.1 12.4 0.9 1.5 17.2 516
    RE-2X(St)HSWAH-TiMF 6T0.5 6x3x0.5 0.35 1.1 14.0 0.9 1.5 18.8 611
    RE-2X(St)HSWAH-TiMF 8T0.5 8x3x0.5 0.35 1.1 14.9 0.9 1.5 19.7 766
    RE-2X(St)HSWAH-TiMF 10T0.5 10x3x0.5 0.35 1.2 17.0 1.25 1.6 22.7 950
    RE-2X(St)HSWAH-TiMF 12T0.5 12x3x0.5 0.35 1.2 17.6 1.25 1.6 23.3 975
    RE-2X(St)HSWAH-TiMF 16T0.5 16x3x0.5 0.35 1.3 20.1 1.25 1.7 26.0 1169
    RE-2X(St)HSWAH-TiMF 20T0.5 20x3x0.5 0.35 1.4 22.3 1.25 1.7 28.2 1365
    RE-2X(St)HSWAH-TiMF 24T0.5 24x3x0.5 0.35 1.5 24.4 1.25 1.8 30.5 1604
    0.75mm², Multi-striple
    RE-2X(St)HSWAH-TiMF 2T0.75 2x3x0.75 0.38 1.0 10.6 0.9 1.4 15.2 408
    RE-2X(St)HSWAH-TiMF 4T0.75 4x3x0.75 0.38 1.1 12.4 0.9 1.5 17.2 521
    RE-2X(St)HSWAH-TiMF 5T0.75 5x3x0.75 0.38 1.1 13.7 0.9 1.5 18.5 590
    RE-2X(St)HSWAH-TiMF 6T0.75 6x3x0.75 0.38 1.1 15.4 0.9 1.5 20.2 819
    RE-2X(St)HSWAH-TiMF 8T0.75 8x3x0.75 0.38 1.2 16.7 0.9 1.6 21.7 941
    RE-2X(St)HSWAH-TiMF 10T0.75 10x3x0.75 0.38 1.3 19.0 1.25 1.6 24.7 1103
    RE-2X(St)HSWAH-TiMF 12T0.75 12x3x0.75 0.38 1.3 19.7 1.25 1.7 25.6 1176
    RE-2X(St)HSWAH-TiMF 16T0.75 16x3x0.75 0.38 1.4 22.5 1.25 1.7 28.4 1439
    RE-2X(St)HSWAH-TiMF 20T0.75 20x3x0.75 0.38 1.5 24.9 1.25 1.8 31.0 1804
    RE-2X(St)HSWAH-TiMF 24T0.75 24x3x0.75 0.38 1.6 27.2 1.25 1.9 33.5 2164
    1.0mm², Multi-striple
    RE-2X(St)HSWAH-TiMF 2T1.0 2x3x1 0.4 1.0 11.5 0.9 1.4 16.1 447
    RE-2X(St)HSWAH-TiMF 4T1.0 4x3x1 0.4 1.1 13.4 0.9 1.5 18.2 579
    RE-2X(St)HSWAH-TiMF 5T1.0 5x3x1 0.4 1.1 14.8 0.9 1.5 19.6 688
    RE-2X(St)HSWAH-TiMF 6T1.0 6x3x1 0.4 1.2 16.9 0.9 1.5 21.7 913
    RE-2X(St)HSWAH-TiMF 8T1.0 8x3x1 0.4 1.2 18.1 1.25 1.6 23.8 1033
    RE-2X(St)HSWAH-TiMF 10T1.0 10x3x1 0.4 1.3 20.7 1.25 1.7 26.6 1277
    RE-2X(St)HSWAH-TiMF 12T1.0 12x3x1 0.4 1.3 21.4 1.25 1.7 27.3 1380
    RE-2X(St)HSWAH-TiMF 16T1.0 16x3x1 0.4 1.4 24.4 1.25 1.7 30.3 1686
    RE-2X(St)HSWAH-TiMF 20T1.0 20x3x1 0.4 1.5 27.1 1.25 1.8 33.2 2200
    RE-2X(St)HSWAH-TiMF 24T1.0 24x3x1 0.4 1.6 29.6 1.6 1.9 36.6 2504
    1.3mm², Multi-striple
    RE-2X(St)HSWAH-TiMF 2T1.3 2x3x1,3 0.45 1.1 12.8 0.9 1.5 17.6 532
    RE-2X(St)HSWAH-TiMF 4T1.3 4x3x1,3 0.45 1.1 14.7 0.9 1.5 19.5 684
    RE-2X(St)HSWAH-TiMF 5T1.3 5x3x1,3 0.45 1.2 16.5 0.9 1.6 21.5 924
    RE-2X(St)HSWAH-TiMF 6T1.3 6x3x1,3 0.45 1.3 18.8 1.25 1.6 24.5 1089
    RE-2X(St)HSWAH-TiMF 8T1.3 8x3x1,3 0.45 1.3 20.1 1.25 1.7 26.0 1249
    RE-2X(St)HSWAH-TiMF 10T1.3 10x3x1,3 0.45 1.4 23.0 1.25 1.8 29.1 1482
    RE-2X(St)HSWAH-TiMF 12T1.3 12x3x1,3 0.45 1.5 24.0 1.25 1.8 30.1 1592
    RE-2X(St)HSWAH-TiMF 16T1.3 16x3x1,3 0.45 1.6 27.4 1.25 1.9 33.7 2222
    RE-2X(St)HSWAH-TiMF 20T1.3 20x3x1,3 0.45 1.7 30.4 1.6 2.0 37.6 2592
    RE-2X(St)HSWAH-TiMF 24T1.3 24x3x1,3 0.45 1.8 33.1 1.6 2.0 40.3 2957
    1.5mm², Multi-striple
    RE-2X(St)HSWAH-TiMF 2T1.5 2x3x1,5 0.45 1.1 13.2 0.9 1.5 18.0 531
    RE-2X(St)HSWAH-TiMF 4T1.5 4x3x1,5 0.45 1.2 15.4 0.9 1.5 20.2 817
    RE-2X(St)HSWAH-TiMF 5T1.5 5x3x1,5 0.45 1.2 17.1 1.25 1.6 22.8 998
    RE-2X(St)HSWAH-TiMF 6T1.5 6x3x1,5 0.45 1.3 19.5 1.25 1.6 25.2 1162
    RE-2X(St)HSWAH-TiMF 8T1.5 8x3x1,5 0.45 1.4 21.1 1.25 1.7 27.0 1304
    RE-2X(St)HSWAH-TiMF 10T1.5 10x3x1,5 0.45 1.5 24.1 1.25 1.8 30.2 1541
    RE-2X(St)HSWAH-TiMF 12T1.5 12x3x1,5 0.45 1.5 24.9 1.25 1.8 31.0 1952
    RE-2X(St)HSWAH-TiMF 16T1.5 16x3x1,5 0.45 1.6 28.4 1.6 1.9 35.4 2384
    RE-2X(St)HSWAH-TiMF 20T1.5 20x3x1,5 0.45 1.7 31.6 1.6 2.0 38.8 2795
    RE-2X(St)HSWAH-TiMF 24T1.5 24x3x1,5 0.45 1.8 34.4 1.6 2.1 41.8 3093
