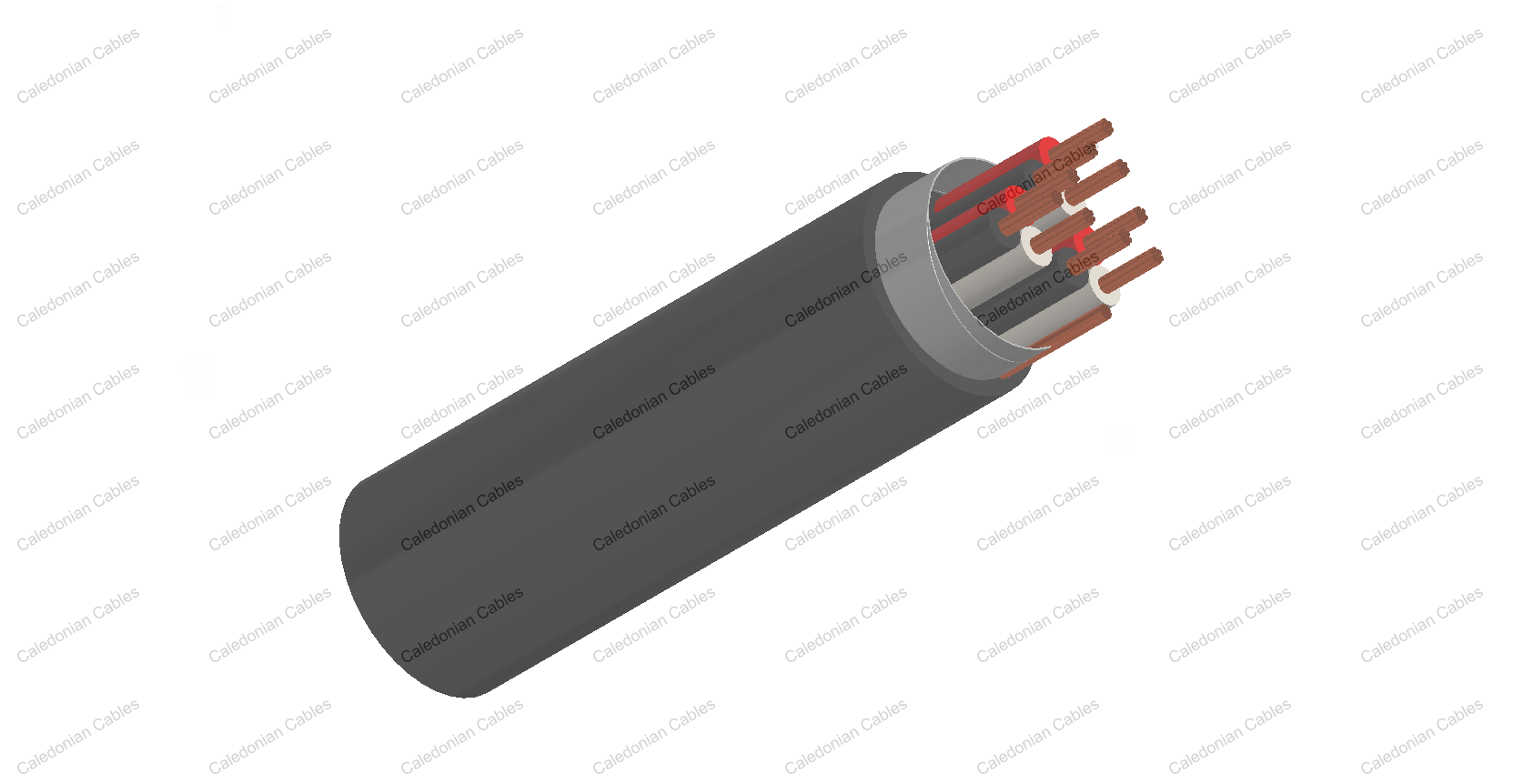

PE Insulated, PVC Sheathed & Overall Screened Instrumentation Cables (Multitriple)

RE-2Y(St)Y 70°C / 300 V

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2*

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING

300V

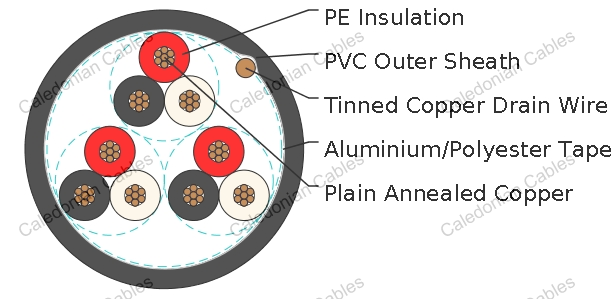

CABLE CONSTRUCTION

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PE compound as per EN 50290. 2-23.
Triple: Three conductors twisted to form a triple
Lay-up: Triples laid up in layers of optimum pitch
Separator: Polyester tape
Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C – +70°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 7.5 X Overall Diameter
Sunlight Resistance: UL 1581 section 1200
Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

CONDUCTOR AREA SIZE		2	0.5	0.75	1.0	1.3	1.5
INSULATION THICKNESS(NOMINAL)		MM	0.35	0.38	0.4	0.45	0.45
CONDUCTOR RESISTANCE(20°C)		Ω/KM	36.0	24.5	18.1	13.9	12.1
INSULATION RESISTANCE(20°C)		MΩ.KM(MIN.)	5000
MUTUAL CAPACITANCE(1KHZ)		PF/M(MAX.)	250
INDUCTANCE		MH/KM(MAX.)	1
L/R(RATIO)(MAX.)		ΜH/Ω	25	25	25	40	40
OPERATINGVOLTAGE		V	300
TESTVOLTAGEURMS	CORETOCORE	V	1500
TESTVOLTAGEURMS	CORETOSCREEN	V	1500

CONSTRUCTION PARAMETERS

CALEDONIAN CABLE CODE	RE-2Y(ST)Y
CALEDONIAN CABLE CODE	NO. OF TRIPLES X3XCROSS SECTION	NOMINAL INSULATION THICKNESS	NOMINAL OUTER SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	APPROX. WEIGHT
	NO.X3XMM2	MM	MM	MM	KG/KM
0.5mm2?, Multitriple
RE-2Y(St)Y 2T0.5	2x3x0,50	0.35	0.9	8.4	92
RE-2Y(St)Y 4T0.5	4x3x0,50	0.35	1.0	9.8	124
RE-2Y(St)Y 5T0.5	5x3x0,50	0.35	1.0	10.8	155
RE-2Y(St)Y 6T0.5	6x3x0,50	0.35	1.0	12.1	186
RE-2Y(St)Y 8T0.5	8x3x0,50	0.35	1.1	13.1	222
RE-2Y(St)Y 10T0.5	10x3x0,50	0.35	1.1	14.7	276
RE-2Y(St)Y 12T0.5	12x3x0,50	0.35	1.1	15.2	325
RE-2Y(St)Y 16T0.5	16x3x0,50	0.35	1.2	17.4	416
RE-2Y(St)Y 20T0.5	20x3x0,50	0.35	1.2	19.1	510
RE-2Y(St)Y 24T0.5	24x3x0,50	0.35	1.3	20.9	597
0.75mm2?, Multitriple
RE-2Y(St)Y 2T0.75	2x3x0,75	0.38	0.9	9.3	114
RE-2Y(St)Y 4T0.75	4x3x0,75	0.38	1.0	10.9	163
RE-2Y(St)Y 5T0.75	5x3x0,75	0.38	1.0	12.0	199
RE-2Y(St)Y 6T0.75	6x3x0,75	0.38	1.1	13.7	246
RE-2Y(St)Y 8T0.75	8x3x0,75	0.38	1.1	14.7	297
RE-2Y(St)Y 10T0.75	10x3x0,75	0.38	1.2	16.7	368
RE-2Y(St)Y 12T0.75	12x3x0,75	0.38	1.2	17.3	425
RE-2Y(St)Y 16T0.75	16x3x0,75	0.38	1.3	19.7	558
RE-2Y(St)Y 20T0.75	20x3x0,75	0.38	1.3	21.7	685
RE-2Y(St)Y 24T0.75	24x3x0,75	0.38	1.4	23.7	806
1.0mm2?, Multitriple
RE-2Y(St)Y 2T1.0	2x3x1	0.4	1.0	10.4	135
RE-2Y(St)Y 4T1.0	4x3x1	0.4	1.0	11.9	203
RE-2Y(St)Y 5T1.0	5x3x1	0.4	1.0	13.2	252
RE-2Y(St)Y 6T1.0	6x3x1	0.4	1.1	15.0	304
RE-2Y(St)Y 8T1.0	8x3x1	0.4	1.1	16.1	381
RE-2Y(St)Y 10T1.0	10x3x1	0.4	1.2	18.4	463
RE-2Y(St)Y 12T1.0	12x3x1	0.4	1.2	19.0	546
RE-2Y(St)Y 16T1.0	16x3x1	0.4	1.3	21.7	720
RE-2Y(St)Y 20T1.0	20x3x1	0.4	1.4	24.1	884
RE-2Y(St)Y 24T1.0	24x3x1	0.4	1.4	26.1	1053
1.3mm2?, Multitriple
RE-2Y(St)Y 2T1.3	2x3x1,3	0.45	1.0	11.5	175
RE-2Y(St)Y 4T1.3	4x3x1,3	0.45	1.1	13.4	252
RE-2Y(St)Y 5T1.3	5x3x1,3	0.45	1.1	14.8	319
RE-2Y(St)Y 6T1.3	6x3x1,3	0.45	1.2	16.9	388
RE-2Y(St)Y 8T1.3	8x3x1,3	0.45	1.2	18.1	476
RE-2Y(St)Y 10T1.3	10x3x1,3	0.45	1.3	20.7	591
RE-2Y(St)Y 12T1.3	12x3x1,3	0.45	1.3	21.4	697
RE-2Y(St)Y 16T1.3	16x3x1,3	0.45	1.4	24.4	921
RE-2Y(St)Y 20T1.3	20x3x1,3	0.45	1.5	27.1	1128
RE-2Y(St)Y 24T1.3	24x3x1,3	0.45	1.6	29.6	1341
1.5mm2?, Multitriple
RE-2Y(St)Y 2T1.5	2x3x1,5	0.45	1.0	11.9	192
RE-2Y(St)Y 4T1.5	4x3x1,5	0.45	1.1	14.0	288
RE-2Y(St)Y 5T1.5	5x3x1,5	0.45	1.1	15.4	356
RE-2Y(St)Y 6T1.5	6x3x1,5	0.45	1.2	17.6	433
RE-2Y(St)Y 8T1.5	8x3x1,5	0.45	1.3	19.1	543
RE-2Y(St)Y 10T1.5	10x3x1,5	0.45	1.3	21.6	675
RE-2Y(St)Y 12T1.5	12x3x1,5	0.45	1.4	22.5	782
RE-2Y(St)Y 16T1.5	16x3x1,5	0.45	1.5	25.7	1035
RE-2Y(St)Y 20T1.5	20x3x1,5	0.45	1.6	28.6	1271
RE-2Y(St)Y 24T1.5	24x3x1,5	0.45	1.7	31.1	1514

Note : Other conductor sizes & core configurations are available upon request.
