    PE Insulated, PVC Sheathed, Individual and Overall Screened Instrumentation Cables (Multi-triple)

    APPLICATION

    For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

    STANDARDS

    Basic design to EN 50288-7

    FIRE PERFORMANCE

    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
    Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)*** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
    Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
    Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
    No Toxic gases NES 02-713; NF C 20-454

    Note: Asterisk * denotes superseded standard, *** denotes optional.

    VOLTAGE RATING

    300V

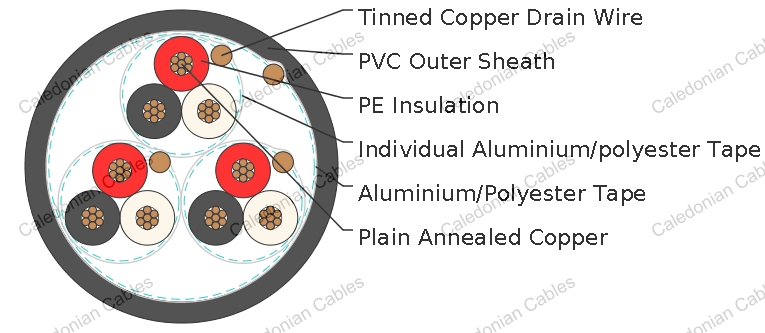

    CABLE CONSTRUCTION

    • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
    • Insulation: PE compound as per EN 50290. 2-23.
    • Individual Screen: Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm2
    • Triple: Three conductors twisted to form a triple
    • **TiMF Construction: Polyester tape above the triple, AL-PES tape over solid tinned copper drain wire, 0,60 mm
    • Lay-up: TiMF laid up in layers of optimum pitch
    • Separator: Polyester tape
    • Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
    • Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

    COLOUR CODE

    • Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
    • Outer Sheath: Black or blue for intrinsically safe systems

    PHYSICAL and THERMAL PROPERTIES

    • Temperature Range During Operation (Fixed State): -30°C – +70°C
    • Temperature Range During Installation (Mobile State): -5°C – +50°C
    • Minimum Bending Radius: 7.5 X Overall Diameter
    • Sunlight Resistance: UL 1581 section 1200
    • Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

    ELECTRICAL ROPERTIES

    CONDUCTOR AREA SIZE MM2 0.5 0.75 1.0 1.3 1.5
    INSULATION THICKNESS (NOMINAL) MM 0.35 0.38 0.4 0.45 0.45
    CONDUCTOR RESISTANCE (20°C) Ω/KM 36.7 25 18.5 14.2 12.3
    INSULATION RESISTANCE (20°C) MΩ.KM(MIN.) 5000
    MUTUAL CAPACITANCE (1 KHZ) PF/M(MAX.) 115
    CAPACITANCE UNBALANCE(1 KHZ) PF/500 M (MAX.) 500
    INDUCTANCE MH/KM(MAX.) 1
    L / R (RATIO) (MAX.) ΜH/Ω 25 25 25 40 40
    OPERATING VOLTAGE URMS V 300

    TEST VOLTAGE

    		 CORE TO CORE V 1500
    CORE TO SCREEN V 1500

    CONSTRUCTION PARAMETERS

    CALEDONIAN CABLE CODE RE-2Y(ST)Y-TIMF
    NO. OF TRIPLES X3XCROSS SECTION NOMINAL INSULATION THICKNESS NOMINALOUTER SHEATH THICKNESS NOMINAL OVERALL DIAMETER

    APPROX. WEIGHT
      NO.X3XMM2 MM MM MM KG/KM
    0.5mm2?, Multitriple
    RE-2Y(St)Y-TiMF 2T0.5 2x3x0.5 0.35 1.0 9.7 104
    RE-2Y(St)Y-TiMF 4T0.5 4x3x0.5 0.35 1.0 11.1 156
    RE-2Y(St)Y-TiMF 5T0.5 5x3x0.5 0.35 1.1 12.4 183
    RE-2Y(St)Y-TiMF 6T0.5 6x3x0.5 0.35 1.1 14.0 236
    RE-2Y(St)Y-TiMF 8T0.5 8x3x0.5 0.35 1.1 14.9 288
    RE-2Y(St)Y-TiMF 10T0.5 10x3x0.5 0.35 1.2 17.0 350
    RE-2Y(St)Y-TiMF 12T0.5 12x3x0.5 0.35 1.2 17.6 386
    RE-2Y(St)Y-TiMF 16T0.5 16x3x0.5 0.35 1.3 20.1 506
    RE-2Y(St)Y-TiMF 20T0.5 20x3x0.5 0.35 1.4 22.3 619
    RE-2Y(St)Y-TiMF 24T0.5 24x3x0.5 0.35 1.5 24.4 752
    0.75mm2?, Multitriple
    RE-2Y(St)Y-TiMF 2T0.75 2x3x0.75 0.38 1.0 10.6 125
    RE-2Y(St)Y-TiMF 4T0.75 4x3x0.75 0.38 1.1 12.4 187
    RE-2Y(St)Y-TiMF 5T0.75 5x3x0.75 0.38 1.1 13.7 238
    RE-2Y(St)Y-TiMF 6T0.75 6x3x0.75 0.38 1.1 15.4 281
    RE-2Y(St)Y-TiMF 8T0.75 8x3x0.75 0.38 1.2 16.7 364
    RE-2Y(St)Y-TiMF 10T0.75 10x3x0.75 0.38 1.3 19.0 448
    RE-2Y(St)Y-TiMF 12T0.75 12x3x0.75 0.38 1.3 19.7 497
    RE-2Y(St)Y-TiMF 16T0.75 16x3x0.75 0.38 1.4 22.5 655
    RE-2Y(St)Y-TiMF 20T0.75 20x3x0.75 0.38 1.5 24.9 802
    RE-2Y(St)Y-TiMF 24T0.75 24x3x0.75 0.38 1.6 27.2 970
    1.0mm2?, Multitriple
    RE-2Y(St)Y-TiMF 2T1.0 2x3x1 0.4 1.0 11.5 154
    RE-2Y(St)Y-TiMF 4T1.0 4x3x1 0.4 1.1 13.4 228
    RE-2Y(St)Y-TiMF 5T1.0 5x3x1 0.4 1.1 14.8 287
    RE-2Y(St)Y-TiMF 6T1.0 6x3x1 0.4 1.2 16.9 350
    RE-2Y(St)Y-TiMF 8T1.0 8x3x1 0.4 1.2 18.1 445
    RE-2Y(St)Y-TiMF 10T1.0 10x3x1 0.4 1.3 20.7 547
    RE-2Y(St)Y-TiMF 12T1.0 12x3x1 0.4 1.3 21.4 624
    RE-2Y(St)Y-TiMF 16T1.0 16x3x1 0.4 1.4 24.4 822
    RE-2Y(St)Y-TiMF 20T1.0 20x3x1 0.4 1.5 27.1 1005
    RE-2Y(St)Y-TiMF 24T1.0 24x3x1 0.4 1.6 29.6 1212
    1.3mm2?, Multitriple
    RE-2Y(St)Y-TiMF 2T1.3 2x3x1,3 0.45 1.1 12.8 186
    RE-2Y(St)Y-TiMF 4T1.3 4x3x1,3 0.45 1.1 14.7 284
    RE-2Y(St)Y-TiMF 5T1.3 5x3x1,3 0.45 1.2 16.5 358
    RE-2Y(St)Y-TiMF 6T1.3 6x3x1,3 0.45 1.3 18.8 427
    RE-2Y(St)Y-TiMF 8T1.3 8x3x1,3 0.45 1.3 20.1 551
    RE-2Y(St)Y-TiMF 10T1.3 10x3x1,3 0.45 1.4 23.0 684
    RE-2Y(St)Y-TiMF 12T1.3 12x3x1,3 0.45 1.5 24.0 769
    RE-2Y(St)Y-TiMF 16T1.3 16x3x1,3 0.45 1.6 27.4 1025
    RE-2Y(St)Y-TiMF 20T1.3 20x3x1,3 0.45 1.7 30.4 1256
    RE-2Y(St)Y-TiMF 24T1.3 24x3x1,3 0.45 1.8 33.1 1516
    1.5mm2?, Multitriple
    RE-2Y(St)Y-TiMF 2T1.5 2x3x1,5 0.45 1.1 13.2 199
    RE-2Y(St)Y-TiMF 4T1.5 4x3x1,5 0.45 1.2 15.4 322
    RE-2Y(St)Y-TiMF 5T1.5 5x3x1,5 0.45 1.2 17.1 397
    RE-2Y(St)Y-TiMF 6T1.5 6x3x1,5 0.45 1.3 19.5 484
    RE-2Y(St)Y-TiMF 8T1.5 8x3x1,5 0.45 1.4 21.1 616
    RE-2Y(St)Y-TiMF 10T1.5 10x3x1,5 0.45 1.5 24.1 768
    RE-2Y(St)Y-TiMF 12T1.5 12x3x1,5 0.45 1.5 24.9 870
    RE-2Y(St)Y-TiMF 16T1.5 16x3x1,5 0.45 1.6 28.4 1144
    RE-2Y(St)Y-TiMF 20T1.5 20x3x1,5 0.45 1.7 31.6 1404
    RE-2Y(St)Y-TiMF 24T1.5 24x3x1,5 0.45 1.8 34.4 1698

    Note : Other conductor sizes & core configurations are available upon request.
