    PE Insulated, LSZH Sheathed, Individual and Overall Screened Instrumentation Cables (Multi-triple)

    Application

    These cables are used for transmission of analoge and digital signals in instrument and control systems at chemistry and petrochemistry industry plants, power plants, natural gas and petroluem plants, etc. These cables are used in the environments which have no corrosive gases are emitted in the event of fire. In case of fire, these cables inhibit the propagation of the flames whereby the development of smoke is extremely low. Instrumentation cables are not allowed for direct connection to a low impedance sources, e.g. public mains electricity supply. With blue sheath it is suitable for intrinsically safe systems. These cables are not recommended for direct burial. They are for indoor and outdoor installation, in dry and wet l°Cations; on racks, trays, in conduits.

    Standards

    Basic design to EN 50288-7

    Fire Performance

    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
    Reduced Fire Propagation(Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
    Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
    Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
    No Toxic gases NES 02-713; NF C 20-454
    Sunlight Resistance UL 1581 section 1200
    Oil Resistance ICEA S-73-532**

    Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

    Voltage Rating

    300V

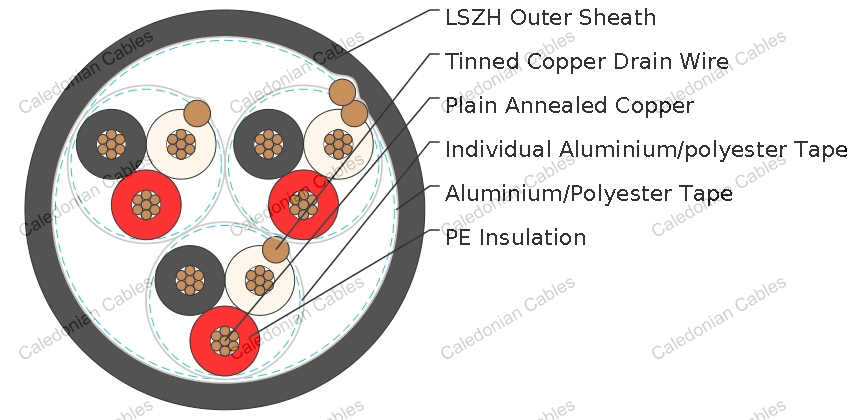

    Cable Construction

    • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
    • Insulation: PE compound, EN 50290. 2-23.
    • Individual Screen: Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm2
    • Triple: Three conductors twisted to form a triple
    • **TiMF Construction: Polyester tape above the triple, AL-PES tape over solid tinned copper drain wire, 0,60 mm
    • Lay-up: TiMF laid up in layers of optimum pitch
    • Separator: Polyester tape Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
    • Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

    Colour Code

    • Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
    • Outer Sheath:  Black or Blue for intrinsically safe systems

    Physical and Thermal Properties

    • Temperature Range During Operation (Fixed State): -30°C – +70°C
    • Temperature Range During Installation (Mobile State): -5°C – +50°C
    • Minimum Bending Radius: 7.5X Overall Diameter

    Electrical Roperties

    Conductor Area Size mm2 0.5 0.75 1.0 1.3 1.5
    Insulation thickness (nominal) mm 0.35 0.38 0.4 0.45 0.45
    Conductor resistance (20°C) Ω/km 36.7 25 18.5 14.2 12.3
    Insulation resistance (20°C) MΩ.km(Min.) 5000
    Mutual Capacitance (1 kHz) pF/m(Max.) 115
    Capacitance unbalance(1 kHz) pF/500 m (Max.) 500
    Inductance mH/km(Max.) 1 1 1 1 1
    L / R (ratio) (max.) μH/Ω 25 25 25 40 40
    Operating voltage Urms V 300
    Test Voltage Core to Core V 1500
    Core to Screen V 1500

    Construction Parameterst

    Caledonian Cable Code RE-2Y(St)H-TiMF
    No. of Triples x3xCross Section Nominal Insulation Thickness Nominal Outer Sheath Thickness Nominal Overall Diameter Approx. Weight
    No.x3xmm2 mm mm mm kg/km
    0.5mm2?, Multitriple
    RE-2Y(St)H-TiMF 2T0.5 2x3x0.5 0.35 1.0 9.7 104
    RE-2Y(St)H-TiMF 4T0.5 4x3x0.5 0.35 1.0 11.1 156
    RE-2Y(St)H-TiMF 5T0.5 5x3x0.5 0.35 1.1 12.4 183
    RE-2Y(St)H-TiMF 6T0.5 6x3x0.5 0.35 1.1 14.0 236
    RE-2Y(St)H-TiMF 8T0.5 8x3x0.5 0.35 1.1 14.9 288
    RE-2Y(St)H-TiMF 10T0.5 10x3x0.5 0.35 1.2 17.0 350
    RE-2Y(St)H-TiMF 12T0.5 12x3x0.5 0.35 1.2 17.6 386
    RE-2Y(St)H-TiMF 16T0.5 16x3x0.5 0.35 1.3 20.1 506
    RE-2Y(St)H-TiMF 20T0.5 20x3x0.5 0.35 1.4 22.3 619
    RE-2Y(St)H-TiMF 24T0.5 24x3x0.5 0.35 1.5 24.4 752
    0.75mm2?, Multitriple
    RE-2Y(St)H-TiMF 2T0.75 2x3x0.75 0.38 1.0 10.6 125
    RE-2Y(St)H-TiMF 4T0.75 4x3x0.75 0.38 1.1 12.4 187
    RE-2Y(St)H-TiMF 5T0.75 5x3x0.75 0.38 1.1 13.7 238
    RE-2Y(St)H-TiMF 6T0.75 6x3x0.75 0.38 1.1 15.4 281
    RE-2Y(St)H-TiMF 8T0.75 8x3x0.75 0.38 1.2 16.7 364
    RE-2Y(St)H-TiMF 10T0.75 10x3x0.75 0.38 1.3 19.0 448
    RE-2Y(St)H-TiMF 12T0.75 12x3x0.75 0.38 1.3 19.7 497
    RE-2Y(St)H-TiMF 16T0.75 16x3x0.75 0.38 1.4 22.5 655
    RE-2Y(St)H-TiMF 20T0.75 20x3x0.75 0.38 1.5 24.9 802
    RE-2Y(St)H-TiMF 24T0.75 24x3x0.75 0.38 1.6 27.2 970
    1.0mm2?, Multitriple
    RE-2Y(St)H-TiMF 2T1.0 2x3x1 0.4 1.0 11.5 154
    RE-2Y(St)H-TiMF 4T1.0 4x3x1 0.4 1.1 13.4 228
    RE-2Y(St)H-TiMF 5T1.0 5x3x1 0.4 1.1 14.8 287
    RE-2Y(St)H-TiMF 6T1.0 6x3x1 0.4 1.2 16.9 350
    RE-2Y(St)H-TiMF 8T1.0 8x3x1 0.4 1.2 18.1 445
    RE-2Y(St)H-TiMF 10T1.0 10x3x1 0.4 1.3 20.7 547
    RE-2Y(St)H-TiMF 12T1.0 12x3x1 0.4 1.3 21.4 624
    RE-2Y(St)H-TiMF 16T1.0 16x3x1 0.4 1.4 24.4 822
    RE-2Y(St)H-TiMF 20T1.0 20x3x1 0.4 1.5 27.1 1005
    RE-2Y(St)H-TiMF 24T1.0 24x3x1 0.4 1.6 29.6 1212
    1.3mm2?, Multitriple
    RE-2Y(St)H-TiMF 2T1.3 2x3x1,3 0.45 1.1 12.8 186
    RE-2Y(St)H-TiMF 4T1.3 4x3x1,3 0.45 1.1 14.7 284
    RE-2Y(St)H-TiMF 5T1.3 5x3x1,3 0.45 1.2 16.5 358
    RE-2Y(St)H-TiMF 6T1.3 6x3x1,3 0.45 1.3 18.8 427
    RE-2Y(St)H-TiMF 8T1.3 8x3x1,3 0.45 1.3 20.1 551
    RE-2Y(St)H-TiMF 10T1.3 10x3x1,3 0.45 1.4 23.0 684
    RE-2Y(St)H-TiMF 12T1.3 12x3x1,3 0.45 1.5 24.0 769
    RE-2Y(St)H-TiMF 16T1.3 16x3x1,3 0.45 1.6 27.4 1025
    RE-2Y(St)H-TiMF 20T1.3 20x3x1,3 0.45 1.7 30.4 1256
    RE-2Y(St)H-TiMF 24T1.3 24x3x1,3 0.45 1.8 33.1 1516
    1.5mm2?, Multitriple
    RE-2Y(St)H-TiMF 2T1.5 2x3x1,5 0.45 1.1 13.2 199
    RE-2Y(St)H-TiMF 4T1.5 4x3x1,5 0.45 1.2 15.4 322
    RE-2Y(St)H-TiMF 5T1.5 5x3x1,5 0.45 1.2 17.1 397
    RE-2Y(St)H-TiMF 6T1.5 6x3x1,5 0.45 1.3 19.5 484
    RE-2Y(St)H-TiMF 8T1.5 8x3x1,5 0.45 1.4 21.1 616
    RE-2Y(St)H-TiMF 10T1.5 10x3x1,5 0.45 1.5 24.1 768
    RE-2Y(St)H-TiMF 12T1.5 12x3x1,5 0.45 1.5 24.9 870
    RE-2Y(St)H-TiMF 16T1.5 16x3x1,5 0.45 1.6 28.4 1144
    RE-2Y(St)H-TiMF 20T1.5 20x3x1,5 0.45 1.7 31.6 1404
    RE-2Y(St)H-TiMF 24T1.5 24x3x1,5 0.45 1.8 34.4 1698
