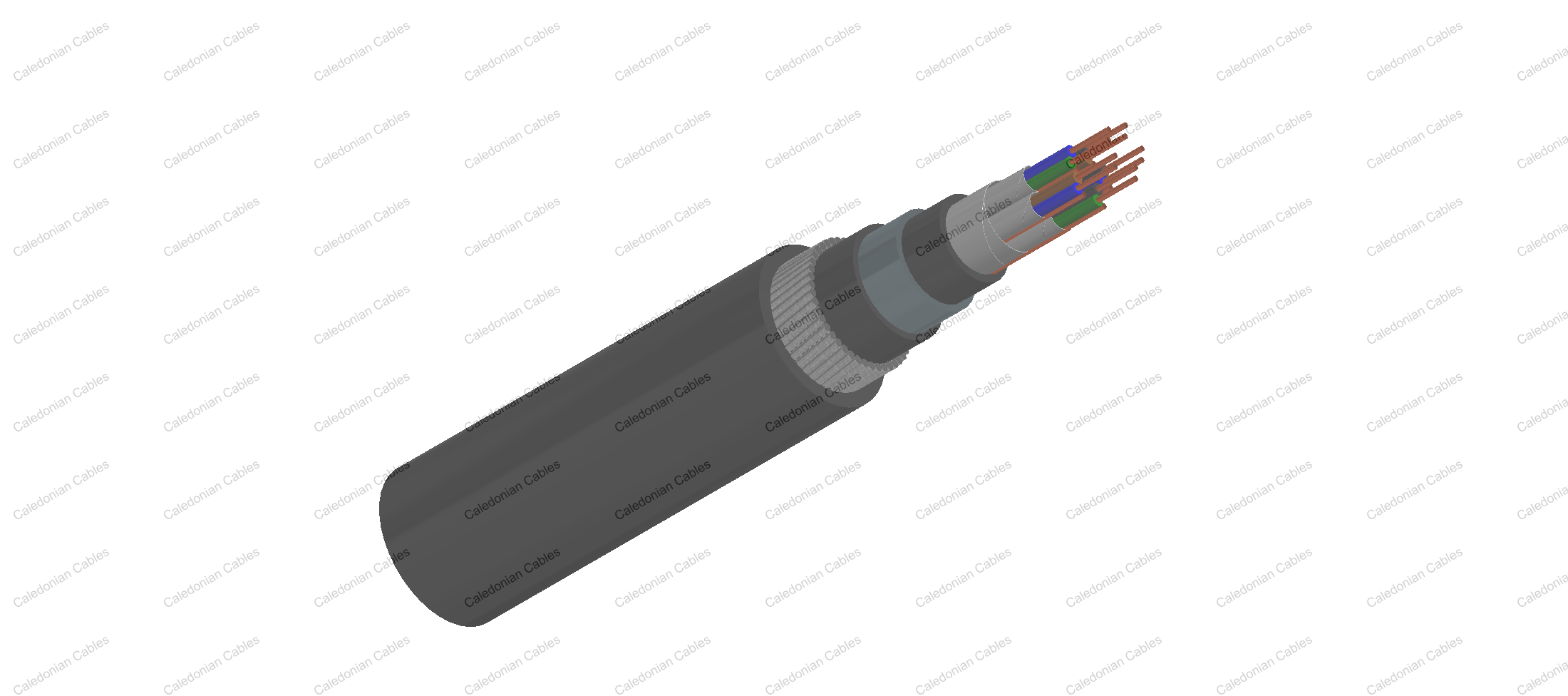

    BS5308 Cable Part 1 Type 3 PE-IS-OS-Lead-SWA-PVC

    RE-2Y(St)Y PIMF MYSWAY

    Applications

    BS 5308 lead sheath individual screen &collective screen armoured versions (Part 1 Type 3) are generally used when the risk of mechanical damage is increased. The galvanised steel wire armour provides excellent protection. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, typically in petroleum industry. They are well adapted to underground use in industrial applications, in moist areas, where chemical and mechanical protections are needed. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

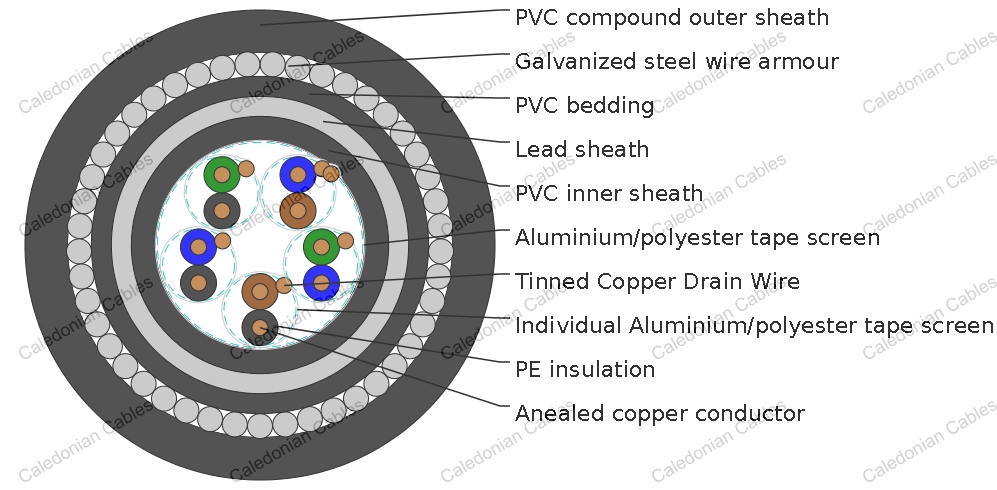

    Construction

    Conductor Annealed or tinned copper, sizes: 0.5mm^2 and 0.75mm^2 mulitistranded(Class 5), 0.5 mm^2, 1.0 mm^2 solid(Class 1), 1.5mm^2 or 2.5mm^2, multistranded(Class 2) to BS6360
    Insulation PE (Polyethylene) type 03 to BS6234
    Pairing Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
    Colour code See technical information
    Individual screen Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm^2
    Binder tape PETP transparent tape
    Collective screen Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm^2
    Inner Sheath PVC (polyvinyl chloride), type TM 1 or type 6 to BS 6746
    Lead Sheath Lead Alloy
    Bedding PVC (polyvinyl chloride), TM 1 to BS 6746
    Amour Galvanized steel wire armour
    Outer sheath PVC Sheath, type TM 1 or type 6 to BS 6746
    Sheath colour Black or blue

    Mechanical and Electrical Properties

    Operating temperature -40C up to + 70C( fixed installation)
      0C to +50C(during operation )
    Minimum bending radius 15 x overall diameter



    Conductor Area Size mm^2 0.5 0.5 0.75 1.0 1.5
    Conductor Stranding No. x mm 1 x 0.8 16 x 0.2 24 x 0.2 1 x 1.13 7 x 0.53
    Conductor resistance max ohm/km 36.8 39.7 26.5 18.2 12.3
    Insulation resistance min Gohm/km 5 5 5 5 5
    Capacitance unbalance at 1 kHz(pair to pair screen) pF/250m 250
    Max. Mutual Capacitance @ 1 kHz forNon OS or OS cables (except one-pair and two-pairs) pF/m 115 115 115 115 120
    Max. Mutual Capacitance @ 1 kHz IS/OS cables (include 1 pair and 2 pair) pF/m 75 75 75 75 85
    Max. L/R Ratio for adjacent cores(Inductance/ Resistance) μH/ohm 25 25 25 25 40
    Test voltage Core to core V 1000 1000 1000 1000 1000
      Core to screen V 1000 1000 1000 1000 1000
    Rated voltage max V 300/500 300/500 300/500 300/500 300/500

    Parameter

    No.of Pairs No.and Dia. of Wires Nominal Conductor Cross-Sectional Area Nominal Thickness of Insulation Nominal Dia. over Bedding Nominal Thickness of Armour Nominal Dia. of Cable Approx. Weight
    no./mm mm^2 mm mm mm mm kg/km
    2 1/0.8 0.5 0.5 10.3 0.9 14.9 380
    5 1/0.8 0.5 0.5 13.5 1.25 19 640
    10 1/0.8 0.5 0.5 18.3 1.25 24.2 890
    15 1/0.8 0.5 0.5 21.2 1.6 27.7 1350
    20 1/0.8 0.5 0.5 23.5 1.6 30.3 1470
    30 1/0.8 0.5 0.5 27.9 1.6 34.9 1870
    50 1/0.8 0.5 0.5 36.1 2 44.5 3000
    2 16/0.2 0.5 0.6 12 0.9 16.8 460
    5 16/0.2 0.5 0.6 15.2 1.25 20.9 760
    10 16/0.2 0.5 0.6 21.1 1.6 27.9 1300
    15 16/0.2 0.5 0.6 24.5 1.6 31.3 1440
    20 16/0.2 0.5 0.6 27.3 1.6 34.3 1870
    30 16/0.2 0.5 0.6 32.3 2 40.5 2400
    50 16/0.2 0.5 0.6 41.7 2.5 51.5 3930
    2 1/1.13 1 0.6 12.8 0.9 17.6 515
    5 1/1.13 1 0.6 16.2 1.25 21.9 950
    10 1/1.13 1 0.6 22.6 1.6 29.4 1330
    15 1/1.13 1 0.6 26.2 1.6 33.2 1680
    20 1/1.13 1 0.6 29.8 2 37.8 2540
    30 1/1.13 1 0.6 35.4 2 43.8 2900
    50 1/1.13 1 0.6 44.9 2.5 54.9 4800
    2 7/0.53 1.5 0.6 14.7 1.25 20.4 730
    5 7/0.53 1.5 0.6 18.8 1.6 25.4 1180
    10 7/0.53 1.5 0.6 26.5 1.6 33.5 1820
    15 7/0.53 1.5 0.6 30.8 1.6 38.8 2350
    20 7/0.53 1.5 0.6 34.4 2 42.6 3030
    30 7/0.53 1.5 0.6 41 2.5 50.8 4050
    50 7/0.53 1.5 0.6 52.2 2.5 62.6 5960
