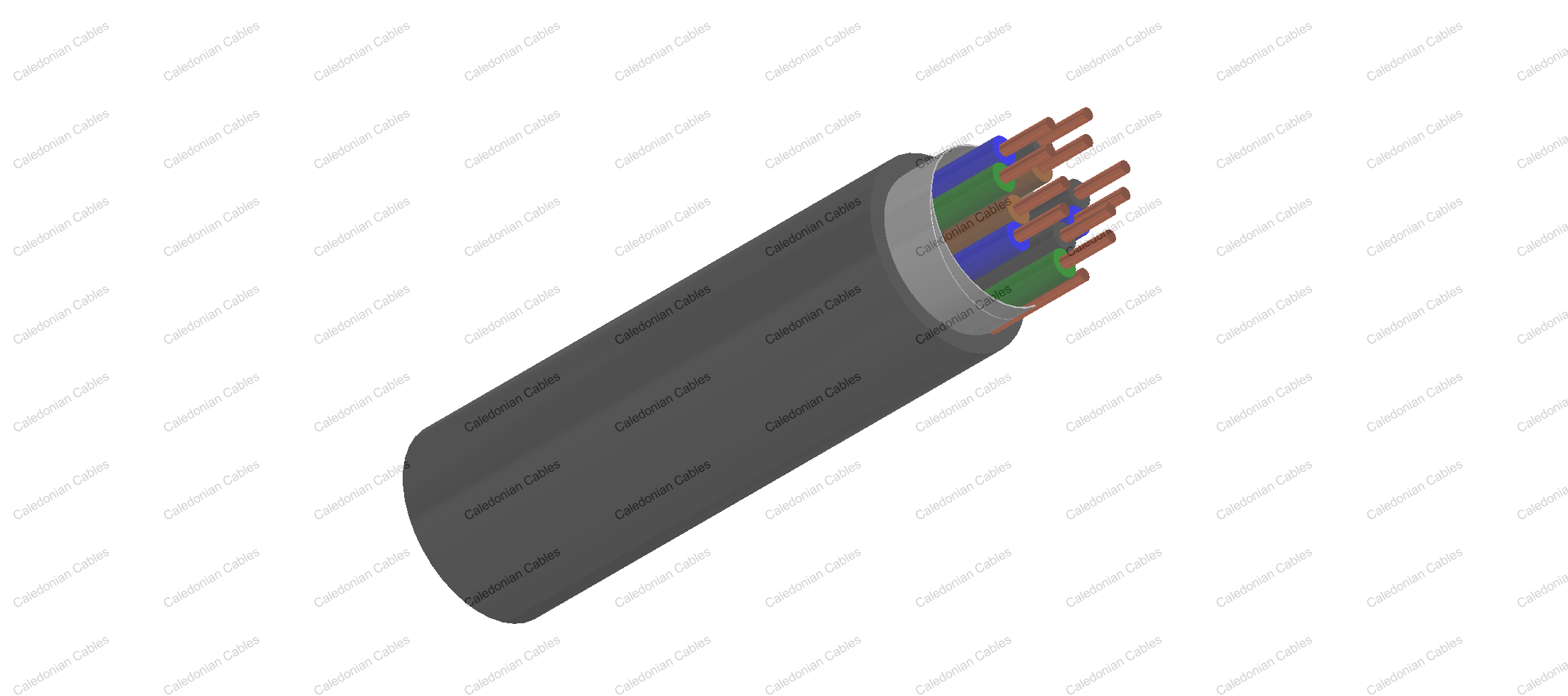

    BS5308 Cable Part 1 Type 1 PE-OS-PVC

    RE-2Y(St)Y

    Applications

    BS 5308 Cable Part 1 Type1 PE-OS-PVC unarmoured versions (Part 1 Type 1) are generally use for indoor installation and suitable for wet and damp areas. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, typically in petroleum industry.

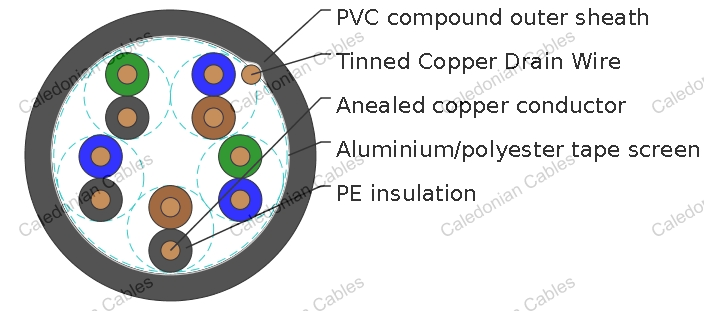

    Construction

    Conductor Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 0.5 mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm², multistranded(Class 2) to BS6360
    Insulation PE (Polyethylene) type 03 to BS6234
    Pairing Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
    Colour code See technical information
    Binder tape PETP transparent tape
    Collective screen Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm²
    Outer sheath PVC Sheath, type TM 1 or type 6 to BS 6746
    Sheath colour Black or blue

    Mechanical and Electrical Properties

    Operating temperature -40˚C up to + 70˚C( fixed installation)
      0˚C to +50˚C(during operation )
    Minimum bending radius 5 x overall diameter
    Conductor Area Size mm² 0.5 0.5 0.75 1.0 1.5
    Conductor Stranding No. x mm 1 x 0.8 16 x 0.2 24 x 0.2 1 x 1.13 7 x 0.53
    Conductor resistance max ohm/km 36.8 39.7 26.5 18.2 12.3
    Insulation resistance min Gohm/km 5 5 5 5 5
    Capacitance unbalanceat 1 kHz(pair to pair screen) pF/250m 250
    Max. Mutual Capacitance @ 1 kHz forNon OS or OS cables (except one-pair and two-pairs) pF/m 115 115 115 115 120
    Max. Mutual Capacitance @ 1 kHz IS/OS cables(include 1 pair and 2 pair) pF/m 75 75 75 75 85
    Max. L/R Ratio for adjacentcores(Inductance/Resistance) μH/ohm 25 25 25 25 40
    Test voltage Core to core V 1000 1000 1000 1000 1000
      Core to screen V 1000 1000 1000 1000 1000
    Rated voltage max V 300/500 300/500 300/500 300/500 300/500

    Parameter

    No.of Pairs No.and Dia. of Wires Nominal Conductor Cross-Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Dia. of Cable Approx. Weight
    no./mm mm² mm mm mm kg/km
    1 1/0.8 0.5 0.5 0.8 5.5 35
    2 1/0.8 0.5 0.5 0.8 6.8 55
    5 1/0.8 0.5 0.5 1.1 10.9 125
    10 1/0.8 0.5 0.5 1.2 14.4 215
    15 1/0.8 0.5 0.5 1.2 16.5 300
    20 1/0.8 0.5 0.5 1.3 18.8 385
    30 1/0.8 0.5 0.5 1.3 22.3 545
    50 1/0.8 0.5 0.5 1.5 28.5 875
    1 16/0.2 0.5 0.6 0.8 6.2 60
    2 16/0.2 0.5 0.6 0.8 7.6 80
    5 16/0.2 0.5 0.6 1.1 12.4 210
    10 16/0.2 0.5 0.6 1.2 16.5 340
    15 16/0.2 0.5 0.6 1.3 19.2 440
    20 16/0.2 0.5 0.6 1.3 21.7 570
    30 16/0.2 0.5 0.6 1.5 26.4 780
    50 16/0.2 0.5 0.6 1.7 33.4 1130
    1 24/0.2 0.75 0.6 0.8 6.7 75
    2 24/0.2 0.75 0.6 0.9 8.4 100
    5 24/0.2 0.75 0.6 1.2 13.8 250
    10 24/0.2 0.75 0.6 1.3 18.4 450
    15 24/0.2 0.75 0.6 1.5 21.1 600
    20 24/0.2 0.75 0.6 1.5 24.4 920
    30 24/0.2 0.75 0.6 1.7 29.5 980
    50 24/0.2 0.75 0.6 2 37.6 1690
    1 1/1.13 1 0.6 0.8 6.6 85
    2 1/1.13 1 0.6 0.8 8 115
    5 1/1.13 1 0.6 1.2 13.5 290
    10 1/1.13 1 0.6 1.2 17.7 500
    15 1/1.13 1 0.6 1.3 20.6 670
    20 1/1.13 1 0.6 1.5 23.8 950
    30 1/1.13 1 0.6 1.5 28.4 1030
    50 1/1.13 1 0.6 2 36.6 1750
    1 7/0.53 1.5 0.6 0.8 7.5 100
    2 7/0.53 1.5 0.6 0.9 9.3 150
    5 7/0.53 1.5 0.6 1.2 15.6 360
    10 7/0.53 1.5 0.6 1.3 20.9 690
    15 7/0.53 1.5 0.6 1.5 24.6 880
    20 7/0.53 1.5 0.6 1.5 27.8 1230
    30 7/0.53 1.5 0.6 1.7 33.7 1560
    50 7/0.53 1.5 0.6 2 43 2400
