    Z1Z1-K(AS)

    Application and Description

    These cables are high security cables. In case of fire, they emit limited toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended used in domestic premises, kitchens, offices; or for household appliances, even those in damp places; for medium mechanical stress (e.g. washing machines, refrigerators).

    Standard and Approval

    UNE 21031

    EN 60332

    EN 60332-1

    EN 50268

    EN 50267-2

    EN 61034

    IEC 60332-1

    IEC 60332-3

    IEC 61034

    IEC 60331

    Cable Construction

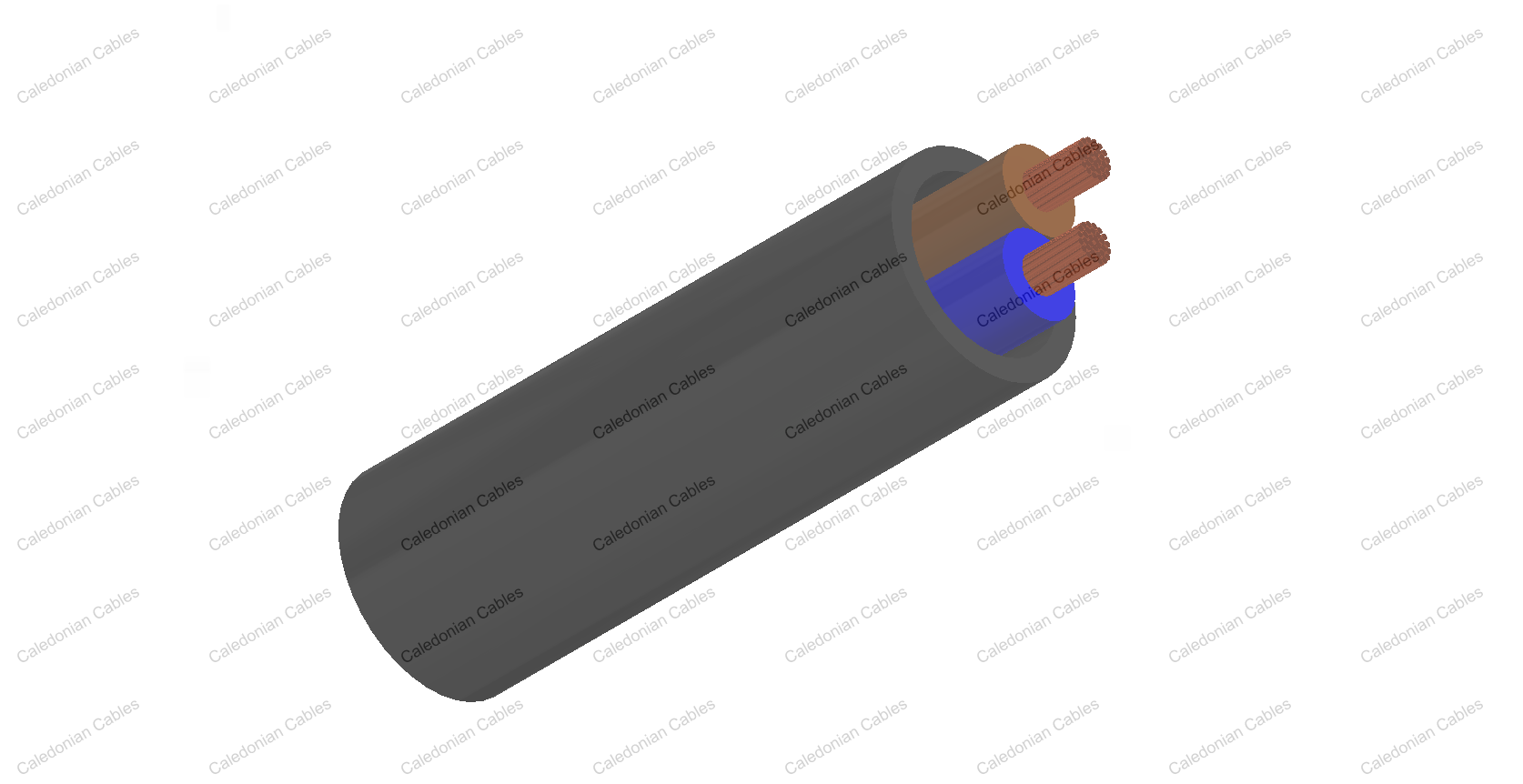

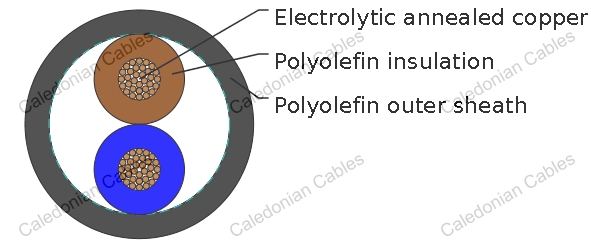

    Flexible electrolytic annealed copper conductor

    Class 5 in accordance with IEC 60228

    Polyolefin insulation type TI6 according to UNE 21031-14

    Color coded to HD 308

    FRLSHF polyolefin outer sheath type TI6 according to UNE 21031-14

    Technical Characteristics

    Working voltage 300/500 volts; 600/1000volts
    Test voltage 2000 volts(300/500 volts); 3500 volts(600/1000 volts)
    Minimum bending radius 5x Ø
    Working temperature -15°C to +90°C
    Fixed temperature -40°C to +90°C
    Flame retardant EN50265-1/EN 60332-1
    Fire retardant EN50266-2/IEC 60332-3
    Halogen-free EN50267/EN 50267-2-1
    Low smoke opacity EN 50268/IEC 61034
    Low corrosiveness gases EN 50267-2-2

    Cable Parameter

    AWG No. of Cores × Nominal Cross Sectional Area Nominal Overall Diameter Nominal Weight
    # × mm² mm kg/km
    300/500V
    20(16/32) 2x0.5 5.8 42
    20(16/32) 3G0.5 6.2 51
    20(16/32) 4G0.5 7.2 69
    20(16/32) 5G0.5 8.2 89
    20(16/32) 6G0.5 9 111
    20(16/32) 7G0.5 9 115
    20(16/32) 8G0.5 9.9 132
    20(16/32) 10G0.5 11.9 185
    20(16/32) 12G0.5 12.3 203
    20(16/32) 14G0.5 12.6 219
    20(16/32) 16G0.5 13.3 246
    20(16/32) 20G0.5 14.5 296
    20(16/32) 24G0.5 16.5 376
    20(16/32) 30G0.5 17.2 425
    20(16/32) 37G0.5 18.8 512
    20(16/32) 40G0.5 19.2 530
    20(16/32) 50G0.5 21.3 680
    20(16/32) 60G0.5 23.2 780
    18(24/32) 2x0.75 6.6 56
    18(24/32) 3G0.75 6.8 65
    18(24/32) 4G0.75 7.6 83
    18(24/32) 5G0.75 8.6 105
    18(24/32) 6G0.75 9.7 132
    18(24/32) 7G0.75 9.7 138
    18(24/32) 8G0.75 10.4 158
    18(24/32) 10G0.75 12.2 212
    18(24/32) 12G0.75 12.6 234
    18(24/32) 14G0.75 13.4 268
    18(24/32) 16G0.75 14.2 302
    18(24/32) 20G0.75 15.5 366
    18(24/32) 24G0.75 17.7 465
    18(24/32) 30G0.75 18.9 546
    18(24/32) 37G0.75 20.7 661
    18(24/32) 40G0.75 21.5 681
    18(24/32) 50G0.75 23.3 855
    18(24/32) 60G0.75 24.8 1025
    17(32/32) 2x1 7 66
    17(32/32) 3G1 7.2 76
    17(32/32) 4G1 8.1 98
    17(32/32) 5G1 8.9 120
    17(32/32) 6G1 10.3 156
    17(32/32) 7G1 10.3 164
    17(32/32) 8G1 11.2 192
    17(32/32) 10G1 13.2 257
    17(32/32) 12G1 13.6 284
    17(32/32) 14G1 14 311
    17(32/32) 16G1 14.8 351
    17(32/32) 20G1 16.5 437
    17(32/32) 24G1 19 560
    17(32/32) 30G1 19.8 639
    17(32/32) 37G1 21.6 772
    17(32/32) 40G1 22.8 835
    17(32/32) 50G1 25.9 1100
    17(32/32) 60G1 27.8 1276
    600/1000V
    16(30/30) 2 x 1.5 8.1 93
    16(30/30) 3 G 1.5 8.6 110
    16(30/30) 4 G 1.5 9.4 132
    16(30/30) 5 G 1.5 9.9 150
    16(30/30) 6 G 1.5 11.5 188
    16(30/30) 7 G 1.5 11.5 197
    16(30/30) 8 G 1.5 12.1 220
    16(30/30) 10 G 1.5 14.2 286
    16(30/30) 12 G 1.5 14.7 317
    16(30/30) 14 G 1.5 15.4 353
    16(30/30) 16 G 1.5 16.4 398
    16(30/30) 20 G 1.5 18.1 484
    16(30/30) 24 G 1.5 20.8 608
    16(30/30) 25 G 1.5 20.8 630
    16(30/30) 27 G 1.5 21.2 649
    16(30/30) 30 G 1.5 21.7 694
    16(30/30) 37 G 1.5 23.9 839
    16(30/30) 44 G 1.5 25.9 985
    16(30/30) 52 G 1.5 28.1 1205
    16(30/30) 60 G 1.5 30.2 1335
    14(50/30) 2 x 2.5 9 119
    14(50/30) 3 G 2.5 9.6 144
    14(50/30) 4 G 2.5 10.5 175
    14(50/30) 5 G 2.5 11.1 201
    14(50/30) 6 G 2.5 12.7 250
    14(50/30) 7 G 2.5 12.9 265
    14(50/30) 8 G 2.5 13.6 300
    14(50/30) 10 G 2.5 16.3 399
    14(50/30) 12 G 2.5 16.7 440
    14(50/30) 14 G 2.5 18.1 490
    14(50/30) 16 G 2.5 18.5 553
    14(50/30) 20 G 2.5 20.5 677
    14(50/30) 24 G 2.5 23.6 850
    14(50/30) 25 G 2.5 23.6 888
    14(50/30) 27 G 2.5 24.2 918
    14(50/30) 30 G 2.5 24.7 983
    14(50/30) 37 G 2.5 25.9 1193
    12(56/28) 7 G 4 15.5 395
    10(84/28) 7 G 6 18.1 527
    8(80/26) 7 G 10 23.6 728
    6(128/26) 7 G 16 27.2 1043
