    Z1C4Z1-K(AS) 0.6/1kV

    Application and Description

    The screened and halogen free cable is a high security cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended for public places and for all installations where it is necessary avoid electric interference of nearby circuits.

    Standard and Approval

    UNE 21123-4

    IEC 60502

    EN 60332-1

    EN 50266

    EN 50267-1

    EN 50267-2

    EN 61034

    IEC 60332-1

    IEC 60332-3

    IEC 60754-1

    IEC 60754-2

    IEC 61034

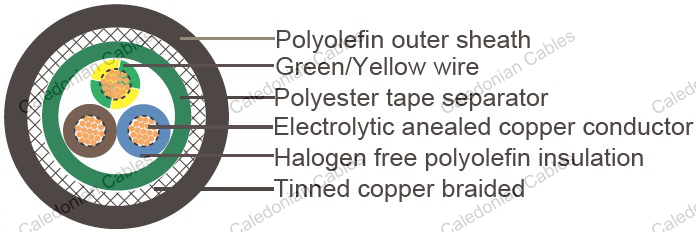

    Cable Construction

    Flexible electrolytic annealed copper conductor

    Class 5 in accordance with IEC 60228.

    Halogen free polyolefin insulation

    Color coded to HD 308, 6 or more conductors : black numbered + green/yellow

    Polyester tape separator

    High coverage tinned copper braided screen

    Polyolefin outer sheath according to UNE 21123

    Technical Characteristics

    Working voltage 600/1000 volts
    Test voltage 2000 volts
    Minimum bending radius 5 x Ø
    Working temperature -15°C to +70°C
    Short circuit temperature +160°C
    Flame retardant IEC 60332.1
    Insulation resistance 20 MΩ x km
    Halogen free IEC 60754-1, EN 50267-2-1
    No corrosive gases IEC 60754-2, EN 50267-2-2
    No toxic gases NES 02-713, NF X 70-100
    Low smoke density IEC 61034, EN 50268-2
    Flame retardant IEC 60332-1, EN 50265-2-1
    Non-flame propagating IEC 60332-3, EN 50266-2

    Cable Parameter

    AWG No. of Cores × Nominal Cross Sectional Area Nominal Overall Diameter Nominal Weight
    # × mm² mm kg/km
    16(30/30) 7G1.5 12.0 205
    16(30/30) 12G1.5 15.4 316
    16(30/30) 14G1.5 16.3 358
    16(30/30) 16G1.5 17.2 402
    16(30/30) 19G1.5 18.1 462
    16(30/30) 24G1.5 21.1 578
    16(30/30) 27G1.5 21.6 647
    14(50/30) 7G2.5 14.0 295
    14(50/30) 12G2.5 18.4 463
    14(50/30) 14G2.5 19.3 531
    14(50/30) 16G2.5 20.4 595
    14(50/30) 19G2.5 21.6 702
    14(50/30) 24G2.5 25.4 873
    14(50/30) 27G2.5 26.0 977
