These cables are suitable for fixed installations with complex layouts where flexible cables are required. They are also used for connecting motors or frequency converters. The characteristics of the outer sheath material make this cable extremely versatile as it provides a high level of protection in all types of environments, outdoors, underground, in damp conditions or even submerged in water.
UNE 21123
HD 308 S2
IEC 60502
IEC 60228
IEEE 383
UNE-EN 50265-2-1
NF C 32-321
CE approved
ROHS compliant

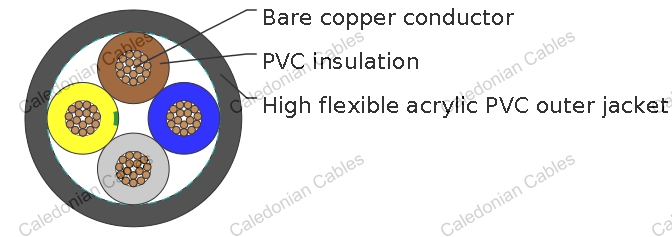

Fine bare copper strands
Strands to IEC 60228 class 5
PVC/A core insulation to IEC 60502
Color codes to HD-308
High flexible special acrylic PVC compound ST1 outer jacket
| Working voltage | 600/1000 volts |
| Test voltage | 2000 volts |
| Minimum bending radius | 5 x Ø |
| Operation temperature rage | -15°C to +70°C |
| Short-circuit temperature | +160°C |
| Flame retardant | EN 50265-2-1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores × Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| # × mm² | mm | kg/km | |
| 8(320/32) | 1 x 10 | 8.8 | 151 |
| 6(512/32) | 1 x 16 | 9.8 | 208 |
| 4(800/32) | 1 x 25 | 11.5 | 305 |
| 2(1120/32) | 1 x 35 | 12.7 | 401 |
| 1(1600/32) | 1 x 50 | 14.6 | 557 |
| 2/0(2240/32) | 1 x 70 | 16.3 | 749 |
| 3/0(3024/32) | 1 x 95 | 18.6 | 970 |
| 4/0(614/24) | 1 x 120 | 20.5 | 1221 |
| 300MCM(765/24) | 1 x 150 | 22.7 | 1527 |
| 350MCM(944/24) | 1 x 185 | 25.1 | 1847 |
| 500MCM(1225/24) | 1 x 240 | 28.3 | 2416 |
| 16(30/30) | 6 x 1.5 | 12.1 | 211 |
| 14(50/30) | 6 x 2.5 | 14.1 | 300 |
| 16(30/30) | 7 x 1.5 | 12.1 | 226 |
| 14(50/30) | 7 x 2.5 | 14.1 | 324 |
| 12(56/28) | 7 x 4.0 | 15.7 | 441 |
| 10(84/28) | 7 x 6.0 | 17.4 | 588 |
| 16(30/30) | 8 x 1.5 | 13.1 | 255 |
| 14(50/30) | 8 x 2.5 | 15.1 | 364 |
| 16(30/30) | 10 x 1.5 | 14.1 | 301 |
| 14(50/30) | 10 x 2.5 | 16.5 | 437 |
| 16(30/30) | 12 x 1.5 | 15.0 | 347 |
| 14(50/30) | 12 x 2.5 | 18.0 | 511 |
| 16(30/30) | 14 x 1.5 | 15.9 | 392 |
| 14(50/30) | 14 x 2.5 | 19.1 | 580 |
| 16(30/30) | 16 x 1.5 | 16.9 | 443 |
| 14(50/30) | 16 x 2.5 | 20.1 | 656 |
| 16(30/30) | 19 x 1.5 | 17.6 | 502 |
| 14(50/30) | 19 x 2.5 | 21.1 | 747 |
| 16(30/30) | 24 x 1.5 | 19.6 | 609 |
| 14(50/30) | 24 x 2.5 | 23.4 | 907 |
| 16(30/30) | 27 x 1.5 | 20.8 | 668 |
| 16(30/30) | 30 x 1.5 | 21.5 | 721 |
| 16(30/30) | 37 x 1.5 | 23.1 | 867 |
| 16(30/30) | 44 x 1.5 | 25.4 | 1027 |
| 16(30/30) | 52 x 1.5 | 27.3 | 1195 |
| 16(30/30) | 61 x 1.5 | 29.1 | 1392 |
