    SZ1-K(AS+) 0.6/1kV

    Application and Description

    These cables are specially designed to transmit electric power in the extreme conditions that there are in a large fire, assuring electric supply to emergency circuits, like signaling light, fume extractors, acustic alarms, water pumps, etc. In case of fire, they do not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic in public places such as: hospitals, schools, museums, airport, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.

    Standard and Approval

    UNE 211025

    IEC 60502

    EN 60332-1

    EN 50266

    EN 50267-1

    EN 50267-2

    EN 61034

    IEC 60332-1

    IEC 60332-3

    IEC 60754-1

    IEC 60754-2

    IEC 61034

    IEC 60331

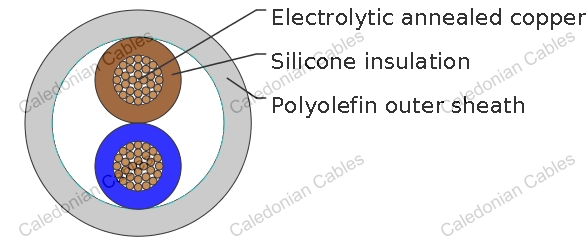

    Cable Construction

    Flexible electrolytic annealed copper conductor

    Class 5 in accordance with IEC 60228.

    Silicone insulation, type EI2, according to UN-EN 50363.

    Color coded to HD 308

    Thermoplastic polyolefin outer sheath according to UNE 21123

    Technical Characteristics

    Working voltage 600/1000 volts
    Test voltage 2000 volts
    Minimum bending radius 5 x Ø
    Working temperature -15°C to +90°C
    Short circuit temperature +250°C
    Insulation resistance 20 MΩ x km
    Halogen free IEC 60754-1, EN 50267-2-1
    No corrosive gases IEC 60754-2, EN 50267-2-2
    Low smoke density IEC 61034, EN 50268-2
    Flame retardant IEC 60332-1, EN 50265-2-1
    Non-flame propagating IEC 60332-3, EN 50266-2

    Cable Parameter

    AWG No. of Cores × Nominal Cross Sectional Area Nominal Overall Diameter Nominal Weight
    # × mm² mm kg/km
    14(50/30) 1×2.5 6.5 70
    12(56/28) 1×4 7.3 90
    10(84/28) 1×6 7.8 115
    8(80/26) 1×10 8.8 165
    6(128/26) 1×16 9.9 225
    4(200/26) 1×25 11.0 310
    2 (280/26) 1×35 12.2 410
    1(400/26) 1×50 13.6 550
    2/0(356/24) 1×70 15.7 760
    3/0(485/24) 1×95 17.5 980
    4/0(614/24) 1×120 19.5 1235
    300 MCM (765/24) 1×150 21.5 1530
    350 MCM (944/24) 1×185 23.4 1835
    500MCM (1225/24) 1×240 26.6 2495
    - 1×300 30.2 2895
    - 1×400 34.8 3935
    16(30/30) 2×1.5 9.8 140
    14(50/30) 2×2.5 11.1 185
    12(56/28) 2×4 12.5 245
    10(84/28) 2×6 13.6 305
    8(80/26) 2×10 15.5 430
    6(128/26) 2×16 17.5 585
    4(200/26) 2×25 20.0 810
    16(30/30) 3G1.5 10.3 140
    14(50/30) 3G2.5 11.7 190
    12(56/28) 3G4 13.2 255
    10(84/28) 3G6 14.4 370
    8(80/26) 3G10 16.5 530
    6(128/26) 3G16 18.6 740
    6(128/26) 3×16 18.6 740
    4(200/26) 3×25 23.4 1040
    16(30/30) 4G1.5 11.1 170
    14(50/30) 4G2.5 12.6 230
    12(56/28) 4G4 14.4 315
    10(84/28) 4G6 15.7 450
    8(80/26) 4G10 18.0 660
    6(128/26) 4G16 20.4 925
    6(128/26) 4×16 20.4 925
    4(200/26) 4×25 23,4 1310
    2(280/26) 4×50 30.0 2375
    8(80/26) 5G1.5 12.1 205
    14(50/30) 5G2.5 13.7 285
    12(56/28) 5G4 15.7 390
    10(84/28) 5G6 17.2 555
    8(80/26) 5G10 19.8 815
    6(128/26) 5G16 22.5 1140
    4(200/26) 5G25 25.9 1620
    2 (280/26) 5×35 27.4 1960
    1(400/26) 5×50 33.5 2885
