The armoured and halogen free cable is a high security cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended for public places, in hazardous areas with explosive gas atmospheres, and installations in general where the cable is subject to risk of mechanical aggression.
UNE 21123-4
IEC 60502
EN 60332-1
EN 50265
EN 50266
EN 50267-1
EN 50267-2
EN 61034
IEC 60332-1
IEC 60332-3
IEC 60754-1
IEC 60754-2
IEC 61034

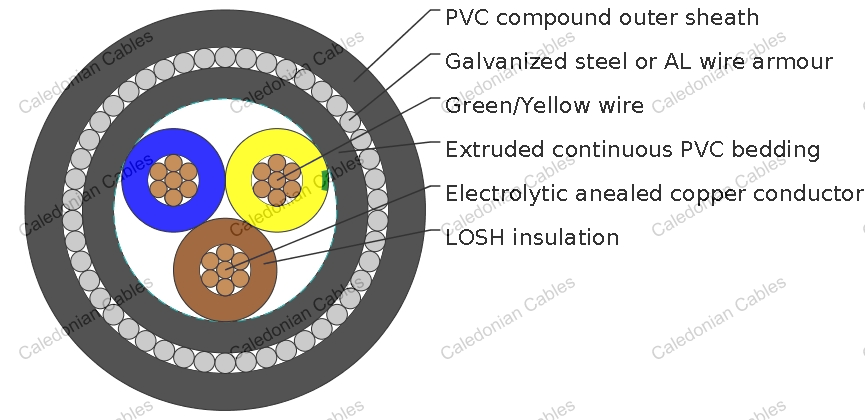

Flexible electrolytic annealed copper conductor
Class 5 in accordance with IEC 60228.
Cross-linked polyethylene insulation, low smoke and halogen free, type DIX 3 according to HD 603
Color coded to HD 308
Polyolefin inner sheath according to UNE 21123-4
Galvanized steel(for multi-core cables) or aluminum wire(for single-core cables) armor
LSOH polyolephine outer sheath according to UNE 21123-4
| Working voltage | 600/1000 volts |
| Test voltage | 2000 volts |
| Minimum bending radius | 10 x Ø |
| Working temperature | -15°C to +90°C |
| Short circuit temperature | +250°C |
| Insulation resistance | 20 MΩ x km |
| Halogen free | IEC 60754-1, EN 50267-2-1 |
| No corrosive gases | IEC 60754-2, EN 50267-2-2 |
| No toxic gases | NES 02-713, NF X 70-100 |
| Low smoke density | IEC 61034, EN 50268-2 |
| Flame retardant | IEC 60332-1, EN 50265-2-1 |
| Non-flame propagating | IEC 60332-3, EN 50266-2 |
| AWG | No. of Cores × Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| # × mm² | mm | kg/km | |
| RZ1MZ1-K(AS) | |||
| 16(30/30) | 2×1.5 | 13.1 | 320 |
| 14(50/30) | 2×2.5 | 14.0 | 367 |
| 12(56/28) | 2×4 | 15.1 | 435 |
| 10(84/28) | 2×6 | 16.1 | 509 |
| 8(80/26) | 2×10 | 18.0 | 664 |
| 6(128/26) | 2×16 | 20.8 | 908 |
| 4(200/26) | 2×25 | 24.3 | 1269 |
| 2 (280/26) | 2×35 | 27.7 | 1669 |
| 16(30/30) | 3G1.5 | 13.8 | 355 |
| 14(50/30) | 3G2.5 | 14.7 | 410 |
| 12(56/28) | 3G4 | 15.8 | 489 |
| 8(80/26) | 1×10 | 14.6 | 341 |
| 6(128/26) | 1×16 | 15.3 | 405 |
| 10(84/28) | 3G6 | 16.9 | 580 |
| 8(80/26) | 3G10 | 19.1 | 777 |
| 6(128/26) | 3×16 | 22.6 | 1289 |
| 4(200/26) | 3×25 | 26.2 | 1739 |
| 2 (280/26) | 3×35 | 29.0 | 2174 |
| 1(400/26) | 3×50 | 32.8 | 2809 |
| 16(30/30) | 4G1.5 | 14.6 | 395 |
| 14(50/30) | 4G2.5 | 15.4 | 458 |
| 12(56/28) | 4G4 | 16.8 | 558 |
| 10(84/28) | 4G6 | 18.2 | 675 |
| 8(80/26) | 4G10 | 20.4 | 908 |
| 6(128/26) | 4×16 | 24.5 | 1527 |
| 4(200/26) | 4×25 | 28.7 | 2083 |
| 2(280/26) | 4×35 | 30.9 | 2582 |
| 16(30/30) | 5G1.5 | 15.9 | 446 |
| 14(50/30) | 5G2.5 | 16.4 | 512 |
| 12(56/28) | 5G4 | 18.0 | 638 |
| 10(84/28) | 5G6 | 19.5 | 775 |
| 8(80/26) | 5G10 | 23.6 | 1361 |
| 6(128/26) | 5G16 | 26.4 | 1773 |
| 4(200/26) | 5G25 | 30.9 | 2437 |
| RZ1MAZ1-K(AS) | |||
| 8(80/26) | 1×10 | 14.5 | 341 |
| 6(128/26) | 1×16 | 15.0 | 380 |
| 4(200/26) | 1×25 | 16.6 | 495 |
| 2(280/26) | 1×35 | 17.7 | 610 |
| 1(400/26) | 1×50 | 19.3 | 775 |
| 2/0 (356/24) | 1×70 | 21.5 | 1010 |
| 3/0 (485/24) | 1×95 | 23.1 | 1245 |
| 4/0 (614/24) | 1×120 | 25.1 | 1525 |
| 300 MCM (765/24) | 1×150 | 27.0 | 1825 |
| 350 MCM (944/24) | 1×185 | 28.9 | 2150 |
| 500MCM (1225/24) | 1×240 | 32.3 | 2780 |
| - | 1×300 | 36.6 | 3490 |
| - | 1×400 | 41.5 | 4645 |
