    RVMV&VVMV / RVMV-K&VVMV-K

    Application and Description

    The Powerhard M cable's design is especially suitable for fixed installation in potentially explosion hazard locations. It is highly recommended for use in petrol stations, petrochemical plants, flammable product warehouses, etc. At the same time, it can be used in installations such as production plants, agricultural facilities, street lighting and installations in general where the cable is subject to risk of mechanical aggression.

    Standard and Approval

    UNE 21123-2

    IEC 60502

    IEC 60332-1

    IEC 60332-3

    EN 60332-1

    EN 50266

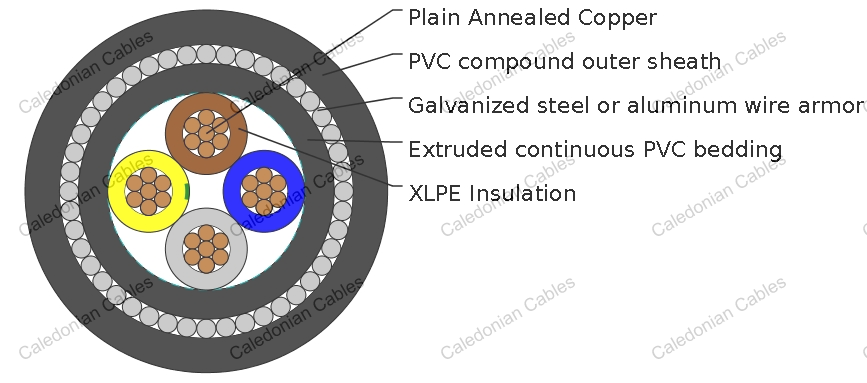

    Cable Construction

    Rigid electrolytic annealed copper conductor - Class 1 (up to4 mm² ) or 2 (from 6mm² upwards) in accordance with IEC 60228.

    Class 5 for (RVMV-K/VVMV-K) in accordance with IEC 60228.

    XLPE insulation (RVMV/RVMV-K) or PVC insulation (VVMV/VVMV-K) according to IEC 60502.

    up to 5 conductors : by colours (RVMV/RVMV-K)

    6 or more conductors: black numbered + green/yellow. (VVMV/VVMV-K)

    Extruded continuous PVC bedding type ST1/ST2 of standard IEC 60502.

    Galvanized steel or aluminum wire armour.

    Flexible special PVC compound outer sheath type ST1/ST2 of standard IEC 60502.

    Technical Characteristics

    Working voltage 600/1000 volts
    Test voltage 2000 volts
    Minimum bending radius 10 x Ø
    Working temperature -15°C to +90°C
    Short circuit temperature +250°C
    Flame retardant IEC 60332.1
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG No. of Cores × Nominal Cross Sectional Area Nominal Overall Diameter Nominal Weight
    # × mm² mm kg/km
    10 1×6 12 217
    8 1×10 13 267
    6 1×16 14 340
    4 1×25 15.6 470
    2 1×35 16.7 582
    1 1×50 18.1 719
    2/0 1×70 19.9 951
    3/0 1×95 23.3 1349
    4/0 1×120 25.6 1,625
    300MCM 1×150 27.5 1,935
    350MCM 1×185 29.7 2361
    500MCM 1×240 32.7 2970
    - 1×300 35.4 3602
    16 2×1.5 13.2 319
    14 2×2.5 13.6 354
    12 2×4 14.8 422
    10 2×6 16.4 528
    8 2×10 18.4 693
    6 2×16 22.2 1006
    16 3×1.5 13.6 347
    14 3×2.5 14.2 394
    12 3×4 15.2 471
    10 3×6 17.1 605
    8 3×10 19.1 802
    6 3×16 21.1 1042
    6 3×16/10 23.9 1501
    4 3×25/16 27.8 2,043
    2 3×35/16 30.5 2507
    1 3×50/25 33.8 3165
    2/0 3×70/35 39.8 4405
    16 4×1.5 14.2 382
    14 4×2.5 15.1 446
    12 4×4 16.2 543
    10 4×6 18.1 697
    8 4×10 20.6 952
    6 4×16 24.6 1575
    4 4×25 28.9 2200
