These cables are especially suitable for fixed installations that may be subject to mechanical aggression. They are highly recommended for use in installations in warehouses, production plants and agricultural facilities where the presence of rodents could imply a threat to cable integrity. At the same time, its use is recommended for street lighting installations. In some cases, these cables are used in those places where there is a potential explosion hazard such as petrol stations or flammable product warehouses.
UNE 21123-2
IEC 60502
EN 60332-1
IEC 60332-1

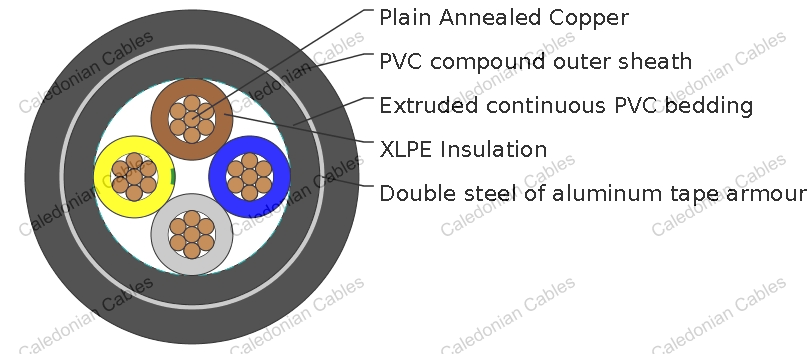

Rigid electrolytic annealed copper conductor
Class 1 (up to 4mm² ) or 2 (from 6mm² upwards) in accordance with IEC 60228
Class 5 for (RVFV-K/VVFV-K) in accordance with IEC 60228
XLPE insulation (RVFV/RVFV-K) or PVC insulation (VVFV/ VVFV-K) according to IEC 60502
up to 5 conductors: by colors (RVFV/RVFV-K)
6 or more conductors : black numbered + green/yellow. (VVFV/VVFV-K)
Extruded continuous PVC bedding type ST1/ST2 of standard IEC 60502.
Double steel or aluminum tape armour
Flexible PVC compound outer sheath type ST1/ST2 of standard IEC 60502
| Working voltage | 600/1000 volts |
| Test voltage | 2000 volts |
| Minimum bending radius | 10 x Ø |
| Working temperature | -15°C to +90°C |
| Short circuit temperature | +250°C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores × Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| # × mm² | mm | kg/km | |
| 6 | 1×16 | 14.4 | 345 |
| 4 | 1×25 | 16 | 477 |
| 2 | 1×35 | 17.3 | 582 |
| 1 | 1×50 | 18.5 | 722 |
| 2/0 | 1×70 | 20.7 | 962 |
| 3/0 | 1×95 | 22.1 | 1173 |
| 4/0 | 1×120 | 24.6 | 1522 |
| 300MCM | 1×150 | 26.5 | 1821 |
| 350MCM | 1×185 | 28.5 | 2230 |
| 500MCM | 1×240 | 31.7 | 2,35 |
| 16 | 2×1.5 | 12.3 | 227 |
| 14 | 2×2.5 | 12.8 | 259 |
| 12 | 2×4 | 13.6 | 311 |
| 10 | 2×6 | 15.8 | 411 |
| 8 | 2×10 | 17.8 | 552 |
| 6 | 2×16 | 19.6 | 726 |
| 16 | 3×1.5 | 12.8 | 252 |
| 14 | 3×2.5 | 13.3 | 293 |
| 12 | 3×4 | 14.5 | 367 |
| 10 | 3×6 | 16.3 | 468 |
| 8 | 3×10 | 18.3 | 641 |
| 6 | 3×16 | 20.4 | 870 |
| 6 | 3×16/10 | 21.5 | 996 |
| 4 | 3×25/16 | 25.1 | 1468 |
| 2 | 3×35/16 | 27.9 | 1854 |
| 1 | 3×50/25 | 29.6 | 2101 |
| 2/0 | 3×70/35 | 37.8 | 3683 |
| 3/0 | 3×95/50 | 41.3 | 4613 |
| 4/0 | 3×120/70 | 46.9 | 6,023 |
| 300MCM | 3×150/70 | 54.7 | 7455 |
| 350MCM | 3×185/95 | 55.1 | 8890 |
| 500MCM | 3×240/120 | 62.5 | 11055 |
| 16 | 4×1.5 | 13.2 | 275 |
| 14 | 4×2.5 | 14.4 | 339 |
| 12 | 4×4 | 15.1 | 419 |
| 10 | 4×6 | 17.3 | 545 |
| 8 | 4×10 | 19.8 | 770 |
| 6 | 4×16 | 22.3 | 1062 |
| 4 | 4×25 | 26.5 | 1602 |
| 16 | 5×1.5 | 14.4 | 320 |
| 14 | 5×2.5 | 15.3 | 390 |
| 12 | 5×4 | 17.2 | 509 |
| 10 | 5×6 | 18.8 | 640 |
| 8 | 5×10 | 21.3 | 909 |
| 6 | 5×16 | 25.2 | 1304 |
| 16 | 6×1.5 | 15.8 | 394 |
| 16 | 7×1.5 | 15.8 | 412 |
| 16 | 10×1.5 | 17.8 | 521 |
| 16 | 12×1.5 | 19.2 | 603 |
| 16 | 16×1.5 | 20.8 | 714 |
| 16 | 19×1.5 | 21.8 | 792 |
| 16 | 24×1.5 | 23.3 | 914 |
| 16 | 27×1.5 | 25.4 | 1015 |
