These cables for energy distribution are suitable for all types of low voltage industrial-type connections. in urban grids, building installations. etc. Its high flexibility makes the installation process substantially easier and as a result is particularly suitable for use in difficult layouts. They can be buried or installed in a tube as well as outdoors. They are can also be used for street lighting, power supply of buildings, ship installations and generator installations. Lastly, these cables can withstand damp conditions including total immersion in water.
UNE 21123-2
IEC 60502
IEEE 383
UNE-EN 50265-2-1
UNE-EN 60502-1
IEC 60332-1

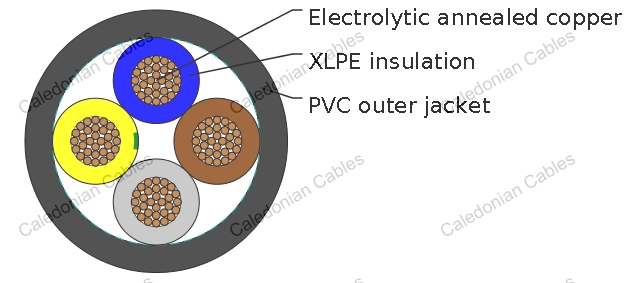

Flexible plain copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
XLPE (Cross-Linked Polyethylene) insulation to IEC60502
Color code VDE-0293-308
Flexible black PVC (Polyvinyl Chloride) jacket
| Working voltage | 600/1000 volts |
| Temperature Rating | -15°C to +90°C |
| Minimum Bending Radius | 5 x overall diameter |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores × Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| # × mm² | mm | mm | mm | kg/km | |
| Single core | |||||
| 14(50/30) | 1 x 2.5 | 0.7 | 1.4 | 6.2 | 54 |
| 12(56/28) | 1 x 4.0 | 0.7 | 1.4 | 6.7 | 70 |
| 10(84/28) | 1 x 6.0 | 0.7 | 1.4 | 7.3 | 90 |
| 8(80/26) | 1 x 10.0 | 0.7 | 1.4 | 8.2 | 133 |
| 6(128/26) | 1 x 16.0 | 0.7 | 1.4 | 9.2 | 189 |
| 4(200/26) | 1 x 25.0 | 0.9 | 1.4 | 11 | 284 |
| 2(280/26) | 1 x 35.0 | 0.9 | 1.4 | 12.1 | 381 |
| 1(400/26) | 1 x 50.0 | 1 | 1.4 | 13.8 | 517 |
| 2/0(356/24) | 1 x 70.0 | 1.1 | 1.4 | 15.7 | 712 |
| 3/0(485/24) | 1 x 95.0 | 1.1 | 1.5 | 17.6 | 923 |
| 4/0(614/24) | 1 x 120.0 | 1.2 | 1.5 | 19.2 | 1165 |
| 300MCM | 1 x 150.0 | 1.4 | 1.6 | 21.5 | 1446 |
| 350MCM | 1 x 185.0 | 1.6 | 1.7 | 23.9 | 1748 |
| 500MCM | 1 x 240.0 | 1.7 | 1.8 | 26.9 | 2280 |
| - | 1 x 300.0 | 1.8 | 1.8 | 29.6 | 2829 |
| - | 1 x 400.0 | 2 | 2.0 | 33.8 | 3731 |
| - | 1 x 500.0 | 2.2 | 2.2 | 37.4 | 4776 |
| - | 1 x 630.0 | 2.4 | 2.4 | 42.7 | 6276 |
| Two cores | |||||
| 16(30/30) | 2 x 1.5 | 0.7 | 1.8 | 8.2 | 90 |
| 14(50/30) | 2 x 2.5 | 0.7 | 1.8 | 9.2 | 120 |
| 12(56/28) | 2 x 4.0 | 0.7 | 1.8 | 10.3 | 161 |
| 10(84/28) | 2 x 6.0 | 0.7 | 1.8 | 11.3 | 211 |
| 8(80/26) | 2 x 10.0 | 0.7 | 1.8 | 13.2 | 316 |
| 6(128/26) | 2 x 16.0 | 0.7 | 1.8 | 14.9 | 450 |
| Three cores(including ground core ) | |||||
| 16(30/30) | 3 x 1.5 | 0.7 | 1.8 | 8.9 | 108 |
| 14(50/30) | 3 x 2.5 | 0.7 | 1.8 | 9.8 | 144 |
| 12(56/28) | 3 x 4.0 | 0.7 | 1.8 | 11 | 198 |
| 10(84/28) | 3 x 6.0 | 0.7 | 1.8 | 12.1 | 263 |
| 8(80/26) | 3 x 10.0 | 0.7 | 1.8 | 14.3 | 405 |
| Three cores | |||||
| 6(128/26) | 3 x 16.0 | 0.7 | 1.8 | 16.4 | 593 |
| 4(200/26) | 3 x 25.0 | 0.9 | 1.8 | 21.3 | 975 |
| 2(280/26) | 3 x 35.0 | 0.9 | 1.8 | 24.1 | 1319 |
| 1(400/26) | 3 x 50.0 | 1 | 1.8 | 27.8 | 1812 |
| 2/0(356/24) | 3 x 70.0 | 1.1 | 1.9 | 30.8 | 2463 |
| Four cores(including ground core ) | |||||
| 16(30/30) | 4 x 1.5 | 0.7 | 1.8 | 9.7 | 129 |
| 14(50/30) | 4 x 2.5 | 0.7 | 1.8 | 10.7 | 175 |
| 12(56/28) | 4 x 4.0 | 0.7 | 1.8 | 12 | 243 |
| 10(84/28) | 4 x 6.0 | 0.7 | 1.8 | 13.4 | 328 |
| 8(80/26) | 4 x 10.0 | 0.7 | 1.8 | 15.7 | 505 |
| Four cores | |||||
| 6(128/26) | 4 x 16.0 | 0.7 | 1.8 | 18.2 | 749 |
| 4(200/26) | 4 x 25.0 | 0.9 | 1.8 | 24.1 | 1245 |
| 2(280/26) | 4 x 35.0 | 0.9 | 1.8 | 26.3 | 1671 |
| 1(400/26) | 4 x 50.0 | 1 | 1.8 | 31.3 | 2313 |
| 2/0(356/24) | 4 x 70.0 | 1.1 | 2.0 | 36.1 | 3204 |
| 3/0(485/24) | 4 x 95.0 | 1.1 | 2.2 | 40.2 | 4126 |
| 4/0(614/24) | 4 x 120.0 | 1.2 | 2.4 | 44.6 | 5245 |
| 300MCM | 4 x 150.0 | 1.4 | 2.6 | 49.8 | 6573 |
| 350MCM | 4 x 185.0 | 1.6 | 2.8 | 56.1 | 8050 |
| 500MCM | 4 x 240.0 | 1.7 | 3.0 | 64.5 | 10695 |
| Five cores(including ground core ) | |||||
| 16(30/30) | 5 x 1.5 | 0.7 | 1.8 | 10.4 | 153 |
| 14(50/30) | 5 x 2.5 | 0.7 | 1.8 | 11.6 | 213 |
| 12(56/28) | 5 x 4.0 | 0.7 | 1.8 | 13.2 | 298 |
| 10(84/28) | 5 x 6.0 | 0.7 | 1.8 | 14.7 | 403 |
| 8(80/26) | 5 x 10.0 | 0.7 | 1.8 | 17.2 | 624 |
| 6(128/26) | 5 x 16.0 | 0.7 | 1.8 | 20.2 | 931 |
| 4(200/26) | 5 x 25.0 | 0.9 | 1.8 | 25.6 | 1555 |
| 2(280/26) | 5 x 35.0 | 0.9 | 1.8 | 29.3 | 2076 |
| 1(400/26) | 5 x 50.0 | 1 | 2.0 | 34.5 | 2878 |
