    H01N2-D/E (NSKFFÖU)

    Application and Description

    These cables are used as a connection between the welding generator, the hand-electrode and the work piece. For use in the automobile industry, ship building, transport and conveyor systems, tool making machinery, welding robots etc.

    These cables retain their high flexibility even under influence of ozone, light, oxygen, protective gases, oil and petrol. Robust cable structure of these cables makes them resistant to low and high temperature, fire, ozone and radiation, oils, acids, fats and petrols.

    These cables are also ideal for outside installation in dry, moist and wet areas.

    Standard and Approval

    UNE 21027

    HD22.6 S2

    VDE-0282 Part-6

    IEC 60332.3

    IEC 60754.1

    UNEL 35368

    CEI 20-22 II

    CEI 20-38

    CE low voltage directive 73/23/EEC & 93/68/EEC

    ROHS compliant

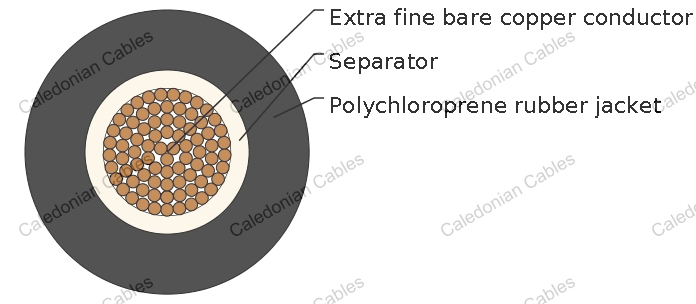

    Cable Construction

    Extra fine bare copper strands

    Strands to DIN VDE 0295, BS 6360, IEC 60228 and HD 383

    Strands to VDE-0295 as listed below

    Synthetic or paper separator over core

    Polychloroprene rubber (neoprene) jacket EM5

    Technical Characteristics

    Working voltage 100/100 volts
    Test voltage 1000 volts
    Flexing bending radius 12.0 x Ø
    Fixed bending radius 7.5 x Ø
    Flexing Temperature -25°C to +80°C
    Fixed Temperature -40°C to +80°C
    Flame retardant IEC 60332.1

    Cable Parameter

    Cables with Standard and Approval flexibility

    AWG No. of Cores × Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
    # × mm² mm mm kg/km kg/km
    8(320/32) 1 x 10 2.0 7.7-9.7 96 135
    6(512/32) 1 x 16 2.0 8.8-11.0 154 205
    4(800/32) 1 x 25 2.0 10.1-12.7 240 302
    2(1120/32) 1 x 35 2.0 11.4-14.2 336 420
    1(1600/32) 1 x 50 2.2 13.2-16.5 480 586
    2/0(2240/32) 1 x 70 2.4 15.3-19.2 672 798
    3/0(3024/32) 1 x 95 2.6 17.1-21.4 912 1015
    4/0(614/24) 1 x 120 2.8 19.2-24.0 1152 1310
    300MCM(765/24) 1 x 150 3.0 21.2-26.4 1440 1620
    350MCM(944/24) 1 x 185 3.2 23.1-28.9 1776 1916
    500MCM(1225/24) 1 x 240 3.4 25.0-29.5 2304 2540

    Cables with extreme high flexibility

    AWG No. of Cores × Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
    # × mm² mm mm kg/km kg/km
    8(566/35) 1 x 10 1.2 6.2-7.8 96 119
    6(903/35) 1 x 16 1.2 7.3-9.1 154 181
    4(1407/35) 1 x 25 1.2 8.6-10.8 240 270
    2(1974/35) 1 x 35 1.2 9.8-12.3 336 363
    1(2830/35) 1 x 50 1.5 11.9-14.8 480 528
    2/0(3952/35) 1 x 70 1.8 13.6-17.0 672 716
    3/0(5370/35) 1 x 95 1.8 15.6-19.5 912 1012
    4/0(3819/32) 1 x 120 1.8 17.2-21.6 1152 1190
    300MCM(4788/32) 1 x 150 1.8 18.8-23.5 1440 1305
    500MCM(5852/32) 1 x 185 1.8 20.4-25.5 1776 1511
