Flexible LSZH cable for fixed installations. Suitable for transport and distribution of electric power. This cable is manufactured with flexible conductors in order to facilitate installations with sinuous courses. For indoor and outdoor use.
UNE 21022
IEC 60502
EN 60332-1
EN 50266
EN 50267-1
EN 50267-2
EN 61034
IEC 60332-1
IEC 60332-3
IEC 60754-1
IEC 60754-2
IEC 61034

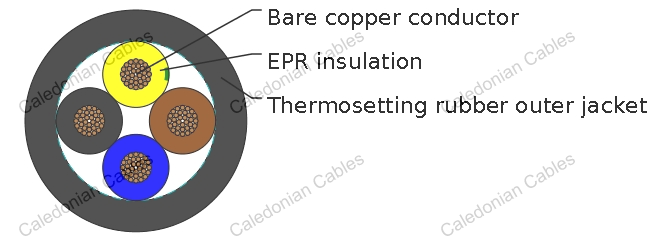

Flexible electrolytic annealed copper conductor
Class 5 in accordance with IEC 60228.
Thermosetting rubber type EPR insulation
Color coded to HD308 and HD186, 6 or more conductors: black numbered + green/yellow
Green-yellow grounding, 3 conductors and above
Thermosetting rubber type EM8 outer sheath
| Working voltage | 600/1000 volts |
| Test voltage | 3500 volts |
| Minimum bending radius | 5 x Ø |
| Working temperature | -20°C to +90°C |
| Short circuit temperature | +250°C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores × Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| # × mm² | mm | kg/km | |
| 16(30/30) | 1×1.5 | 5.8 | 56 |
| 14(50/30) | 1×2.5 | 6.3 | 67 |
| 12(56/28) | 1×4 | 6.8 | 82 |
| 10(84/28) | 1×6 | 7.3 | 106 |
| 8(80/26) | 1×10 | 8.4 | 153 |
| 6(128/26) | 1×16 | 9.5 | 210 |
| 4(200/26) | 1×25 | 11.1 | 308 |
| 2(280/26) | 1×35 | 14.3 | 413 |
| 16(30/30) | 2×1.5 | 9.8 | 120 |
| 14(50/30) | 2×2.5 | 10.7 | 151 |
| 12(56/28) | 2×4 | 11.6 | 193 |
| 10(84/28) | 2×6 | 12.7 | 255 |
| 8(80/26) | 2×10 | 14.9 | 377 |
| 6(128/26) | 2×16 | 16.9 | 552 |
| 16(30/30) | 3×1.5 | 10.2 | 137 |
| 14(50/30) | 3×2.5 | 11.2 | 174 |
| 12(56/28) | 3×4 | 12.2 | 233 |
| 10(84/28) | 3×6 | 13.4 | 325 |
| 8(80/26) | 3×10 | 16.0 | 480 |
| 6(128/26) | 3×16 | 19.8 | 696 |
| 4(200/26) | 3×25 | 21.6 | 1040 |
| 2(280/26) | 3×35 | 24.8 | 1408 |
| 16(30/30) | 4×1.5 | 11.0 | 163 |
| 14(50/30) | 4×2.5 | 12.1 | 211 |
| 12(56/28) | 4×4 | 13.2 | 283 |
| 10(84/28) | 4×6 | 14.6 | 385 |
| 8(80/26) | 4×10 | 17.3 | 583 |
| 6(128/26) | 4×16 | 19.8 | 875 |
