    DN-F

    Application and Description

    Flexible cable for mobile heavy duty. Suitable for installations in dry, damp or wet locations, outdoors, for hazardous areas with explosive gas atmospheres, machines in industrial workshops, motors and transportable machines; on construction sites and for agricultural exploitations. Suitable for submerged installations (AD8).

    Standard and Approval

    UNE 21150

    UNE 21166

    EN 60332-1

    IEC 60332-1

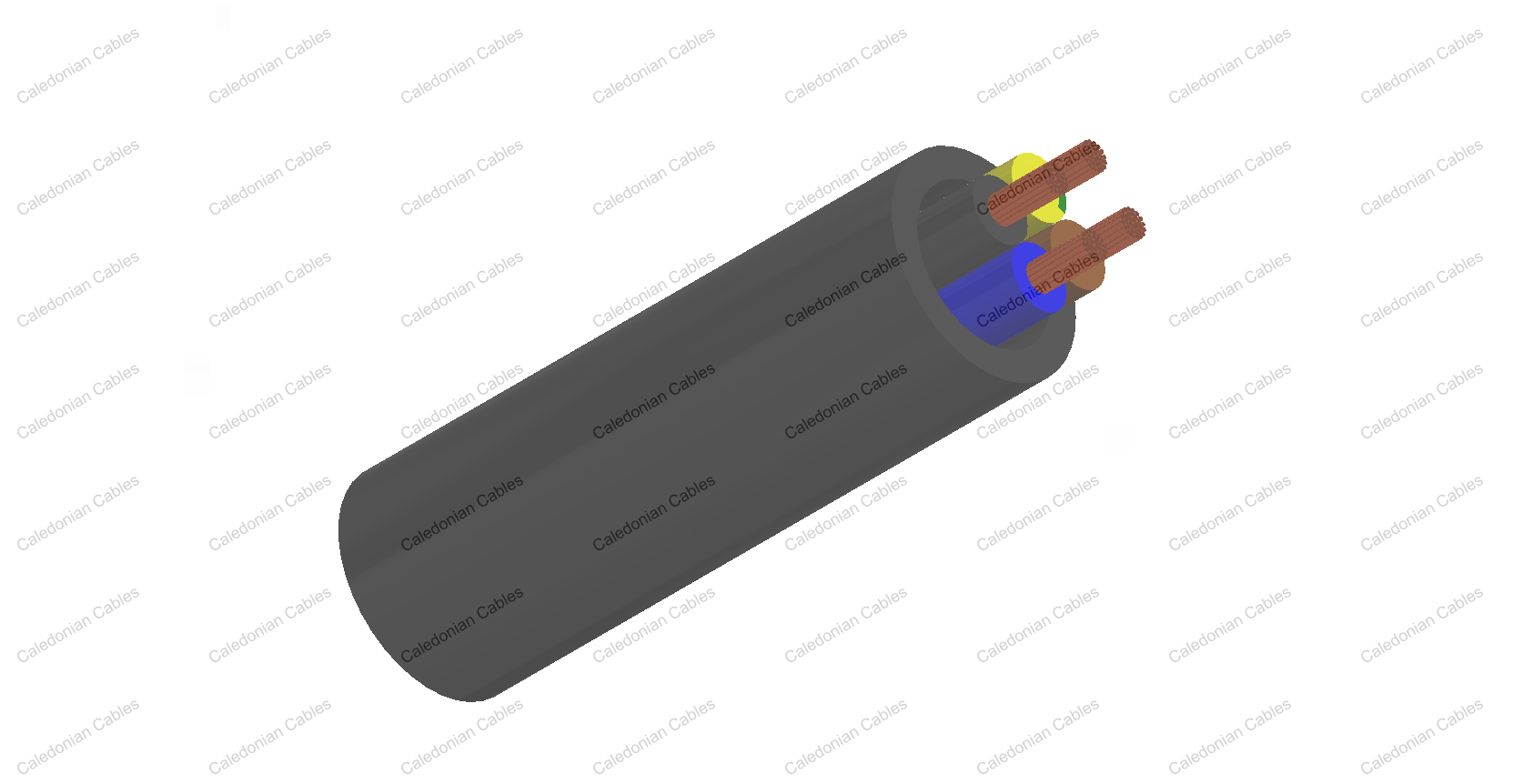

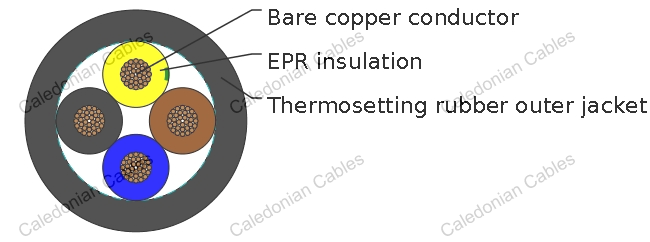

    Cable Construction

    Flexible electrolytic annealed copper conductor

    Class 5 or class 6 in accordance with IEC 60228.

    Thermosetting rubber type EPR insulation

    Color coded to HD308 and HD186, 6 or more conductors: black numbered + green/yellow

    Green-yellow grounding, 3 conductors and above

    Thermosetting rubber type SE1 outer sheath

    Technical Characteristics

    Working voltage 600/1000 volts
    Test voltage 2000 volts
    Minimum bending radius 3 x Ø
    Working temperature -25°C to +90°C
    Short circuit temperature +250°C
    Flame retardant IEC 60332.1
    Insulation resistance 20 MΩ x km

    Cable Parameter

    AWG No. of Cores × Nominal Cross Sectional Area Nominal Overall Diameter Nominal Weight
    # × mm² mm kg/km
    10(84/28) 1×6 8.3 113
    8(80/26) 1×10 10.0 176
    6(128/26) 1×16 11.1 242
    4(200/26) 1×25 13.2 353
    2 (280/26) 1×35 14.7 470
    1(400/26) 1×50 17.1 645
    2/0 (356/24) 1×70 19.2 865
    3/0 (485/24) 1×95 21.7 1121
    4/0 (614/24) 1×120 23.4 1393
    300 MCM (765/24) 1×150 25.9 1717
    350 MCM (944/24) 1×185 28.8 2079
    500MCM (1225/24) 1×240 31.9 2668
    - 1×300 34.9 3272
    16(30/30) 2×1.5 9.3 115
    14(50/30) 2×2.5 10.7 166
    12(56/28) 2×4 12.3 226
    10(84/28) 2×6 13.6 286
    8(80/26) 2×10 18.0 505
    6(128/26) 2×16 21.3 713
    4(200/26) 2×25 25.7 1050
    16(30/30) 3×1.5 10.9 163
    14(50/30) 3×2.5 12.2 216
    12(56/28) 3×4 13.9 296
    10(84/28) 3×6 15.4 385
    8(80/26) 3×10 20.0 646
    6(128/26) 3×16 22.3 876
    4(200/26) 3×25 26.8 1292
    2(280/26) 3×35 29.7 1691
    1(400/26) 3×50 35.4 2357
    2/0 (356/24) 3×70 39.6 3118
    3/0 (485/24) 3×95 45.1 4068
    16(30/30) 4×1.5 11.9 199
    14(50/30) 4×2.5 13.5 269
    12(56/28) 4×4 15.9 387
    10(84/28) 4×6 18.1 516
    8(80/26) 4×10 21.5 790
    6(128/26) 4×16 24.2 1081
