These cables are suitable for direct burial without extra mechanical protection, fixed to the walls, laid on cable trays or raceways. May also be suitable for use in premises which poses a risk of explosion with mechanical protection is necessary and in this case the intensity must be reduced by 15%.
IEC60502-1
NP2365

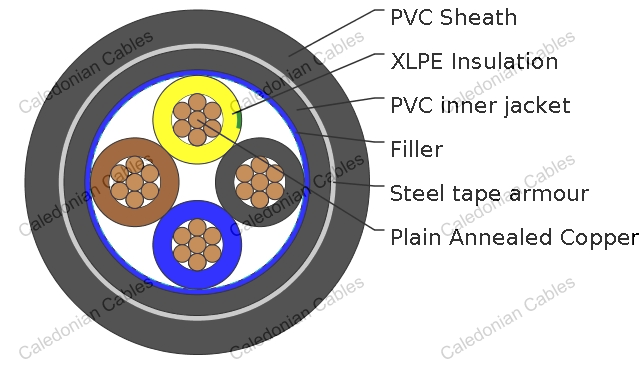

Flexible copper strands
Strands to NP 2363, ≤4mm²,class 1, ≥6mm²,class 2
XLPE insulation according to NF C 32-321
Color coded to HD 308
Not fibrous and not hygroscopic filler(optional)
PVC inner jacket
Two steel tapes helically wraped armour
Flexible PVC outer jacket
| Working Voltage | 600/1000 volts |
| Test voltage | 3500 volts |
| Minimum bending radius | 6 x Ø |
| Operation temperature range | -10°C to 60°C |
| Short-circuit temperature | 250°C |
| Flame retardant | IEC 60332-1/NF C 32-070 C2 |
| Insulation resistance | 1000 MΩ x km |
| Cross Section | Insulation thickness | Amour thickness | Minimum Sheath thickness | Maximum Overall diameter | Approx Cable weight |
|---|---|---|---|---|---|
| mm² | mm | mm | mm | mm | kg/km |
| 2x 1.5 | 0.7 | 0.2 | 1.3 | 11.5 | 230 |
| 2x 2.5 | 0.7 | 0.2 | 1.3 | 12.5 | 275 |
| 2x 4 | 0.7 | 0.2 | 1.4 | 13.5 | 330 |
| 2x 6 | 0.7 | 0.2 | 1.4 | 15.5 | 430 |
| 2x 10 | 0.7 | 0.2 | 1.4 | 16.5 | 555 |
| 2x 16 | 0.7 | 0.2 | 1.5 | 19 | 770 |
| 2x 25 | 0.9 | 0.2 | 1.6 | 22.5 | 1080 |
| 2x 35 | 0.9 | 0.2 | 1.7 | 25 | 1390 |
| 3x 1.5 | 0.7 | 0.2 | 1.3 | 12 | 255 |
| 3x 2.5 | 0.7 | 0.2 | 1.3 | 13 | 305 |
| 3x 4 | 0.7 | 0.2 | 1.4 | 14 | 380 |
| 3x 6 | 0.7 | 0.2 | 1.4 | 16 | 500 |
| 3x 10 | 0.7 | 0.2 | 1.5 | 17.5 | 665 |
| 3x 16 | 0.7 | 0.2 | 1.5 | 20 | 930 |
| 3x 25 | 0.9 | 0.2 | 1.6 | 24 | 1325 |
| 3x 35 | 0.9 | 0.2 | 1.7 | 26.5 | 1720 |
| 3x 50 | 0.9 | 0.2 | 1.8 | 29 | 2125 |
| 3x 70 | 1.1 | 0.2 | 2 | 34.5 | 3080 |
| 3x 95 | 1.1 | 0.5 | 2.1 | 40 | 4505 |
| 3x 120 | 1.2 | 0.5 | 2.3 | 44.5 | 5540 |
| 3x 150 | 1.4 | 0.5 | 2.4 | 48.5 | 6655 |
| 3x 185 | 1.6 | 0.5 | 2.5 | 53.5 | 8150 |
| 3x 240 | 1.7 | 0.5 | 2.7 | 61 | 10575 |
| 3x 300 | 1.8 | 0.5 | 2.9 | 66.5 | 13055 |
| 3x 50+35 | 1.0/09 | 0.2 | 1.9 | 33 | 2730 |
| 3x 70+50 | 1.1/0.9 | 0.2 | 2 | 36 | 3440 |
| 3x 95+50 | 1.1/1.0 | 0.5 | 2.2 | 42.5 | 5080 |
| 3x 120+70 | 1.2/1.1 | 0.5 | 2.3 | 46.5 | 6275 |
| 3x 150+70 | 1.4/1.1 | 0.5 | 2.5 | 50 | 7340 |
| 3x 185+70 | 1.6/1.1 | 0.5 | 2.6 | 56 | 8975 |
| 3x 240+95 | 1.7/1.1 | 0.5 | 2.8 | 62.5 | 11435 |
| 4x 1.5 | 0.7 | 0.2 | 1.3 | 13 | 290 |
| 4x 2.5 | 0.7 | 0.2 | 1.4 | 14 | 355 |
| 4x 4 | 0.7 | 0.2 | 1.4 | 15 | 440 |
| 4x 6 | 0.7 | 0.2 | 1.4 | 17 | 585 |
| 4x 10 | 0.7 | 0.2 | 1.5 | 19 | 800 |
| 4x 16 | 0.7 | 0.2 | 1.6 | 22 | 1120 |
| 4x 25 | 0.9 | 0.2 | 1.7 | 26 | 1650 |
| 4x 35 | 0.9 | 0.2 | 1.8 | 29 | 2135 |
| 4x 50 | 1 | 0.2 | 1.9 | 32.5 | 2745 |
| 4x 70 | 1.1 | 0.5 | 2.1 | 39 | 4295 |
| 4x 95 | 1.1 | 0.5 | 2.3 | 44.5 | 5660 |
| 4x 120 | 1.2 | 0.5 | 2.4 | 48.5 | 6880 |
| 4x 150 | 1.4 | 0.5 | 2.6 | 53 | 8315 |
| 4x 185 | 1.6 | 0.5 | 2.7 | 60.5 | 10510 |
| 4x 240 | 1.7 | 0.5 | 2.9 | 67 | 13370 |
| 4x 300 | 1.8 | 0.5 | 3.1 | 73 | 16360 |
| 5x 1.5 | 0.7 | 0.2 | 1.4 | 14 | 335 |
| 5x 2.5 | 0.7 | 0.2 | 1.4 | 15 | 415 |
| 5x 4 | 0.7 | 0.2 | 1.4 | 16 | 515 |
| 5x 6 | 0.7 | 0.2 | 1.5 | 18.5 | 705 |
| 5x 10 | 0.7 | 0.2 | 1.6 | 21 | 955 |
| 5x 16 | 0.7 | 0.2 | 1.8 | 23.5 | 1340 |
| 5x 25 | 0.9 | 0.2 | 1.8 | 29.5 | 2085 |
| 7x 1.5 | 0.7 | 0.2 | 1.4 | 15 | 395 |
| 7x 2.5 | 0.7 | 0.2 | 1.4 | 16 | 495 |
| 12x 1.5 | 0.7 | 0.2 | 1.5 | 19 | 605 |
| 12x 2.5 | 0.7 | 0.2 | 1.5 | 20.5 | 750 |
| 19x 1.5 | 0.7 | 0.2 | 1.5 | 21.5 | 775 |
| 19x 2.5 | 0.7 | 0.2 | 1.6 | 24 | 1045 |
| 24x 1.5 | 0.7 | 0.2 | 1.6 | 24.5 | 980 |
| 24x 2.5 | 0.7 | 0.5 | 1.7 | 29 | 1570 |
| 27x 1.5 | 0.7 | 0.2 | 1.7 | 25 | 1050 |
| 27x 2.5 | 0.7 | 0.2 | 1.8 | 28.5 | 1410 |
| 37x 1.5 | 0.7 | 0.2 | 1.7 | 28 | 1320 |
| 37x 2.5 | 0.7 | 0.2 | 1.8 | 31.5 | 1790 |
