These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, but it can not be embedded in concrete.

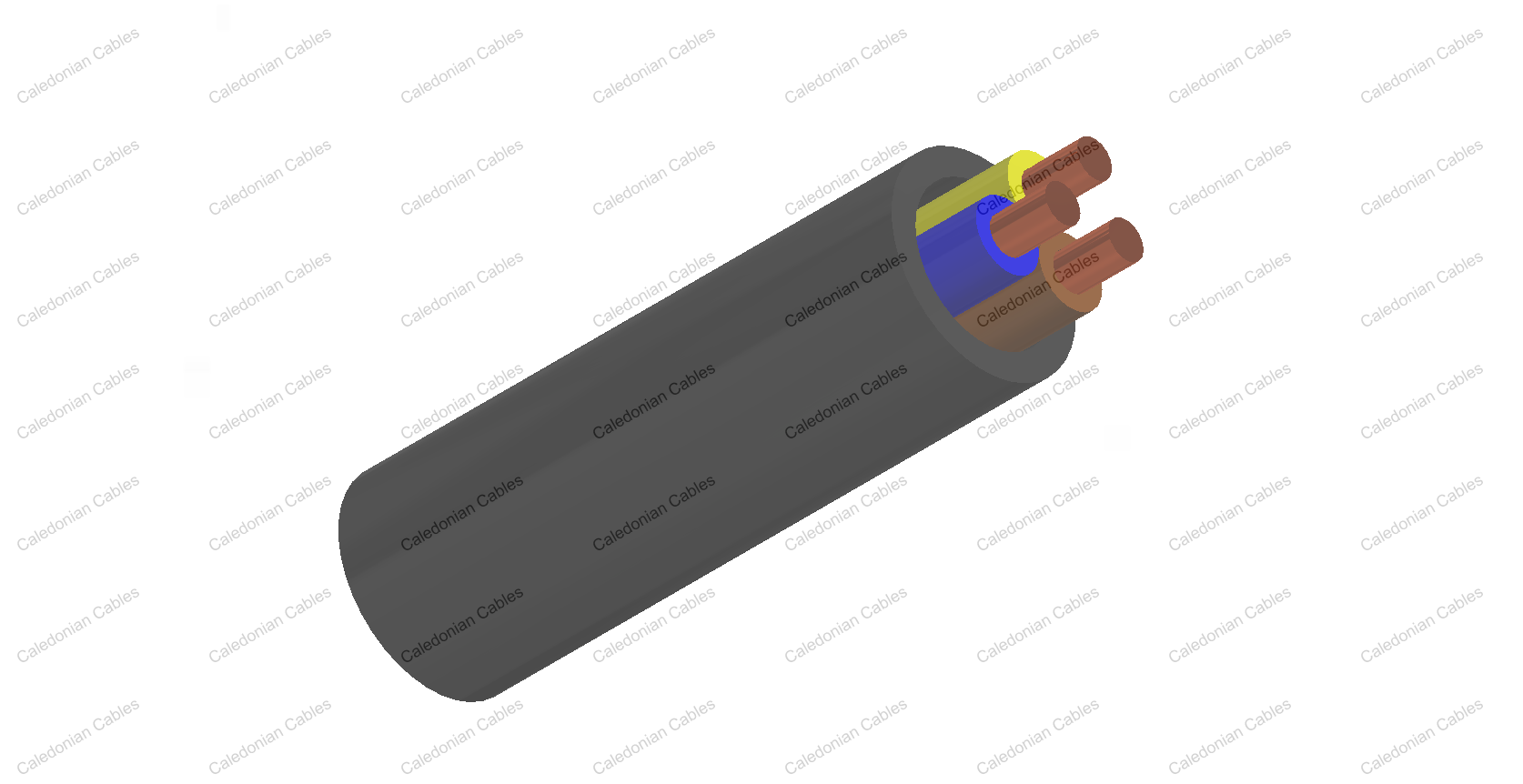

NP - 2356/4

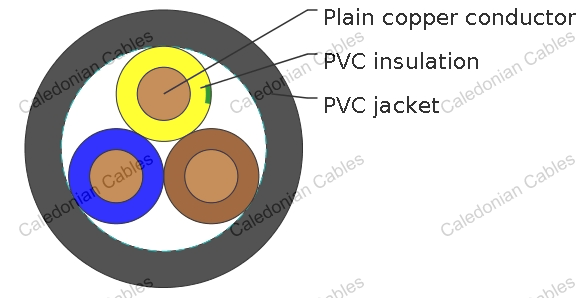

Solid copper conductor, class 1 to NP 2363
PVC insulation
Color coded to HD 308
Flexible PVC outer jacket
| Working voltage | 300/500 volts |
| Test voltage | 2000 volts |
| Flexing bending radius | 15 x Ø |
| Static bending radius | 12 x Ø |
| Flexing Temperature | -5ºC to +50ºC |
| Fixed installation temperature | - 40ºC to +70ºC |
| Flame retardant | IEC 60332-1 |
| Insulation resistance | 100 MΩ x km |
| No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight | No. of Cores x Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| # x mm² | mm | kg/km | # x mm² | mm | kg/km |
| 2x1.5 | 9.0 | 110 | 3x1.5 | 9.5 | 125 |
| 2x2.5 | 10.0 | 145 | 3x2.5 | 10.5 | 175 |
| 2x4 | 11.0 | 190 | 3x4 | 11.5 | 24 |
| 4x1.5 | 10.0 | 155 | 5x1.5 | 11.0 | 185 |
| 4x2.5 | 11.5 | 215 | 5x2.5 | 13.0 | 260 |
| 4x4 | 13.0 | 300 | 5x4 | 14.5 | 380 |
| 4x6 | 14.5 | 410 | 5x6 | 16.0 | 490 |
