    LXV

    Application and Description

    These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

    Standard and Approval

    IEC 60502-1 NP2365

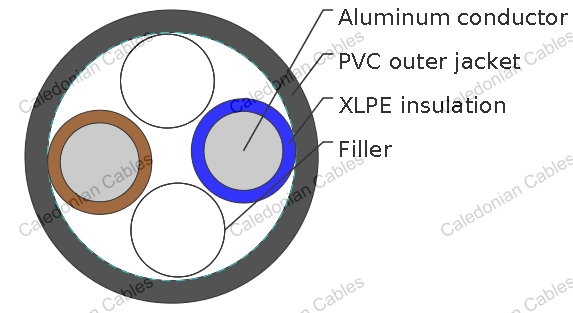

    Cable Construction

    Aluminium conductor, class 1/class 2 to NP2363

    XLPE insulation

    Colour coded to HD 308

    Not fibrous and not hygroscopic filler

    Flexible PVC, type ST2 outer jacket

    Technical Characteristics

    Voltage Rating 600/1000V
    Test voltage 3500 volts
    Minimum bending radius 12 x Ø
    Operation temperature range -15°C to 90°C
    Short-circuit temperature 250°C
    Flame retardant IEC 60332.1
    Insulation resistance 1000 MΩ x km

    Cable Parameter

    No. of Cores x Nominal Cross Sectional Area Nominal Overall Diameter Nominal Weight
    # x mm² mm kg/km
    1 x 16 9.0 100
    1 x 25 10.5 145
    1 x 35 12.0 175
    1 x 50 13.0 230
    1 x 70 15.0 300
    1 x 95 17.0 395
    1 x 120 18.5 460
    1 x 150 20.5 590
    1 x 185 22.5 720
    1 x 240 25.5 910
    1 x 300 28.0 1150
    1 x 400 32.0 1400
    1 x 500 35.0 1850
    2 x 16 17.0 320
    2 x 25 20.0 470
    2 x 35 17.5 370
    2 x 50 19.5 460
    2 x 70 22.5 600
    2 x 95 26.0 830
    2 x 120 29.0 1020
    2 x 150 31.5 1300
    2 x 185 35.5 1550
    2 x 240 39.5 1900
    2 x 300 43.5 2350
    3 x 16 17.5 380
    3 x 25 21.0 530
    3 x 35 20.0 510
    3 x 50 22.5 620
    3 x 70 26.5 880
    3 x 95 30.0 1200
    3 x 120 33.0 1500
    3 x 150 37.0 1750
    3 x 185 41.0 2200
    3 x 240 46.5 2800
    3 x 300 51.5 3500
    4x 16 18.0 330
    4x 25 22.5 480
    4x 35 23.0 610
    4x 50 26.0 770
    4x 70 29.0 1020
    4x 95 34.5 1350
    4x 120 38.0 1750
    4x 150 42.5 2050
    4x 185 47.5 2600
    4x 240 53.5 3400
    4x 300 59.5 4200
