    H05VV-F

    Application and Description

    These cables are suited for medium mechanical stress in damp and wet environments such as refrigerators, washing machines, spin dryers and other appliances, as long as it meets applicable equipment specifications. These cables are also suited for cooking and heating apparatus, provided that the cable does not come into direct contact with the hot parts of the apparatus or with any other heat source. Further applications of this cable include: Fixed installation in furniture, partition walls, decorative covering, and in the hollow spaces of prefabricated building parts. They are not suitable for outdoor use, industrial (except clothing manufacture) or farming applications. Max operating voltage in single or three phase system is Uo/U 318/550 volts. In a direct system, max operating voltage is Uo/U 413/825 volts.

    Standard and Approval

    NP2356/5

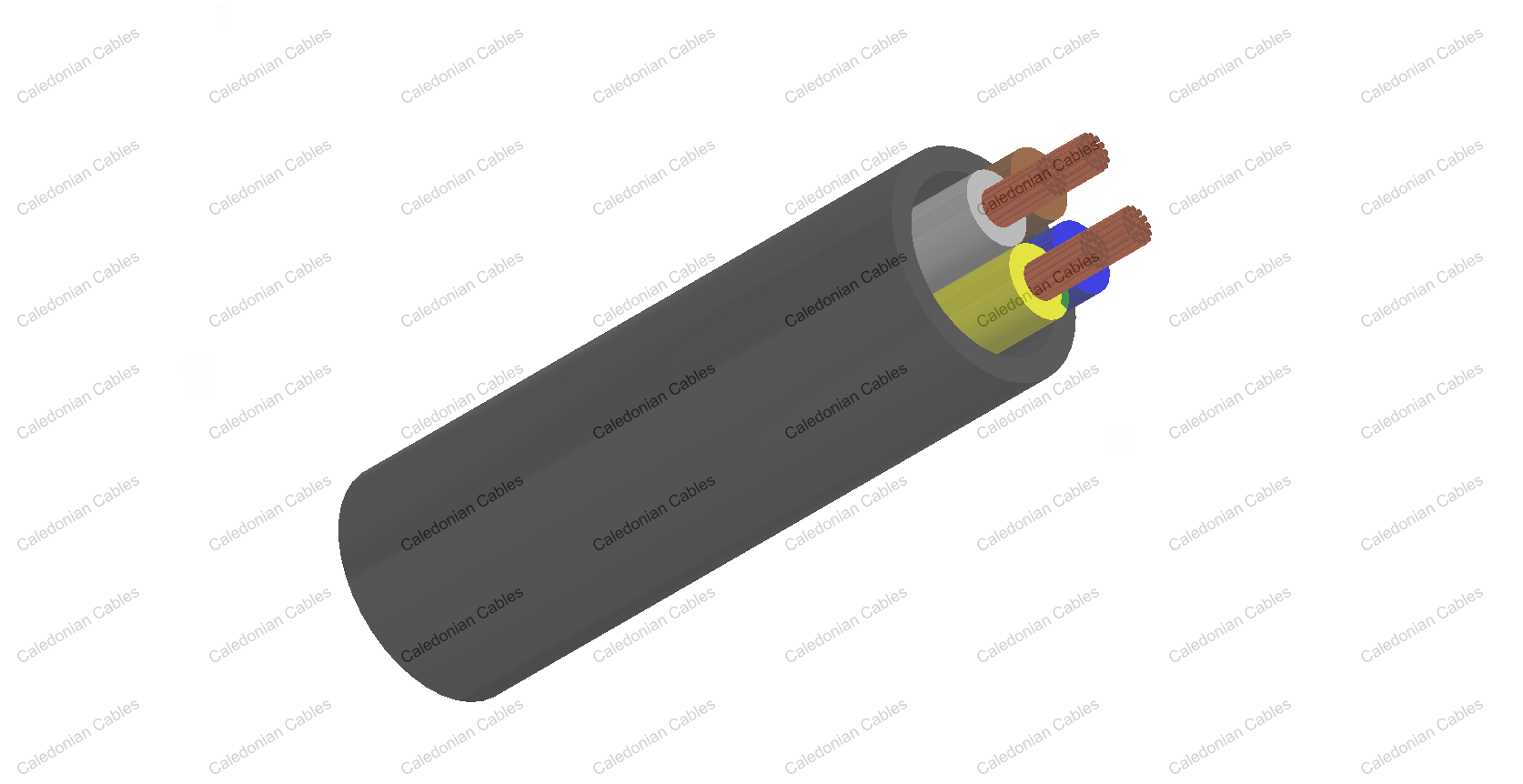

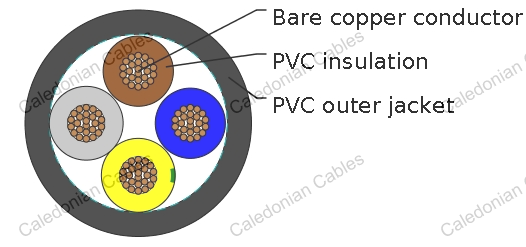

    Cable Construction

    Bare copper fine wire conductor

    Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383

    PVC core insulation TI2 to VDE-0281 Part 1

    Color coded to VDE-0293-308

    Green-yellow grounding (3 conductors and above)

    PVC outer jacket TM2

    Technical Characteristics

    Working voltage 300/500 volts
    Test voltage 2000 volts
    Flexing bending radius 7.5 x Ø
    Static bending radius 4 x Ø
    Flexing Temperature -5°C to +70°C
    Static temperature -40°C to +70°C
    Short circuit temperature +160°C
    Flame retardant IEC 60332.1
    Insulation resistance 100 MΩ x km

    Cable Parameter

    No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Copper Weight Nominal Weight
    # x mm² mm mm mm kg/km kg/km
    2 x 0.75 0.6 0.8 6.4 14.4 57
    3 x 0.75 0.6 0.8 6.8 21.6 68
    4 x 0.75 0.6 0.8 7.4 29 84
    5 x 0.75 0.6 0.9 8.5 36 106
    2 x 1.00 0.6 0.8 6.8 19 65
    3 x 1.00 0.6 0.8 7.2 29 79
    4 x 1.00 0.6 0.9 8.0 38 101
    5 x 1.00 0.6 0.9 8.8 48 123
    2 x 1.50 0.7 0.8 7.6 29 87
    3 x 1.50 0.7 0.9 8.2 43 111
    4 x 1.50 0.7 1.0 9.2 58 142
    5 x 1.50 0.7 1.1 10.5 72 176
    2 x 2.50 0.8 1.0 9.2 48 134
    3 x 2.50 0.8 1.1 10.1 72 169
    4 x 2.50 0.8 1.1 11.2 96 211
    5 x 2.50 0.8 1.2 12.4 120 262
    3 x 4.00 0.8 1.2 11.3 115 233
    4 x 4.00 0.8 1.2 12.5 154 292
    5 x 4.00 0.8 1.4 13.7 192 369
    3 x 6.00 0.8 1.1 13.1 181 328
    4 x 6.00 0.8 1.3 13.9 230 490
