    H05V-U/H07V-U/H07V-R

    Application and Description

    H05 V-U/(H)05 V-U

    These insulated wires are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.

    H07 V-U/(H)07 V-U

    These insulated wires are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against ground.

    H07 V-R

    These cables are preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required.

    Standard and Approval

    NP2356/3

    Cable Construction

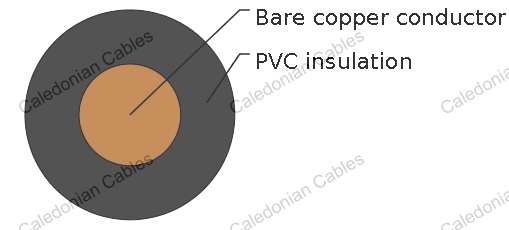

    Solid bare copper single wire

    Solid to DIN VDE 0295 cl-1 and NP 2363 cl-1(for H05V-U / H07V-U), cl-2(for H07V-R)

    Special PVC TI1 core insulation

    Color coded to HD 308

    Technical Characteristics

    Working voltage 300/500v (H05V-U); 450/750v (H07V-U/H07-R)
    Test voltage 2000V(H05V-U); 2500V (H07V-U/H07-R)
    Bending radius 15 x Ø
    Flexing Temperature -5ºC to +70ºC
    Static temperature -30ºC to +90ºC
    Short circuit temperature +160ºC
    Flame retardant IEC 60332.1
    Insulation resistance 100 MΩ x km

    Cable Parameter

    No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal Copper Weight Nominal Weight
    # x mm² mm mm kg/km kg/km
    H05V-U
    1x 0.5 0.6 2.1 4.8 9
    1x 0.75 0.6 2.2 7.2 11
    1x 1 0.6 2.4 9.6 14
    H07V-U
    1x 1.5 0.7 2.9 14.4 21
    1x 2.5 0.8 3.5 24.0 33
    1x 4 0.8 3.9 38.0 49
    1x 6 0.8 4.5 58.0 69
    1x 10 1.0 5.7 96.0 115
    H07V-R
    1x 1.5 0.7 3 14.4 23
    1x 2.5 0.8 3.6 24 35
    1x 4 0.8 4.2 39 51
    1x 6 0.8 4.7 58 71
    1x 10 1 6.1 96 120
    1x 16 1 7.2 154 170
    1x 25 1.2 8.4 240 260
    1x 35 1.2 9.5 336 350
    1x 50 1.4 11.3 480 480
    1x 70 1.4 12.6 672 680
    1x 95 1.6 14.7 912 930
    1x 120 1.6 16.2 1152 1160
    1x 150 1.8 18.1 1440 1430
    1x 185 2 20.2 1776 1780
    1x 240 2.2 22.9 2304 2360
