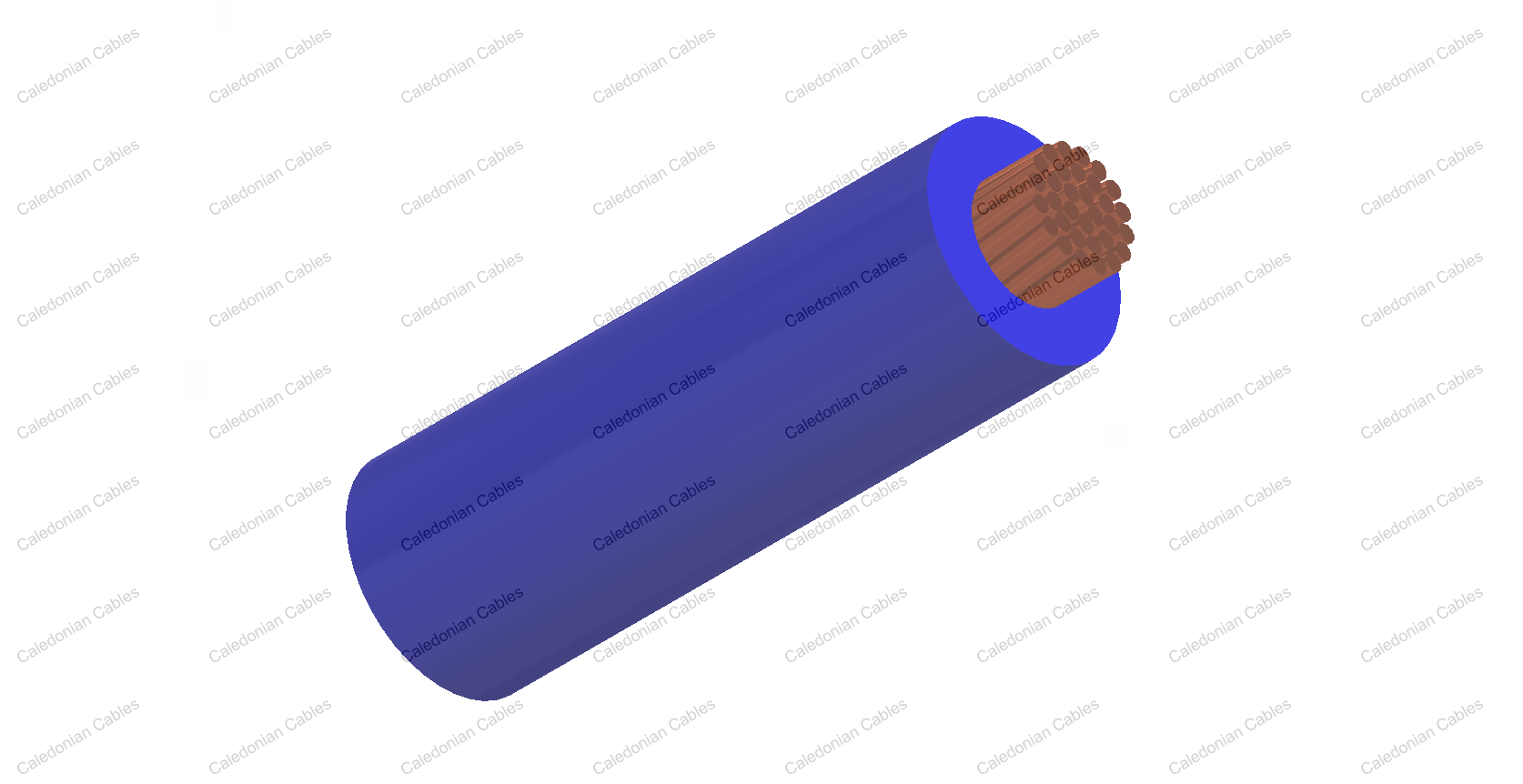

These insulated wires are determined for installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under and surface mounting of plasters.
NP2356/3

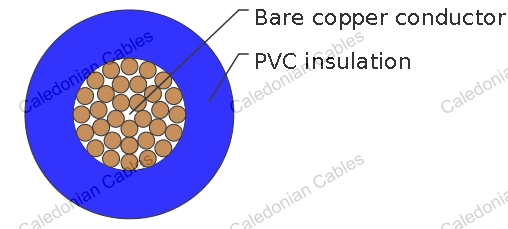

Fine bare copper strands
Strands to VDE-0295 Class-5, NP 2363 Class-5
Special PVC TI1 core insulation
Color coded to HD 308
| Working voltage | 300/500 volts |
| Test voltage | 2000 volts |
| Flexing bending radius | 12.5 x Ø |
| Static bending radius | 12.5 x Ø |
| Flexing Temperature | -5°C to +70°C |
| Static temperature | -30°C to +80°C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 100 MΩ x km |
| No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
|---|---|---|---|---|
| # x mm² | mm | mm | kg/km | kg/km |
| 1 x 0.5 | 0,6 | 2.1 | 4.9 | 10 |
| 1 x 0.75 | 0,6 | 2.4 | 7.2 | 13 |
| 1 x 1 | 0,6 | 2.6 | 9.6 | 15 |
