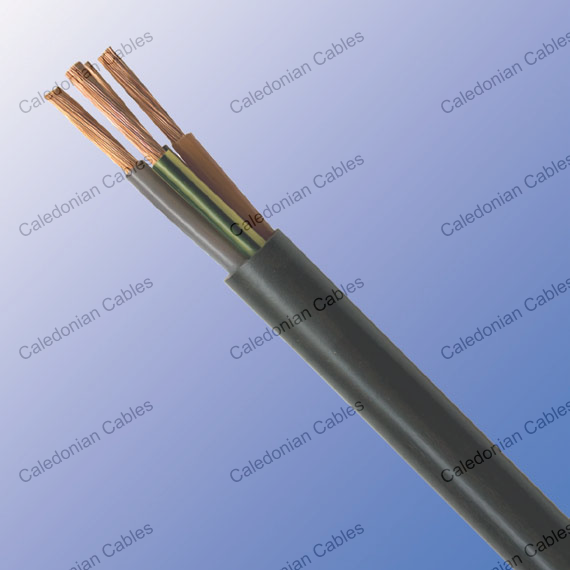

    FXV

    • FXV, Portuguese Standard Industrial Cables

    Application and Description

    These cables for energy distribution are suitable for all types of low voltage industrial-type connections. in urban grids, building installations. etc. Its high flexibility makes the installation process substantially easier and as a result is particularly suitable for use in difficult layouts. They can be buried or installed in a tube as well as outdoors. They are can also be used for street lighting, power supply of buildings, ship installations and generator installations. Lastly, these cables can withstand damp conditions including total immersion in water.

    Standard and Approval

    IEC 60502-1

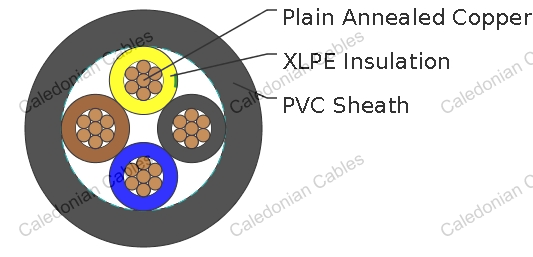

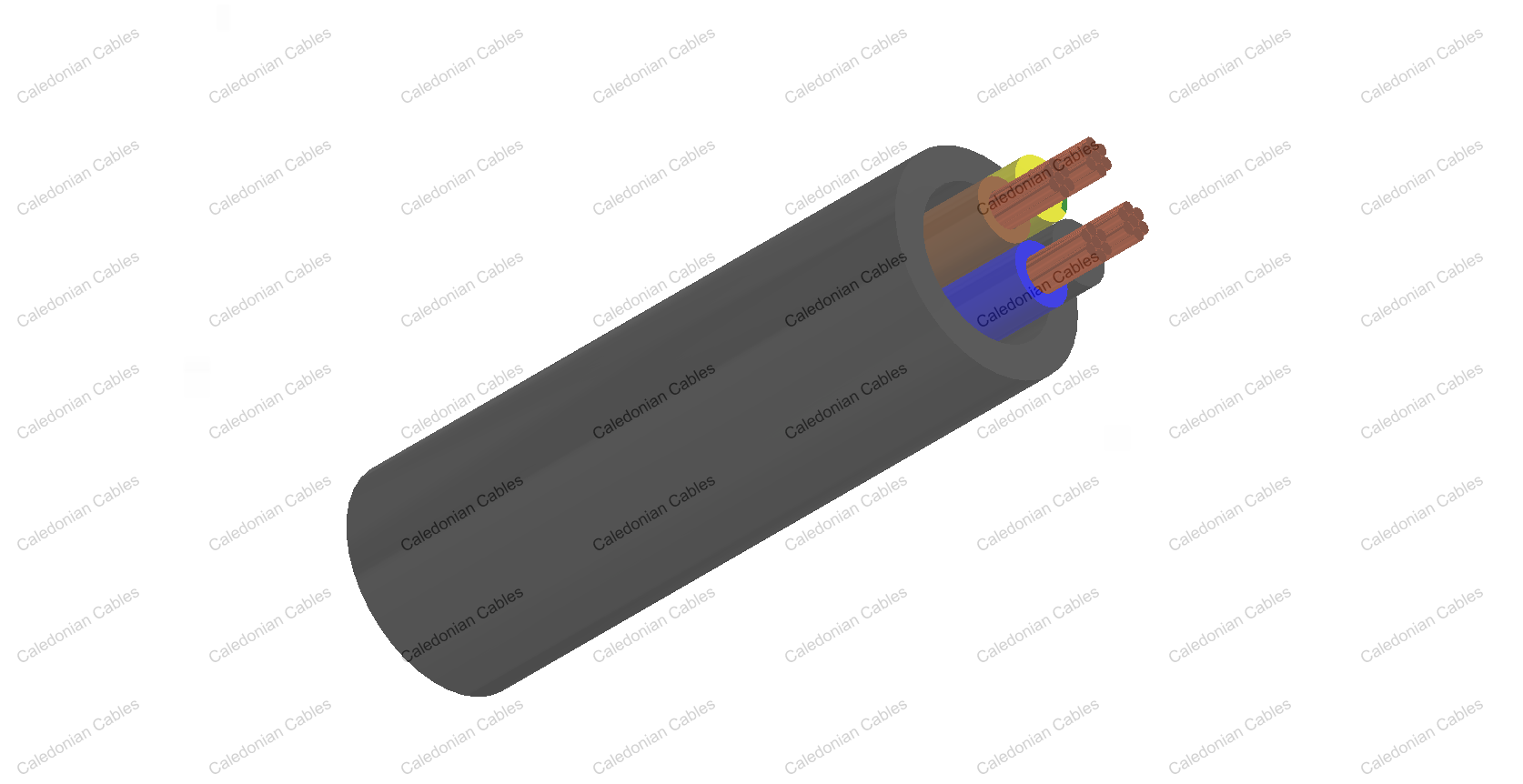

    Cable Construction

    Flexible plain copper strands

    Strands to VDE-0295 Class-5, NP 2363 Class-5

    XLPE (Cross-Linked Polyethylene) insulation to IEC60502

    Color coded to HD 308

    Flexible PVC (Polyvinyl Chloride) jacket

    Technical Characteristics

    Voltage Rating 600/1000V
    Temperature Rating -15°C to +90°C
    Minimum Bending Radius 5 x overall diameter
    Flame retardant IEC 60332.1
    Insulation resistance 1000 MΩ x km

    Cable Parameter

    No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Weight
    # x mm² mm mm mm kg/km
    1 x 2.5 0.7 1.4 6.2 54
    1 x 4.0 0.7 1.4 6.7 70
    1 x 6.0 0.7 1.4 7.3 90
    1 x 10.0 0.7 1.4 8.2 133
    1 x 16.0 0.7 1.4 9.2 189
    1 x 25.0 0.9 1.4 11 284
    1 x 35.0 0.9 1.4 12.1 381
    1 x 50.0 1 1.4 13.8 517
    1 x 70.0 1.1 1.4 15.7 712
    1 x 95.0 1.1 1.5 17.6 923
    1 x 120.0 1.2 1.5 19.2 1165
    1 x 150.0 1.4 1.6 21.5 1446
    1 x 185.0 1.6 1.7 23.9 1748
    1 x 240.0 1.7 1.8 26.9 2280
    1 x 300.0 1.8 1.8 29.6 2829
    1 x 400.0 2 2.0 33.8 3731
    1 x 500.0 2.2 2.2 37.4 4776
    1 x 630.0 2.4 2.4 42.7 6276
    2 x 1.5 0.7 1.8 8.2 90
    2 x 2.5 0.7 1.8 9.2 120
    2 x 4.0 0.7 1.8 10.3 161
    2 x 6.0 0.7 1.8 11.3 211
    2 x 10.0 0.7 1.8 13.2 316
    2 x 16.0 0.7 1.8 14.9 450
    3 x 1.5 0.7 1.8 8.9 108
    3 x 2.5 0.7 1.8 9.8 144
    3 x 4.0 0.7 1.8 11 198
    3 x 6.0 0.7 1.8 12.1 263
    3 x 10.0 0.7 1.8 14.3 405
    3 x 16.0 0.7 1.8 16.4 593
    3 x 25.0 0.9 1.8 21.3 975
    3 x 35.0 0.9 1.8 24.1 1319
    3 x 50.0 1 1.8 27.8 1812
    3 x 70.0 1.1 1.9 30.8 2463
    4 x 1.5 0.7 1.8 9.7 129
    4 x 2.5 0.7 1.8 10.7 175
    4 x 4.0 0.7 1.8 12 243
    4 x 6.0 0.7 1.8 13.4 328
    4 x 10.0 0.7 1.8 15.7 505
    4 x 16.0 0.7 1.8 18.2 749
    4 x 25.0 0.9 1.8 24.1 1245
    4 x 35.0 0.9 1.8 26.3 1671
    4 x 50.0 1 1.8 31.3 2313
    4 x 70.0 1.1 2.0 36.1 3204
    4 x 95.0 1.1 2.2 40.2 4126
    4 x 120.0 1.2 2.4 44.6 5245
    4 x 150.0 1.4 2.6 49.8 6573
    4 x 185.0 1.6 2.8 56.1 8050
    4 x 240.0 1.7 3.0 64.5 10695
    5 x 1.5 0.7 1.8 10.4 153
    5 x 2.5 0.7 1.8 11.6 213
    5 x 4.0 0.7 1.8 13.2 298
    5 x 6.0 0.7 1.8 14.7 403
    5 x 10.0 0.7 1.8 17.2 624
    5 x 16.0 0.7 1.8 20.2 931
    5 x 25.0 0.9 1.8 25.6 1555
    5 x 35.0 0.9 1.8 29.3 2076
    5 x 50.0 1 2.0 34.5 2878
