    VV/VVR

    Application and Description

    For exposed fix installation in dry location, surface wiring, concealed wiring in wooden partition or above ceiling, embedded in plaster

    Name Code

    V : Polyvinyl chloride (PVC)

    V : Polyvinyl chloride (PVC)

    R : Round type

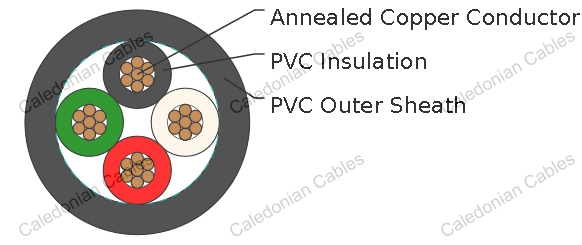

    Cable Construction

    Conductor solid, circular stranded, circuar or segmental compacted stranded annealed copper wires
    Insulation Polyvinyl chloride (PVC)
    Color 1 core- Black
    2 cores- Black and white
    3 cores- Black, white and red
    4 cores- Black, white, red and green
    Filler Non-hygroscopic material(optional)
    Binding tape Polyester (Mylar) tape (optional)
    Sheath Polyvinyl chloride (PVC), Black colorr, other colors are upon request

    Technical Characteristics

    Maximum conductor temperature : 70ºC

    Circuit voltage not exceeding : 600 volts

    Cable Parameter

    Diameter /Nominal sectional area No. of wire Diameter of Conductor (approx.) Thickness of insulation Thickness of sheath Overall diameter (approx.) Maximum DC. resistance of Cdr. at 20ºC Test Voltage Insulation Resistance Cable weight (approx.)
    mm /mm² mm mm mm mm Ohm / km V kOhm / km kg/km
    1 core
    1 solid 1.0 0.8 1.5 5.6 22.8 1500 50 41
    1.2 solid 1.2 0.8 1.5 5.8 15.8 1500 50 46
    1.6 solid 1.6 0.8 1.5 6.2 8.92 1500 50 60
    2.0 solid 2.0 0.8 1.5 6.6 5.65 1500 50 75
    2.6 solid 2.6 1 1.5 7.6 3.35 1500 50 105
    3.2 solid 3.2 1.2 1.5 8.6 2.21 1500 50 145
    2 7/0.6 1.8 0.8 1.5 6.4 9.24 1500 50 65
    3.5 7/O.8 2.4 0.8 1.5 7.0 5.20 1500 50 85
    5.5 7/1.0 3.0 0.8 1.5 8.0 3.33 1500 50 115
    8 7/1.2 3.6 1.2 1.5 9.0 2.31 1500 50 155
    8 compacted 3.4 1.2 1.5 8.8 2.29 1500 50 150
    14 7/1.6 4.8 1.4 1.5 11.0 1.3 2000 40 235
    14 compacted 4.4 1.4 1.5 10.5 1.31 2000 40 225
    22 7/2.0 6.0 1.6 1.5 12.5 0.824 2000 40 335
    22 compacted 5.5 1.6 1.5 12.0 0.832 2000 40 320
    38 7/2.6 7.8 1.8 1.5 14.5 0.847 2500 40 515
    38 19/1.6 8.0 1.8 1.5 15.0 0.479 2500 40 520
    38 compacted 7.3 1.8 1.5 14.0 0.481 2500 40 510
    60 19/2.0 10.0 1.8 1.5 17.0 0.303 2500 30 750
    60 compacted 9.3 1.8 1.5 16.0 0.305 2500 30 735
    100 19/2.6 13.0 2.0 1.5 20 0.180 2500 30 1200
    100 compacted 12 2.0 1.5 19.0 0.183 2500 30 1 160
    150 37/2.3 16.1 2.2 1.6 24 0.118 3000 20 1760
    150 compacted 14.7 2.2 1.6 23 0.122 3000 30 1690
    200 37/2.6 18.2 2.4 1.7 21 0.0922 3000 20 2220
    200 compacted 17 2.4 1.7 26 0、091 5 3000 20 2220
    250 61/2.3 20.7 2.4 1.8 30 0.0722 3000 20 2830
    250 compacted 19.0 2.4 1.8 28 0.0739 3000 20 2740
    325 61/2.6 23.4 2.6 1.9 33 0.0565 3000 20 3580
    325 compacted 22 2.6 1.9 31 0.0568 3000 20 3520
    400 61/2.9 26.1 2.6 2.1 36 0.0454 3000 20 4390
    400 compacted 24.1 2.6 2 34 0.0462 3000 20 4280
    500 61/3.2 28.8 2.8 2.2 39 0.0373 3500 20 5320
    500 compacted 26.9 2.8 2.1 37 0.0369 3500 20 5310
    600 91/2.9 31.9 3.0 2.3 43 0.0304 3500 20 6 470
    600 compacted 29.5 3.0 2.2 40 0.0308 3500 20 6340
    800 127/2.8 36.4 3.2 2.5 48 0.0234 3500 20 8340
    800 compacted 34.0 3.2 2.4 46 0.0231 3500 20 8360
    800 segmental 34 3.2 2.4 46 0.0231 3500 20 8350
    1000 127/3.2 41.6 3.2 2.7 54 0.0179 3500 20 10800
    1000 compacted 38.0 3.2 2.6 50 0.0185 3500 20 10500
    1000 segmental 38.0 3.2 2.6 51 0 0181 3500 20 10400
    2 cores
    1 solid 1.0 0.8 1.5 8.7 23.3 1500 50 85
    1.2 solid 1.2 0.8 1.5 9.1 16.1 1500 50 95
    1.6 solid 1.6 0.8 1.5 9.9 9.10 1500 50 120
    2.0 solid 2.0 0.8 1.5 11 5.76 1500 50 155
    2.6 solid 2.6 1 1.5 13.0 3.42 1500 50 225
    3.2 solid 3.2 1.2 1.5 15.0 2.25 1500 50 315
    2 7/0.6 1.8 0.8 1.5 10.5 9.42 1500 50 130
    3.5 7/O.8 2.4 0.8 1.5 11.5 5.30 1500 50 175
    5.5 7/1.0 3.0 1 1.5 13.5 3.40 1500 50 245
    8 7/1.2 3.6 1.2 1.5 15.5 2.36 1500 50 335
    8 compacted 3.4 1.3 1.5 15.5 2.34 2000 50 325
    14 7/1.6 4.8 1.4 1.5 19.0 1.33 2000 40 520
    14 compacted 4.4 1.5 1.5 18.0 1.34 2000 40 500
    22 7/2.0 6.0 1.6 1.6 23 0.840 2000 40 760
    22 compacted 5.5 1.7 1.5 21 0.849 2000 40 715
    38 7/2.6 7.8 1.8 1.7 27 0.497 2500 40 1 190
    38 19/1.6 8.0 1.8 1.8 28 0.489 2500 40 1200
    38 compacted 7.3 1.8 1.9 26 0.491 2500 40 1 160
    60 19/2.0 10.0 1.8 1.9 32 0.309 2500 30 1740
    60 compacted 9.3 1.8 1.9 31 0.311 2500 30 1680
    100 19/2.6 13.0 2.0 2.2 39 0.184 2500 30 2800
    100 compacted 12.0 2.0 2.1 37 0.187 2500 30 2670
    150 37/2.3 16.1 2.2 2.5 47 0.129 3000 20 4 120
    150 compacted 14.7 2.2 2.3 44 0.124 3000 30 3870
    200 37/2.6 18.2 2.4 2.7 52 0.0940 3000 20 5 1、
    200 compacted 17.0 2.4 2.6 50 0.0933 3000 20 5090
    250 61/2.3 20.7 2.4 2 9 58 0.0736 3000 20 6570
    250 compacted 19、0 2.4 2.7 54 0.0736 3000 20 6250
    325 61/2.6 23.4 2.6 3.1 64 0.0576 3000 20 8300
    325 compacted 21.7 2.6 3.0 61 0、0579 3000 20 8040
    3 cores
    1 solid 1.0 0.8 1.5 9.1 23.3 1500 50 100
    1.2 solid 1.2 0.8 1.5 9.5 16.1 1500 50 115
    1.6 solid 1.6 0.8 1.5 10.5 9.10 1500 50 150
    2.0 solid 2.0 0.8 1.5 11.5 5.76 1500 50 195
    2.6 solid 2.6 1 1.5 13.5 3.42 1500 50 290
    3.2 solid 3.2 1.2 1.5 16.0 2.25 1500 50 410
    2 7/0.6 1.8 0.8 1.5 1l.0 9.42 1500 50 160
    3.5 7/O.8 2.4 0.8 1.5 12.5 5.30 1500 50 220
    5.5 7/1.0 3.0 1 1.5 14.5 3.40 1500 50 320
    8 7/1.2 3.6 1.2 1.5 16.5 2.36 1500 50 440
    8 compacted 3.4 1.3 1.5 16.0 2.34 2000 50 425
    14 7/1.6 4.8 1.4 1.5 20 1.33 2000 40 690
    14 compacted 4.4 1.5 1.5 19.0 1.34 2000 40 665
    22 7/2.0 6.0 1.6 1.6 24 0.840 2000 40 1020
    22 compacted 5.5 1.7 1.6 23 0.849 2000 40 975
    38 7/2.6 7.8 1.8 1.8 29 0.497 2500 40 1620
    38 19/1.6 8.0 1.8 1.8 30 0.489 2500 40 1640
    38 compacted 7.3 1.8 1.8 28 0.491 2500 40 1590
    60 19/2.0 10.0 1.8 2.0 34 0.309 2500 30 2400
    60 compacted 9.3 1.8 1.9 33 0.311 2500 30 2320
    100 19/2.6 13.0 2.0 2.3 42 0.184 2500 30 3870
    100 compacted 12.0 2.0 2.2 40 0.187 2500 30 3720
    150 37/2.3 16.1 2.2 2.6 50 0.120 3000 20 5720
    150 compacted 14.7 2.2 2.5 47 0.124 3000 30 5430
    200 37/2.6 18.2 2.4 2.8 56 0.124 3000 20 7220
    200 compacted 17.0 2.4 2.7 53 O.0933 3000 20 7130
    250 61/2.3 20.7 2.4 3.0 62 0.0736 3000 20 9160
    250 compacted 19、0 2.4 2.9 58 0.0754 3000 20 8800
    325 61/2.6 23.4 2.6 3.3 69 0.0576 3000 20 11700
    325 compacted 21.7 2.6 3.1 65 0.0579 3000 20 11300
    4cores
    1 solid 1.0 0.8 1.5 9.8 23.3 1500 50 120
    1.2 solid 1.2 0.8 1.5 10.5 16.1 1500 50 140
    1.6 solid 1.6 0.8 1.5 11.5 9.10 1500 50 185
    2.0 solid 2.0 0.8 1.5 12.5 5.76 1500 50 240
    2.6 solid 2.6 1 1.5 15.0 3.42 1500 50 365
    3.2 solid 3.2 1.2 1.5 17.0 2.25 1500 50 515
    2 7/0.6 1.8 0.8 1.5 12.0 9.42 1500 50 195
    3.5 7/O.8 2.4 0.8 1.5 13.5 5:30 1500 50 275
    5.5 7/1.0 3.0 1 1.5 16.0 3.40 1500 50 400
    8 7/1.2 3.6 1.2 1.5 18.0 2.36 1500 50 555
    8 compacted 3.4 1.3 1.5 17.5 2.34 2000 50 535
    14 7/1.6 4.8 1.4 1.6 22 1.33 2000 40 890
    14 compacted 4.4 1.5 1.5 21 1.34 2000 40 855
    22 7/2.0 6.0 1.6 1.7 27 0.840 2000 40 1320
    22 compacted 5.5 1.7 1.7 25 0.849 2000 40 1260
    38 7/2.6 7.8 1.8 1.9 32 0.497 2500 40 2100
    38 19/1.6 8.0 1.8 1.9 33 0.489 2500 40 2120
    38 compacted 7.3 1.8 1.9 31 0.491 2500 40 2060
    60 19/2.0 10.0 1.8 2.1 38 0.309 2500 30 3120
    60 compacted 9.3 1.8 2.1 36 0.311 2500 30 3030
    100 19/2.6 13.0 2.0 2.5 47 0.184 2500 30 5060
    100 compacted 12.0 2.0 2.4 44 0.187 2500 30 4870
    150 37/2.3 16.1 2.2 2.8 56 0.120 3000 20 7480
    150 compacted 14.7 2.2 2.7 52 0.124 3000 30 7110
    200 37/2.6 18.2 2.4 3.0 62 0.0940 3000 20 9440
    200 compacted 17.0 2.4 2.9 59 0.0933 3000 20 9330
    250 61/2.3 20.7 2.4 3.3 69 0.0736 3000 20 12100
    250 compacted 19、0 2.4 3.1 65 0.0754 3000 20 11600
    325 61/2.6 23.4 2.6 3.6 17 0.0576 3000 20 15300
    325 compacted 21.7 2.6 3.4 73 0.0579 3000 20 14900
