    EV/CV

    Application and Description

    For general purpose power distribution in wet or dry locations, installed in air, in conduit or duct, or directly buried.

    Name Code

    E : Polyethylene

    C : Cross-linked polyethylene

    V : Vinyl

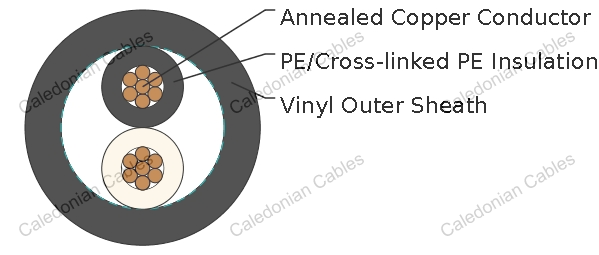

    Cable Construction

    Conductor Circular, circuar or segmental compacted stranded annealed copper wires
    Seperator A proper separator may be applied to a conductor
    Insulation Polyethylene/Cross-linked polyethylene
    Color 2 cores- Black and white
    3 cores- Black, white and red
    4 cores- Black, white, red and green4
    Filler Non-hygroscopic material(optional)
    Binding tape Polyester (Mylar) tape (optional)
    Sheath Vinyl, Black color

    Technical Characteristics

    Maximum conductor temperature : 90ºC

    Circuit voltage not exceeding : 600 volts

    Cable Parameter

    No. of cores Nominal sectional area No. of wire Diameter of Conductor (approx.) Thickness of insulation Thickness of sheath Overall diameter (approx.) Maximum DC. resistance of Cdr. at 20ºC Test Voltage Cable weight (approx.)
    mm² mm mm mm mm Ohm / km V kg/km
    1 2 7/0.6 1.8 0.8 1.5 6.4 9.24 1500 60
    3.5 7/0.8 2.4 0.8 1.5 7 5.2 1500 80
    5.5 7/1.0 3 1 1.5 8 3.33 1500 115
    8 7/1.2 3.6 1 1.5 8.6 2.31 1500 135
    8 compacted 3.4 1 1.5 8.4 2.29 1500 135
    14 7/1.6 4.8 1 1.5 9.8 1.31 2000 205
    14 compacted 4.4 1 1.5 9.4 1.3 2000 200
    22 7/2.0 6 1.2 1.5 11.5 0.824 2000 300
    22 compacted 5.5 1.2 1.5 11 0.832 2000 290
    38 7/2.6 7.8 1.2 1.5 13.5 0.487 2500 460
    38 compacted 7.3 1.2 1.5 13 0.481 2500 455
    60 19/2.0 10 1.5 1.5 16 0.303 2500 700
    60 compacted 9.3 1.5 1.5 15.5 0.305 2500 685
    100 19/2.6 13 2 1.5 20 0.18 2500 1150
    100 compacted 12 2 1.5 19 0.183 2500 1120
    150 37/2.3 16.1 2 1.5 24.5 0.118 3000 1680
    150 compacted 14.7 2 1.5 22.5 0.122 3000 1600
    200 37/2.6 18.2 2.5 1.7 27.5 0.0922 3000 2150
    200 compacted 17 2.5 1.7 26.5 0.0915 3000 2150
    250 61/2.3 20.7 2.5 1.8 30 0.0722 3000 2740
    250 compacted 19 2.5 1.8 28.5 0.0739 3000 2670
    325 61/2.6 23.4 2.5 1.9 33.5 0.0565 3000 3450
    325 compacted 21.7 2.5 1.9 31.5 0.0568 3000 3410
    400 61/2.9 26.1 2.5 2 34.5 0.0373 3000 4230
    400 compacted 24.1 2.5 2 34.5 0.0369 3000 4160
    500 61/3.2 28.8 3 2.1 40 0.0304 3500 5190
    1 500 compacted 26.9 3 2.1 43 0.0308 3500 5090
    600 91/2.9 31.9 3 2.3 41 0.0369 3500 6280
    600 compacted 29.5 3 2.2 38.5 0.0369 3500 6170
    800 127/2.8 36.4 3.5 2.5 49 0.0234 3500 8160
    800 compacted 34 3.5 2.5 47.5 0.0231 3500 8220
    800 segmental 34 3.5 2.5 47.5 0.0231 3500 8220
    1000 127/3.2 41.6 3.5 2.6 54 0.0179 3500 10600
    1000 compacted 38 3.5 2.6 51.5 0.0185 3500 10200
    1000 segmental 38 3.5 2.6 51.5 0.0187 3500 10300
    2 2 7/0.6 1.8 0.8 1.5 10.5 9.42 1500 120
    3.5 7/0.8 2.4 0.8 1.5 11.5 5.3 1500 165
    5.5 7/1.0 3 1 1.5 13.5 3.4 1500 235
    8 7/1.2 3.6 1 1.5 15 2.36 1500 300
    8 compacted 3.4 1 1.5 14.5 2.34 1500 290
    14 7/1.6 4.8 1 1.5 17.5 1.33 2000 450
    14 compactcd 4.4 1 1.5 16.5 1.34 2000 435
    22 7/2.0 6 1.2 1.5 21 0.84 2000 660
    22 compacted 5.5 1.2 1.5 19.5 0.849 2000 635
    38 7/2.6 7.8 1.2 1.5 24 0.497 2500 1030
    38 compacted 7.3 1.2 1.5 24 0.491 2500 1020
    60 19/2.0 10 1.5 1.5 31 0.309 2500 1620
    60 compacted 9.3 1.5 1.5 29 0.311 2500 1570
    100 19/2.6 13 2 1.5 39 0.184 2500 2690
    100 compacted 12 2 1.5 37 0.187 2500 2580
    150 37/2.3 16.1 2 1.5 46 0.124 3000 3920
    150 compacted 14.7 2 1.5 43 0.12 3000 3710
    200 37/2.6 18.2 2.5 1.7 53 0.094 3000 5060
    200 compacted 17 2.5 1.7 50 0.0933 3000 4980
    250 61/2.3 20.7 2.5 1.8 58 0.0736 3000 6420
    250 compacted 19 2.5 1.8 54 0.0754 3000 6140
    325 61/2.6 23.4 2.5 1.9 64 0.0576 3000 8040
    325 compacted 21.7 2.5 1.9 60 0.0579 3000 7820
    3 2 7/0.6 1.8 0.8 1.5 11 9.42 1500 150
    3.5 7/0.8 2.4 0.8 1.5 12.5 5.3 1500 210
    5.5 7/1.0 3 1 1.5 14.5 3.4 1500 300
    8 7/1.2 3.6 1 1.5 16 2.36 1500 385
    8 compacted 3.4 1 1.5 15.5 2.34 1500 380
    14 7/1.6 4.8 1 1.5 18.5 1.33 2000 600
    14 compactcd 4.4 1 1.5 17.5 1.34 2000 585
    22 7/2.0 6 1.2 1.5 22 0.84 2000 890
    22 compacted 5.5 1.2 1.5 21 0.849 2000 860
    38 7/2.6 7.8 1.2 1.5 26 0.497 2500 1410
    38 compacted 7.3 1.2 1.5 25 0.491 2500 1410
    60 19/2.0 10 1.5 1.5 33 0.309 2500 2220
    60 compacted 9.3 1.5 1.5 31 0.311 2500 2170
    100 19/2.6 13 2 1.5 42 0.184 2500 3710
    100 compacted 12 2 1.5 40 0.187 2500 3580
    150 37/2.3 16.1 2 1.5 49 0.124 3000 5440
    150 compacted 14.7 2 1.5 46 0.12 3000 5180
    200 37/2.6 18.2 2.5 1.7 57 0.094 3000 7071
    200 compacted 17 2.5 1.7 54 0.0933 3000 6940
    250 61/2.3 20.7 2.5 1.8 62 0.0736 3000 8940
    250 compacted 19 2.5 1.8 58 0.0754 3000 8600
    325 61/2.6 23.4 2.5 1.9 94 0.0576 3000 11300
    325 compacted 21.7 2.5 1.9 65 0.0579 3000 11000
    4 2.5 7/0.6 1.8 0.8 1.5 12 9.42 1500 180
    3.5 7/0.8 2.4 0.8 1.5 13.5 5.3 1500 260
    5.5 7/1.0 3 1 1.5 16 3.4 1500 370
    8 7/1.2 3.6 1 1.5 17 2.36 1500 485
    8 compacted 3.4 1 1.5 16.5 2.34 1500 480
    14 7/1.6 4.8 1 1.5 20 1.33 2000 765
    14 compactcd 4.4 1 1.5 19 1.34 2000 745
    22 7/2.0 6 1.2 1.5 24 0.84 2000 1160
    22 compacted 5.5 1.2 1.5 23 0.849 2000 1120
    38 7/2.6 7.8 1.2 1.5 29 0.497 2500 I840

    4

    38 compacted 7.3 1.2 1.5 28 0.491 2500 I830
    60 19/2.0 10 1.5 1.5 37 0.309 2500 2890
    60 compacted 9.3 1.5 1.5 35 0.311 2500 2830
    100 19/2.6 13 2 1.5 47 0.184 2500 4840
    100 compacted 12 2 1.5 44 0.187 2500 4680
    150 37/2.3 16.1 2 1.5 55 0.124 3000 7120
    150 compacted 14.7 2 1.5 SI 0.12 3000 6790
    200 37/2.6 18.2 2.5 1.7 63 0.094 3000 9170
    200 compacted 17 2.5 1.7 60 0.0933 3000 9100
    250 61/2.3 20.7 2.5 1.8 70 0.0736 3000 11700
    250 compacted 19 2.5 1.8 65 0.0754 3000 11300
    325 61/2.6 23.4 2.5 1.9 77 0.0576 3000 14800
    325 compacted 21.7 2.5 1.9 72 0.0579 3000 14500
