    EEF/F(EM-EEF) CEF/F(EM-CEF)

    Application and Description

    For general purpose power distribution in wet or dry locations, installed in air, in conduit or duct, or directly buried.

    Name Code

    E : Polyethylene

    C : Cross-linked polyethylene

    F : Flat type

    F : Flame retardant polyethylene

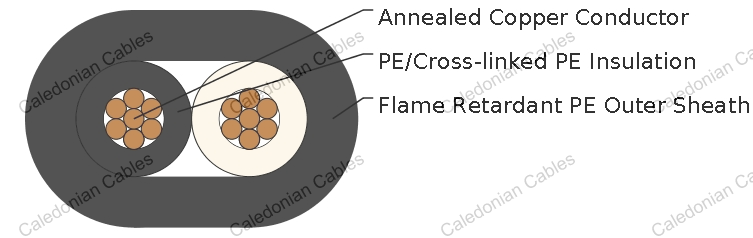

    Cable Construction

    Conductor Solid or circuar stranded annealed copper wires
    Seperator A proper separator may be applied to a conductor
    Insulation Polyethylene/Cross-linked polyethylene
    Color 2 cores- Black and white
    3 cores- Black, white and red
    Filler Non-hygroscopic material(optional)
    Binding tape Polyester (Mylar) tape (optional)
    Sheath Flame retardant polyethylene, Black color

    Technical Characteristics

    Maximum conductor temperature : 90ºC

    Circuit voltage not exceeding : 600 volts

    Cable Parameter

    No. of cores Nominal sectional area No. of wire Diameter of Conductor (approx.) Thickness of insulation Thickness of sheath Overall diameter (approx.) Test Voltage Maximum DC. resistance of Cdr. at 20ºC Cable weight (approx.)
    mm² mm mm mm mm V Ohm / km kg/km
    2 1.6 Solid 1.6 0.8 1.5 6.2x9.4 8.92 1500 95
    2 Solid 2 0.8 1.5 6.6x10.5 5.65 1500 120
    2.6 Solid 2.6 1 1.5 7.6 x12.5 3.35 1500 180
    3.2 Solid 3.2 1 1.5 8.2x13.5 2.21 1500 240
    2 7/0.6 l.8 0.8 1.5 6.4 x9.8 9.24 1500 100
    3.5 7/0.8 2.4 0.8 1.5 7.0x1 1.0 5.2 1500 140
    5.5 7/ 1.0 3 1 1.5 8.0xI3.0 3.33 1500 195
    8 7/1.2 3.6 1 1.5 8.6 x14.5 2.31 1500 250
    3 1.6 Solid 1.6 0.8 1.5 6.2 x13.0 8.92 1500 135
    2 Solid 2 0.8 1.5 6.6x14.0 5.65 1500 175
    2.6 Solid 2.6 1 1.5 7.6x17.0 3.35 1500 265
    3.2 Solid 3.2 1 1.5 8.2 x19 2.21 1500 355
    2 7/0.6 l.8 0.8 1.5 6.4 x13.5 9.24 1500 140
    3.5 7/0.8 2.4 0.8 1.5 7.0x15.0 5.2 1500 200
    5.5 7/ 1.0 3 1 1.5 8.0x18.0 3.33 1500 285
    8 7/1.2 3.6 1 1.5 8.6x20 2.31 1500 370
